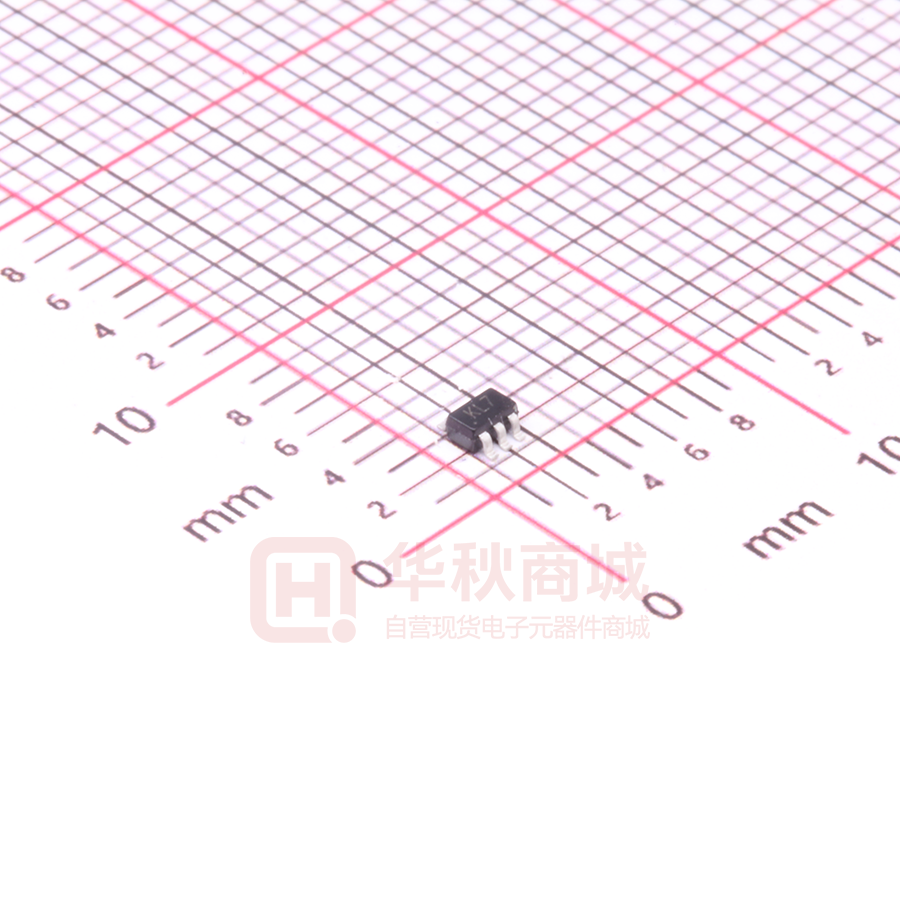

BAT54CDW

Plastic-Encapsulate Diodes SCHOTTKY BARRIER DIODE ARRAYS SOT-363 FEATURES      Low Forward Voltage Drop Fast Switching Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Available in Lead Free Version MARKING: BAT54ADW BAT54BRW BAT54DW BAT54JW BAT54ADW BAT54DW BAT54BRW BAT54CDW BAT54CDW BAT54SDW BAT54SDW BAT54TW BAT54TW BAT54JW Solid dot = Green molding compound device,if none, the normal device. Solid dot = Pin1 indicate. 1 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. ELECTRICAL CHARACTERISTICS MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Parameter VRRM Repetitive Peak Reverse Voltage VRWM Peak Working Reverse Voltage Value Unit 30 V mA VR DC Blocking Voltage IO Forward Continuous Current 200 IFRM Repetitive Peak Forward Current 300 IFSM Non-repetitive Peak Forward Surge Current @t=8.3ms 600 PD Power Dissipation 200 mW Thermal Resistance From Junction To Ambient 500 ℃/W Tj Junction Temperature 125 ℃ Tstg Storage Temperature -55~+150 ℃ RΘJA mA ELECTRICAL CHARACTERISTICS (Ta =25 ℃ unless otherwise specified) Parameter Symbol Reverse voltage V(BR) Reverse current IR Forward voltage VF Total capacitance Ctot Reverse recovery time trr Test conditions IR=100μA Min Typ Max 30 Unit V VR=25V 2 IF=1mA 320 IF=10mA 400 IF=30mA 500 IF=100mA 1000 μA mV VR=1V,f=1MHz 10 pF IF= IR=10mA, Irr=0.1×IR, RL=100Ω 5 ns 2 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. Typical Characteristics Forward 100 Characteristics Reverse 100 Pulsed Characteristics Pulsed 1 0 REVERSE CURRENT IR 10 T= a 2 5℃ =1 00 ℃ a T FORWARD CURRENT IF (uA) (mA) Ta=100 ℃ 200 400 FORWARD VOLTAGE VF 1 Ta=25 ℃ 0.1 600 0 10 (mV) 20 VR REVERSE VOLTAGE Capacitance Characteristics 20 10 30 (V) Power Derating Curve 250 Ta=25℃ (mW) PD 15 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 10 5 0 0 5 10 REVERSE VOLTAGE 15 VR 200 150 100 50 0 20 0 25 50 AMBIENT TEMPERATURE (V) 75 100 Ta (℃ ) 3 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. 125 SOT-363 Package Outline Dimensions 4 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.
