NPN Silicon Epitaxial Planar Transistor
for microwave low noise amplifier at VHF,
UHF and CATV band
The transistor is subdivided into three
groups, Q, R and S, according to its DC
current gain.
HFE
MARKING
Q
R23
R
R24
S
R25
1.Base 2.Emitter 3.Collector

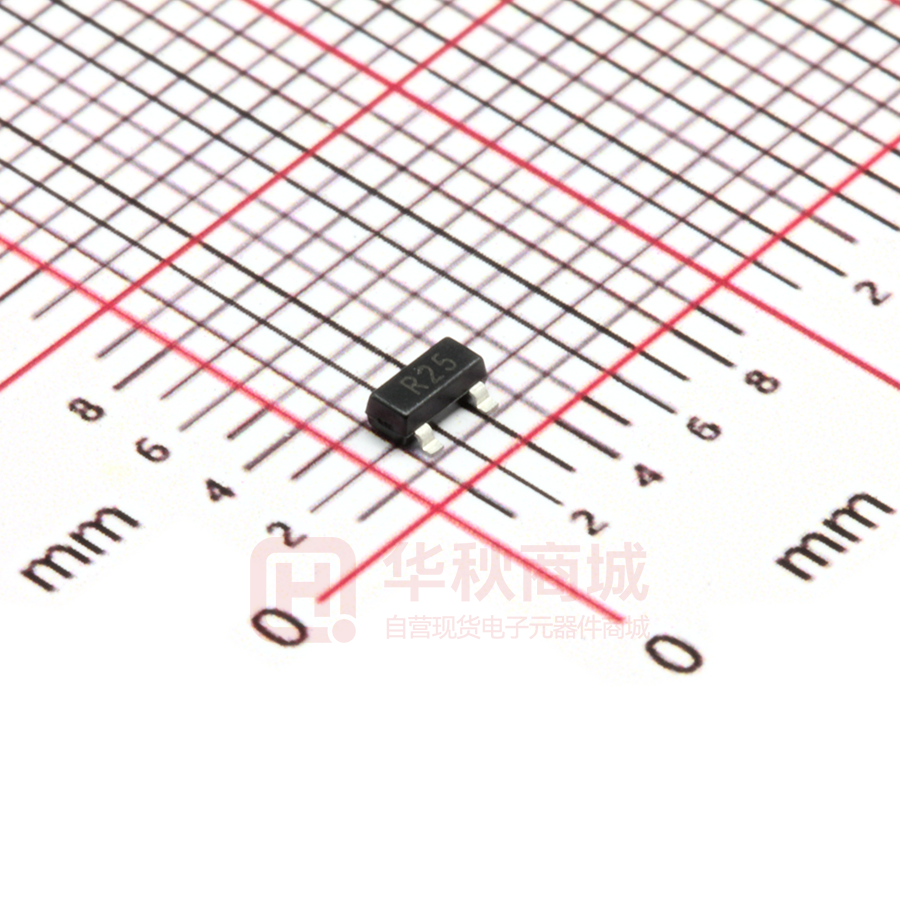

SOT-23 Plastic Package
Absolute Maximum Ratings (Ta = 25 C)
O
Symbol
Value
Unit
Collector Base Voltage
VCBO
20
V
Collector Emitter Voltage
VCEO
12
V
Emitter Base Voltage
VEBO
3
V
Collector Current
IC
100
mA
Power Dissipation
Ptot
200
mW
Junction Temperature
Tj
150
O
C
Storage Temperature Range
TS
- 65 to + 150
O
C
Parameter
Characteristics (Ta = 25 C)
O
Parameter
Symbol
Min.
Typ.
Max.
Unit
hFE
hFE
hFE
50
80
125
-
100
160
250
-
Collector Cutoff Current
at VCB = 10 V
ICBO
-
-
1
µA
Emitter Cutoff Current
at VEB = 1 V
IEBO
-
-
1
µA
Gain Bandwidth Product
at VCE = 10 V, IC = 20 mA
fT
-
3
-
GHz
Feed-Back Capacitance
at VCB = 10 V, f = 1 MHz
Cre1)
-
0.55
1
pF
Noise Figure
at VCE = 10 V, IC = 7 mA, f = 1 GHz
NF
-
1.1
2
dB
DC Current Gain
at VCE = 10 V, IC = 20 mA
Current Gain Group
Q
R
S
1) The emitter terminal and the case shall be connected to the guard terminal of the three-terminal capacitance bridge.
1 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
2 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
PACKAGE OUTLINE
Plastic surface mounted package; 3 leads
SOT-23
3 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
