MMBTA55

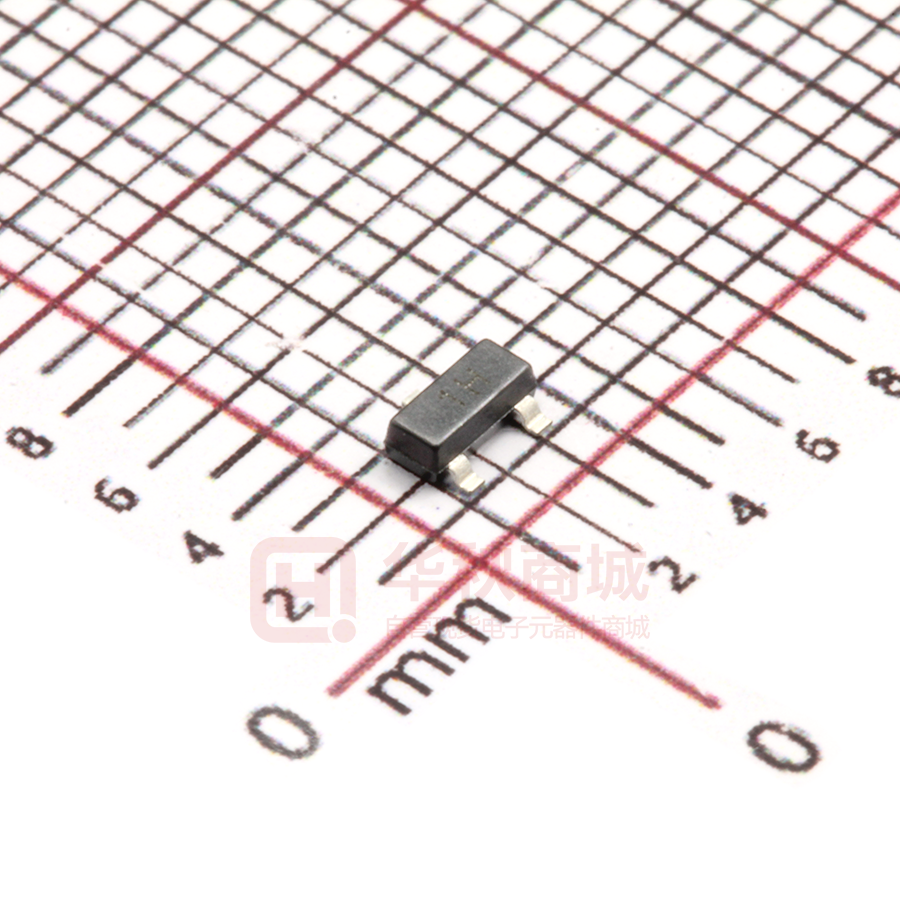

SOT-23 Plastic-Encapsulate Transistors MMBTA55 TRANSISTOR (PNP) FEATURES  Driver Transistors MARKING:1H 1.Base 2.Emitter 3.Collector SOT-23 Plastic Package MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -4 V IC Collector Current -500 mA PC Collector Power Dissipation 225 mW Thermal Resistance From Junction To Ambient 556 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ RΘJA ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=-100µA, IE=0 -60 V Collector-emitter breakdown voltage V(BR)CEO IC=-1mA, IB=0 -60 V Emitter-base breakdown voltage V(BR)EBO IE=-100µA, IC=0 -4 V Collector cut-off current ICBO VCB=-60V, IE=0 -0.1 µA Collector cut-off current ICEO VCE=-60V, IB=0 -0.1 µA hFE(1) VCE=-1V, IC=-10mA 100 hFE(2) VCE=-1V, IC=-100mA 100 VCE(sat) IC=-100mA, IB=-10mA -0.25 V Base-emitter voltage VBE VCE=-1V, IC=-100mA -1.2 V Transition frequency fT DC current gain Collector-emitter saturation voltage VCE=-1V,IC=-100mA, f=100MHz 1 50 400 MHz PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT-23 2
