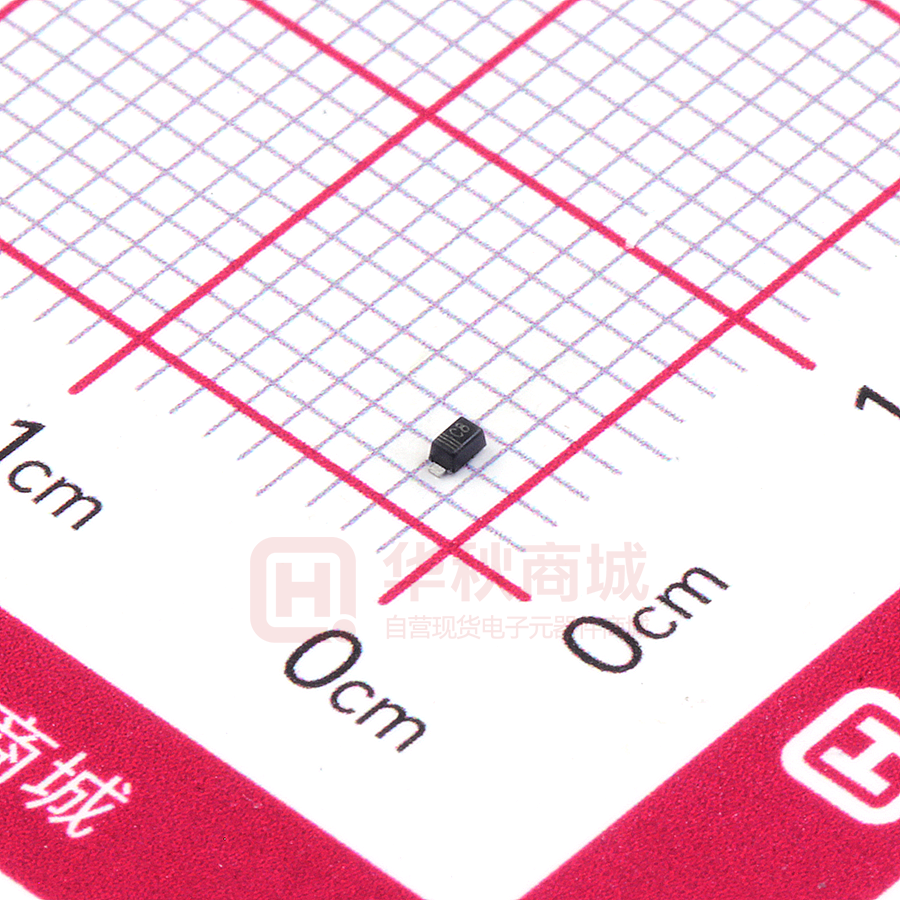

MM5Z3V3

MM5Z2V0~MM5Z75 SILICON PLANAR ZENER DIODES 2 1.Cathode 2.Anode 1 ■ Simplified outline(SOD-523) Absolute Maximum Ratings (Ta = 25 OC) Parameter Total Device Dissipaton Junction and Storage Temperature Range Characteristics at Ta = 25 OC Parameter Forward Voltage at IF = 10 mA Symbol Value Unit Ptot 200 mW Tj , Tstg - 65 to + 150 Symbol Max. Unit VF 0.9 V C O I IF Power Dissipation: Ptot (mW) 300 200 VZ VR IR VF IZT 100 0 0 25 Zener Voltage Regulator 150 100 Ambient Temperature: Ta ( C) O Derating Curve www.slkormicro.com 1 V MM5Z2V0~MM5Z75 Zener Voltage Type Marking Code 1) VZT Zener Impedance Leakage Current at lZT ZZT at lZT ZZK at IZK IR at VR Min. (V) Nom. (V) Max. (V) (mA) Max. (Ω) (mA) Max. (Ω) (mA) Max. (µA) (V) MM5Z2V0 RD 1.8 2.0 2.15 5 100 5 - - 120 0.5 MM5Z2V2 RE 2.08 2.2 2.33 5 100 5 - - 120 0.7 MM5Z2V4 Z7 2.2 2.4 2.6 5 100 5 1000 1 120 1 MM5Z2V7 A8 2.5 2.7 2.9 5 100 5 1000 1 120 1 MM5Z3V0 B8 2.8 3.0 3.2 5 100 5 1000 1 50 1 MM5Z3V3 C8 3.1 3.3 3.5 5 95 5 1000 1 20 1 MM5Z3V6 D8 3.4 3.6 3.8 5 90 5 1000 1 10 1 MM5Z3V9 E8 3.7 3.9 4.1 5 90 5 1000 1 5 1 MM5Z4V3 F8 4 4.3 4.6 5 90 5 1000 1 5 1 MM5Z4V7 G8 4.4 4.7 5 5 80 5 800 1 2 1 MM5Z5V1 H8 4.8 5.1 5.4 5 60 5 500 1 2 1.5 MM5Z5V6 I8 5.2 5.6 6 5 40 5 200 1 1 2.5 MM5Z6V2 J8 5.8 6.2 6.6 5 10 5 100 1 1 3 MM5Z6V8 K8 6.4 6.8 7.2 5 15 5 160 1 0.5 3.5 MM5Z7V5 L8 7 7.5 7.9 5 15 5 160 1 0.5 4 MM5Z8V2 M8 7.7 8.2 8.7 5 15 5 160 1 0.5 5 MM5Z9V1 N8 8.5 9.1 9.6 5 15 5 160 1 0.5 6 MM5Z10 O8 9.4 10 10.6 5 20 5 160 1 0.1 7 MM5Z11 P8 10.4 11 11.6 5 20 5 160 1 0.1 8 MM5Z12 Q8 11.4 12 12.7 5 25 5 80 1 0.1 9 MM5Z13 R8 12.4 13 14.1 5 30 5 80 1 0.1 10 MM5Z15 S8 13.8 15 15.6 5 30 5 80 1 0.1 11 MM5Z16 T8 15.3 16 17.1 2 40 2 80 1 0.1 12 MM5Z18 U8 16.8 18 19.1 2 45 2 80 1 0.1 13 MM5Z20 V8 18.8 20 21.2 2 55 2 100 1 0.1 15 MM5Z22 W8 20.8 22 23.3 2 55 2 100 1 0.1 17 MM5Z24 X8 22.8 24 25.6 2 70 2 120 1 0.1 19 MM5Z27 Y8 25.1 27 28.9 2 80 2 300 1 0.1 21 MM5Z30 Z8 28 30 32 2 80 2 300 1 0.1 23 MM5Z33 A9 31 33 35 2 80 2 300 1 0.1 25 MM5Z36 B9 34 36 38 2 90 2 500 1 0.1 27 MM5Z39 C9 37 39 41 2 130 2 500 1 2 30 MM5Z43 D9 40 43 46 1 150 1 500 1 2 33 MM5Z47 E9 44 47 50 1 170 1 500 1 2 36 MM5Z51 F9 48 51 54 1 180 1 500 1 1 39 MM5Z56 G9 52 56 60 1 200 1 500 1 1 43 MM5Z62 H9 58 62 66 1 215 1 500 1 0.2 47 MM5Z68 I9 64 68 72 1 240 1 500 1 0.2 52 MM5Z75 J9 70 75 79 1 255 1 500 1 0.2 57 1) Tested with pulses tp = 20 ms. www.slkormicro.com 2 MM5Z2V0~MM5Z75 ■ SOD-523 ALL ROUND C A ∠ HE D www.slkormicro.com bp E A UNIT A bp C D E HE V mm 0.70 0.60 0.4 0.3 0.135 0.100 1.25 1.15 0.85 0.75 1.7 1.5 0.1 3 ∠ 5 O
