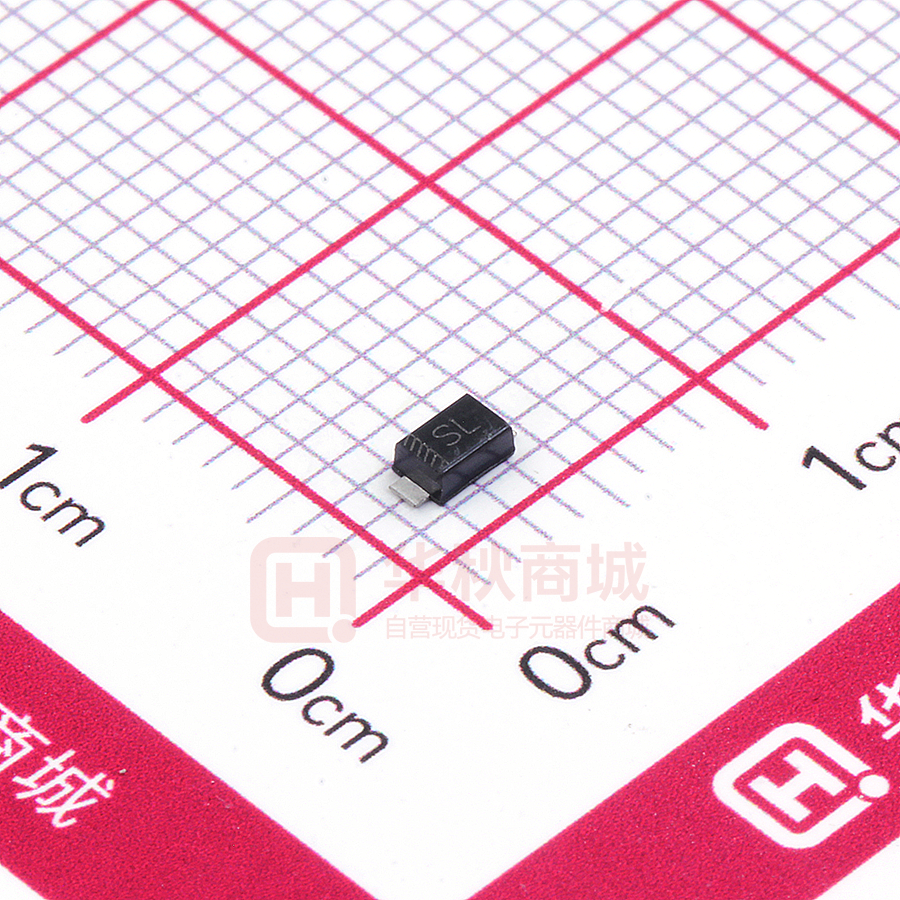

PMEG4010ER

PMEG4010ER 1 A low VF MEGA Schottky barrier rectifier 特 性(FEATURES)： SOD-123FL Extremely low VF. ◆Low power loss/high efficient 2.8±0.1 Use In Low Voltage, High Frequency Inverters. ◆Free 0.10-0.30 ◆For 0．８±0.2 stored change,majority carrier conduction. 1.8± 0.1 ◆Low Cathode Band Top View 1.3± 0.15 ◆ Wheeling, And Polarity Protection Applications. 0.6±0.25 3.7±0.2 Dimensions in millimeters MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Non-Repetitive Peak reverse voltage Symbol VRSM Peak Repetitive Peak Reverse Voltage PMEG4010ER Unit 48 V 40 V VR(RMS) 28 V IO 1 A IFSM 25 A Pd 500 mW RθjA 500 ℃/W Tj,Tstg -65 to +125 VRRM VRWM Working Peak Reverse Voltage VR DC Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Peak Forward Surge Current @=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Storage Temperature www.slkormicro.com 1 ℃ PMEG4010ER ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Parameter Symbol Reverse breakdown voltage V(BR) Reverse voltage leakage current IR Forward voltage VF Diode capacitance CD www.slkormicro.com Test Conditions IR=1mA PMEG4010ER VR=40V PMEG4010ER PMEG4010ER IF=1A IF=3A VR=4V,f=1MHz 2 MIN MAX 40 Unit V 1 mA 0.6 0.9 V 120 pF PMEG4010ER TYPICAL CHARACTERISTICS www.slkormicro.com @ Ta=25℃ unless otherwise specified 3
