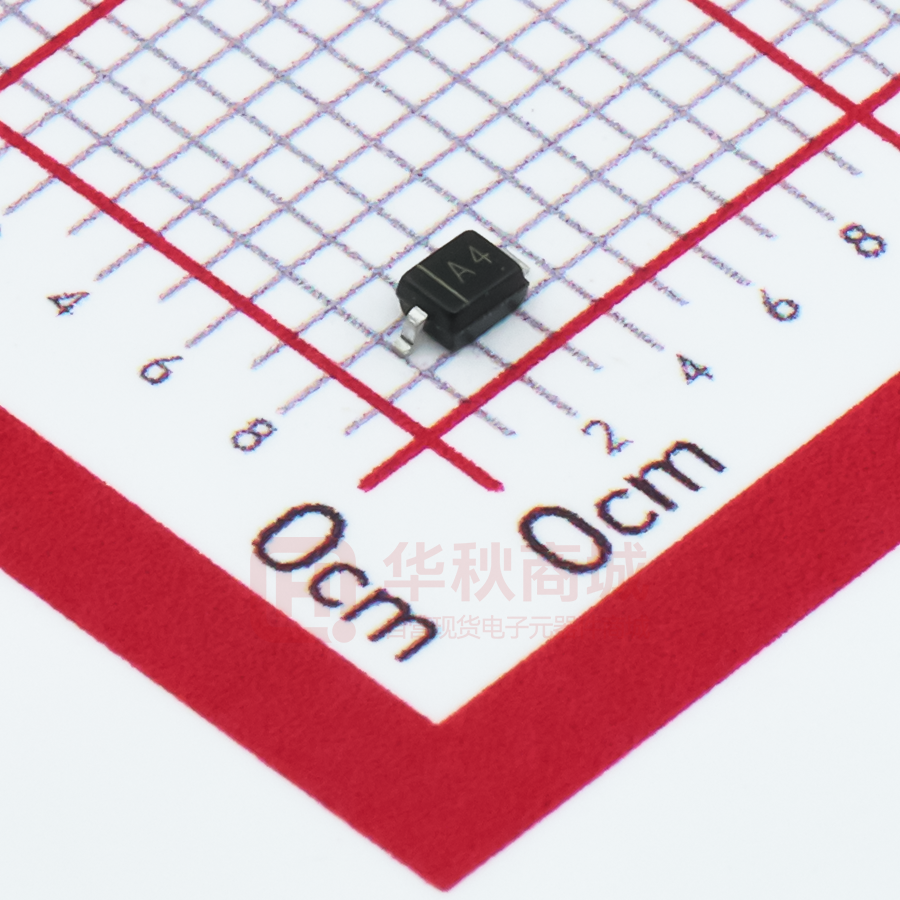

BAT760

BAT760 Schottky Diodes 2 Ƶ Features ƽ Very Low Forward Voltage Drop 1.Cathode 2.Anode 1 ƽ Guard Ring Construction for Transient Protection ■ Simplified outline(SOD-323) ƽ High Conductance Top View Ƶ Absolute Maximum Ratings (TA = 25ć unless otherwise noted) Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Parameter Symbol Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM DC Blocking Voltage Rating Unit 30 V VR RMS Reverse Voltage VR(RMS) 21 IO 1 IFSM 5.5 PD 235 mW RșJA 426 ć/W Average Rectified Output Current Forward Current t = 8.3 ms Half Sinewave Power Dissipation Thermal Resistance Junction to Ambient (Note 1) TJ 150 Tstg -55 to 150 Junction Temperature Storage Temperature range A ć Note 1: Part mounted on FR-4 PC board with recommended pad layout Ƶ Electrical Characteristics (TA = 25ć unless otherwise noted) Parameter Reverse breakdown voltage (Note 2) Forward voltage Leakage current (Note 2) Total Capacitance Symbol Test Conditions Typ Max IR= 500 ȝA VF1 IF= 10 mA 0.27 VF2 IF= 100 mA 0.35 VF3 IF= 1 A 0.55 IR1 VR=5 V 10 IR2 VR=8 V 20 IR3 VR=15 V 50 CT VR= 5 V, f= 1 MHz Note 2: Short duration pulse test used to minimize self-heating effect. www.slkormicro.com Min VR 1 Unit 30 25 V ȝA pF BAT760 Ƶ Typical Characterisitics IF, INSTANTANEOUS FORWARD CURRENT (A) 10 1 0.1 0.01 0.001 0.2 0.4 0.6 0.8 1.0 0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Characteristics 20 0 10 30 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics 2.0 IF(AV), AVERAGE FORWARD CURRENT (A) 60 f = 1MHz CT, TOTAL CAPACITANCE (pF) 50 40 30 20 10 0 0 1.0 0.5 0 0 10 5 20 15 VR, DC REVERSE VOLTAGE (V) Fig. 3 Total Capacitance vs. Reverse Voltage www.slkormicro.com 1.5 2 25 75 125 50 100 TT, TERMINAL TEMPERATURE (° C) Fig. 4 Forward Current Derating Curve 150 BAT760 ■ SOD-323 E E D b A C A1 ∠ALL ROUND L1 E1 SOD-323 mechanical data A C D E E1 b L1 A1 max 1.1 0.15 1.4 1.8 2.75 0.4 0.45 0.2 min 0.8 0.08 1.2 1.4 2.55 0.25 0.2 max 43 5.9 55 70 108 16 16 min 32 3.1 47 63 100 9.8 7.9 UNIT ∠ mm 9° mil ■ The recommended mounting pad size 1.4 (55) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) www.slkormicro.com 3 8
