RB521CS-30

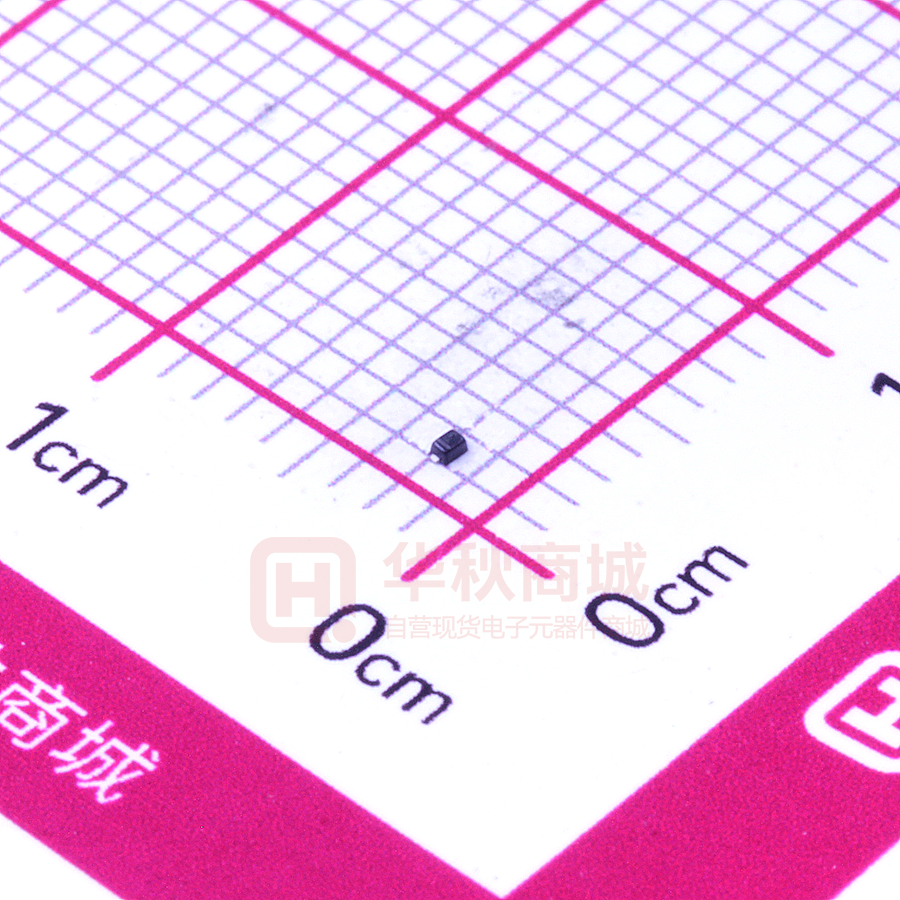

RB521CS-30 PLANAR SCHOTTKY BARRIER DIODE ◇ Low current rectification ◇ Low forward voltage ◇ SOD-923 Micro SMD package (Fig-1) Dimensions: 1.0 mm x 0.6 mm (0.039” x 0.024”) ◇ RoHS compliant ◇ UL-94 V-0 / Green EMC ◇ Matte Tin Lead finish (Pb-Free) ◇ Moisture Level Sensitivity 1 ◇ Cathode Band / Device marking: Fig –1 Package SOD-923 Absolute Maximum Ratings （Ta = 25 ℃） Symbol Parameter VRRM Value Units Repetitive Peak Reverse Voltage 30 V VR Reverse Voltage 30 V IO Continuous Forward Current 100 mA IFSM Non-Repetitive Peak Forward Current *1 500 mA TJ Junction Temperature 125 ℃ TSTG Storage Temperature -55 to +125 ℃ *1: 8.3ms Single Half Sine-Wave Electrical Characteristics （Ta = 25 ℃） Symbol VF Parameter Forward Voltage Conditions Min IF = 10mA IF = 100mA BVR IR Breakdown Voltage IR = 100μA Reverse Current VR = 10V Max Units 0.35 0.55 V V 30 V 10 50 VR = 30V www.slkormicro.com TYP 1 μA μA RB521CS-30 Ordering Information Device RB521CS-30 Package Tape wide Embos pitch Tape specification SOD-923 8 mm 2 mm Conductive Package Dimensions www.slkormicro.com 2 Notes
