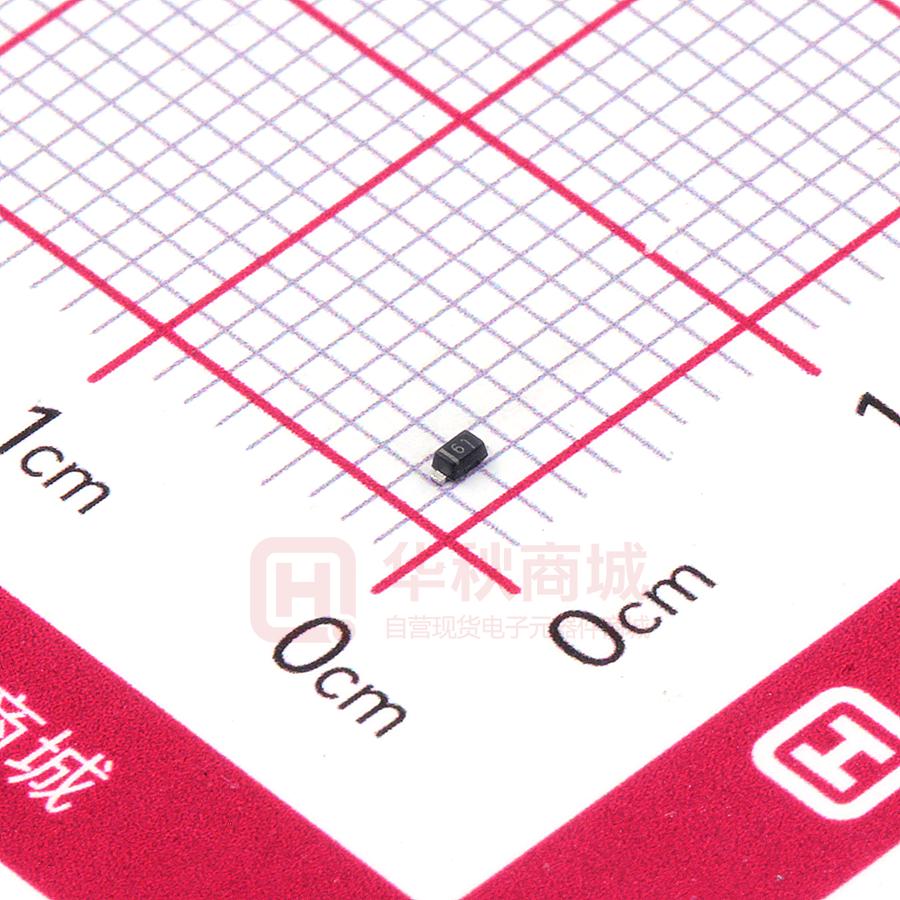

BAS516

BAS516 FEATURES Pb z Ultra small plastic SMD package. z High switching speed: max.4ns. z Continuous reverse voltage: max.75V. z Repetitive peak reverse voltage: max.85V z Repetitive peak forward current: max.500mA Lead-free SOD-523 APPLICATIONS z High-speed switching in surface mounted circuits. ORDERING INFORMATION Type No. Marking BAS516 61 Package Code SOD-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Limits Unit Repetitive peak reverse voltage VRRM 85 V Continuous reverse voltage VR 75 V Continuous forward current IF 250 mA Repetitive forward current IFRM 500 mA Non-repetitive peak forward surge current t=1μs t=1ms t=1s IFSM Total power dissipation Ptot 500 mW Junction temperature Tj 150 ℃ Storage temperature Tstg -65 to +150 ℃ www.slkormicro.com 4 1 0.5 1 A BAS516 ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Parameter Forward voltage Symbol VF Min. Max. Unit Conditions 0.715 V IF=1mA 0.855 V IF=10mA 1 V IF=50mA 1.25 V IF=150mA 30 30 nA μA VR=25V VR=25V TJ=150℃ 1 50 μA μA VR=75V VR=75V TJ=150℃ Reverse current IR Diode capacitance Cd 1 pF VR=0,f=1MHz Reverse recovery time trr 4 ns IF=10mA,IR=10mA,RL=400Ω TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified www.slkormicro.com 2 BAS516 www.slkormicro.com 3 BAS516 PACKAGE OUTLINE Plastic surface mounted package SOD-523 SOD-523 Dim Min Max A 1.1 1..3 B 0.7 0.9 C 0.5 0.7 D E J K 0.3 Typical 0.15 0.25 0.1 Typical 1.5 1.7 All Dimensions in mm SOLDERING FOOTPRINT Unit：mm PACKAGE INFORMATION Device Package Shipping BAS516 SOD-523 3000/Tape&Reel www.slkormicro.com 4
