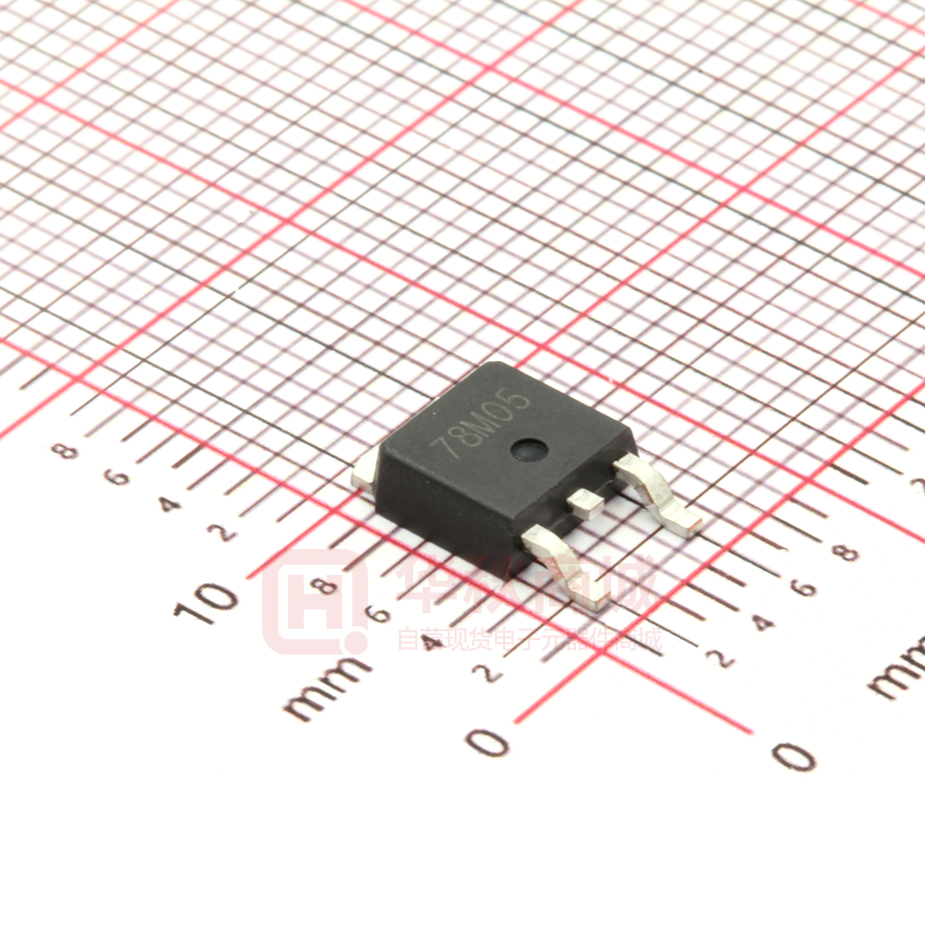

78M05
Features
•
•
•
•
•
Output Current up to 1A
Output Voltages of 5V
Thermal Overload Protection
Short Circuit Protection
Output Transistor Safe Operating Area (SOA)Protection
TO-252
GND
Description
1
The 78MXX series of three-terminal
1. Input 2. GND 3. Output
package with several fixed output voltages making it useful
in a wide range of applications.
Internal Block Digram
INPUT
SERIES
PASS
ELEMENT
1
SOA
PROTECTION
CURRENT
GENERATOR
STARTING
CIRCUIT
REFERENCE
VOLTAGE
OUTPUT
3
R1
ERROR
AMPLIFIER
R2
THERMAL
PROTECTION
GND
2
www.slkormicro.com
1
78M05
Absolute Maximum Ratings
Parameter
Symbol
Value
Unit
VI
30
V
Thermal Resistance Junction-Case (Note1)
TO-220 (Tc = +25°C)
RθJC
2.5
°C/W
Thermal Resistance Junction-Air (Note1, 2)
TO-220 (Ta = +25°C)
D-PAK (Ta = +25°C)
RθJA
66
92
°C/W
Operating Junction Temperature Range
TOPR
0 ~ +150
°C
Storage Temperature Range
TSTG
-65 ~ +150
°C
Input Voltage (for VO = 5V to 18V)
Note:
1. Thermal resistance test board
Size: 76.2mm * 114.3mm * 1.6mm(1S0P)
JEDEC standard: JESD51-3, JESD51-7
2. Assume no ambient airflow
Electrical Characteristics (78M05)
(Refer to the test circuits, 0 < TJ < +125°C, IO=350mA, VI=10V, unless otherwise specified, CI = 0.33µF, CO=0.1µF)
Parameter
Output Voltage
Symbol
VO
Line Regulation (Note3)
∆VO
Load Regulation (Note3)
∆VO
Quiescent Current
Quiescent Current Change
Output Voltage Drift
IQ
∆IQ
∆V/∆T
Conditions
Min.
Typ.
Max.
TJ = +25°C
4.8
5
5.2
IO = 5mA to 350mA
VI = 7V to 20V
4.75
5
5.25
VI = 7V to 25V
-
-
100
VI = 8V to 25V
-
-
50
IO = 5mA to 0.5A, TJ =+25°C
-
-
100
IO = 5mA to 200mA, TJ =+25 °C
-
-
50
TJ =+25°C
-
4.0
IO = 5mA to 350mA
-
-
1
IO = 200mA
VI = 8V to 25V
-
-
0.8
IO = 5mA
TJ = 0 to +125°C
-
-0.5
-
mV/°C
IO = 200mA
TJ =+25°C
6.0
Unit
V
mV
mV
mA
mA
Output Noise Voltage
VN
f = 10Hz to 100kHz
-
40
-
µV/Vo
Ripple Rejection
RR
f = 120Hz, IO = 300mA
VI = 8V to 18V, TJ =+25 °C
-
80
-
dB
Dropout Voltage
VD
TJ =+25°C, IO = 500mA
-
2
-
V
Short Circuit Current
ISC
TJ =+25°C, VI = 35V
-
300
-
mA
Peak Current
IPK
TJ =+25°C
-
700
-
mA
Note:
3. Load and line regulation are specified at constant junction temperature. Change in Vo due to heating effects must be taken
into account separately. Pulse testing with low duty is used.
www.slkormicro.com
2
