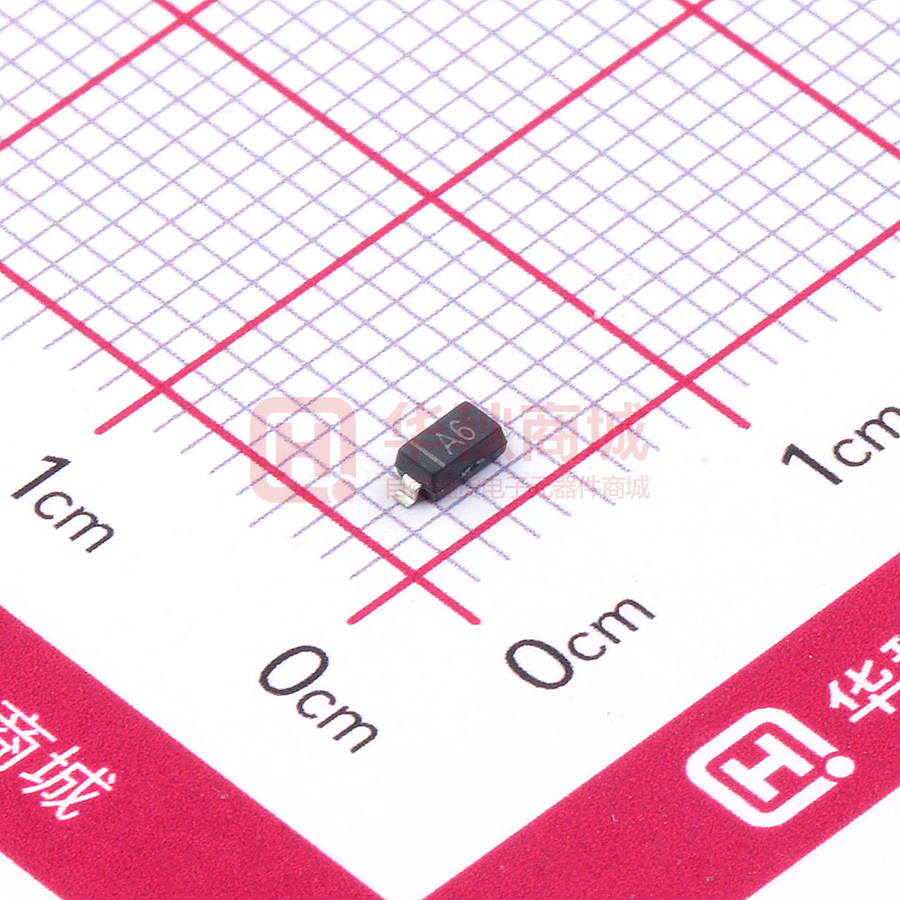

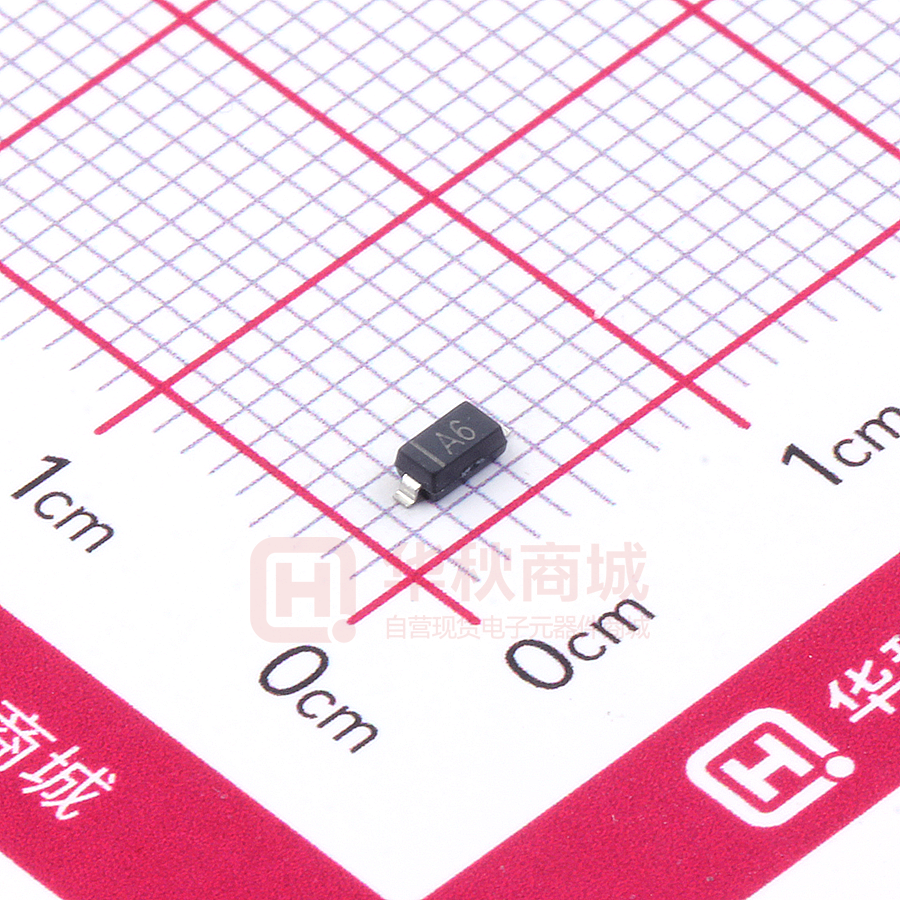

BAV16W
FAST SWITCHING DIODE
BAV16W
SOD-123
◇
◇
◇
◇
◇
◇
Fast switching devices
SOD123 Micro SMD package
RoHS compliant / Green EMC
Matte Tin (Sn) Lead finish
Cathode Band / Device marking
Surface Mount Package Ideally Suited
for Automatic Insertion
◇ For General Purpose Switching Applications
◇ High Conductance
F
Maximum Ratings (Ta = 25 ℃)
Symbol
Parameter
Value
Units
VRM
Non-Repetitive Peak Reverse Voltage
100
V
VRRM
Repetitive Peak Reverse Voltage
100
V
RMS Reverse Voltage
75
V
IFM
Forward Continuous Current
300
mA
IO
Average Rectified Output Current
150
mA
IFSM
Non-Repetitive Peak Forward Surge Current
( @t=1.0us )
2.0
A
PD
Power Dissipation
350
mW
TJ
Junction Temperature
150
℃
TSTG
Storage Temperature
-55 to +150
℃
VR(RMS)
Electrical Characteristics (Ta = 25 ℃)
Symbol
VF
IR
Parameter
Forward Voltage
Reverse current
Conditions
Min
Max
Units
IF = 1mA
0.715
V
IF = 10mA
0.855
V
IF = 50mA
1.0
V
IF = 150mA
1.25
V
VR= 75V (25℃)
1
μA
VR= 20V (25℃)
25
nA
VR= 75V (150℃)
50
μA
CT
Capacitance
VR = 0V, f = 1MHz
2
pF
trr
Reverse Recovery Time
IF = IR = 10mA,
4
ns
IRR = 1mA, RL = 100Ω
www.slkormicro.com
1
BAV16W
Characteristics Curves
Forward current(IF) vs Forward voltage(VF)
Reverse current(IR) vs Reverse voltage(VR)
Ordering Information
Device
Package
Shipping
BAV16W
SOD123
Tape & Reel
3000pcs /7” Reel
Tape
wide
Emboss
pitch
Tape
specification
8 mm
4 mm
Conductive
Notes
Package Dimensions
Pa cka ge out line : S OD-123
Unit
A
A1
A2
b
c
D
E
E1
Max.
1.25
0.10
1.15
0.65
0.15
1.70
2.80
3.85
Min.
1.05
0.00
1.05
0.45
0.08
1.50
2.60
3.55
L
0.500
REF.
Note:
1. Halogen free,EMC
2. Pb free solder
3. Lead thickness includes solder plating
4. Lead frame: A42
5. Other Tolerance: ±0.05
S OD123 Package Outline
6. Dimensions are exclusive of Burrs,Mold Flash and Tie Bar extrusions
7. Unit: mm
L a nd Pattern Recommendation
www.slkormicro.com
2
L1
θ
0.45
8°
0.25
0°
