BAS316

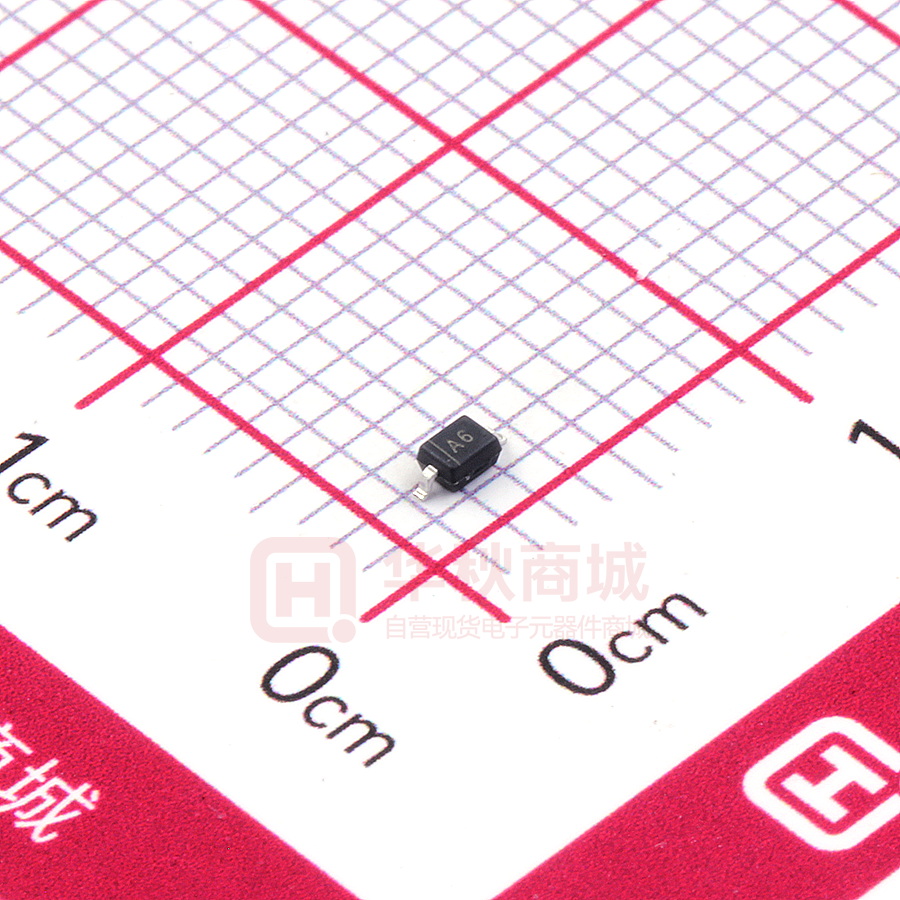

BAS316 Ƶ Switching Diodes 2 Ƶ Features ƽ Fast Switching Speed 1.Cathode 2.Anode 1 ƽ For General Purpose Switching Applications. ■ Simplified outline(SOD-323) ƽ High Conductance ƽ Surface Mount Package Ideally Suited for Automatic Insertion Top View Ƶ Absolute Maximum Ratings Ta = 25ć Symbol Rating Reverse Voltage VRM 100 Peak Repetitive Peak Reverse Voltage VRRM Working Peak Reverse Voltage VRWM Parameter DC Blocking Voltage 100 Unit V VR RMS Reverse Voltage VR(RMS) 71 Average Rectified Output Current IO 150 Forward Continuous Current IFM 300 Peak Forward Surge Current @ t=1us 2 IFSM @ t =1s mA A 1 Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature range Pd 500 mW R©JA 250 ć/W TJ 150 Tstg -55 to 150 ć Ƶ Electrical Characteristics Ta = 25ć Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Symbol Test Conditions Min Typ Max Unit VR IR= 100 uA VF1 IF= 1mA 0.715 VF2 IF= 10 mA 0.855 VF3 IF= 50 mA 1 VF4 IF= 150 mA 1.25 IR1 VR= 75 V 1 uA 100 V IR2 VR=20 V 25 nA Junction capacitance Cj VR= 0 V, f= 1 MHz 2 pF Reverse recovery time trr IF=IR=10mA,Irr=0.1xIR, RL=100ȍ 4 ns www.slkormicro.com 1 BAS316 Ƶ Typical Characterisitics Forward (mA) 1000 Characteristics REVERSE CURRENT IR C o FORWARD CURRENT Ta =2 5 Ta =1 00 o IF C (nA) 100 10 1 0.1 0.01 0.0 Reverse 10000 o Ta=100 C 1000 100 o Ta=25 C 10 1 0.4 0.8 1.2 FORWARD VOLTAGE VF 0 1.6 20 40 60 REVERSE VOLTAGE (V) 80 VR 100 (V) Power Derating Curve Capacitance Characteristics 1.6 600 (mW) Ta=25 f=1MHz PD 1.4 1.2 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Characteristics 1.0 0.8 0.6 500 400 300 200 100 0 0 4 8 12 REVERSE VOLTAGE www.slkormicro.com 16 VR 20 0 25 50 75 100 AMBIENT TEMPERATURE (V) 2 125 Ta ( ) 150 BAS316 ■ SOD-323 E E D b A C A1 ∠ALL ROUND L1 E1 SOD-323 mechanical data A C D E E1 b L1 A1 max 1.1 0.15 1.4 1.8 2.75 0.4 0.45 0.2 min 0.8 0.08 1.2 1.4 2.55 0.25 0.2 max 43 5.9 55 70 108 16 16 min 32 3.1 47 63 100 9.8 7.9 UNIT ∠ mm 9° mil ■ The recommended mounting pad size 1.4 (55) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) www.slkormicro.com 3 8
