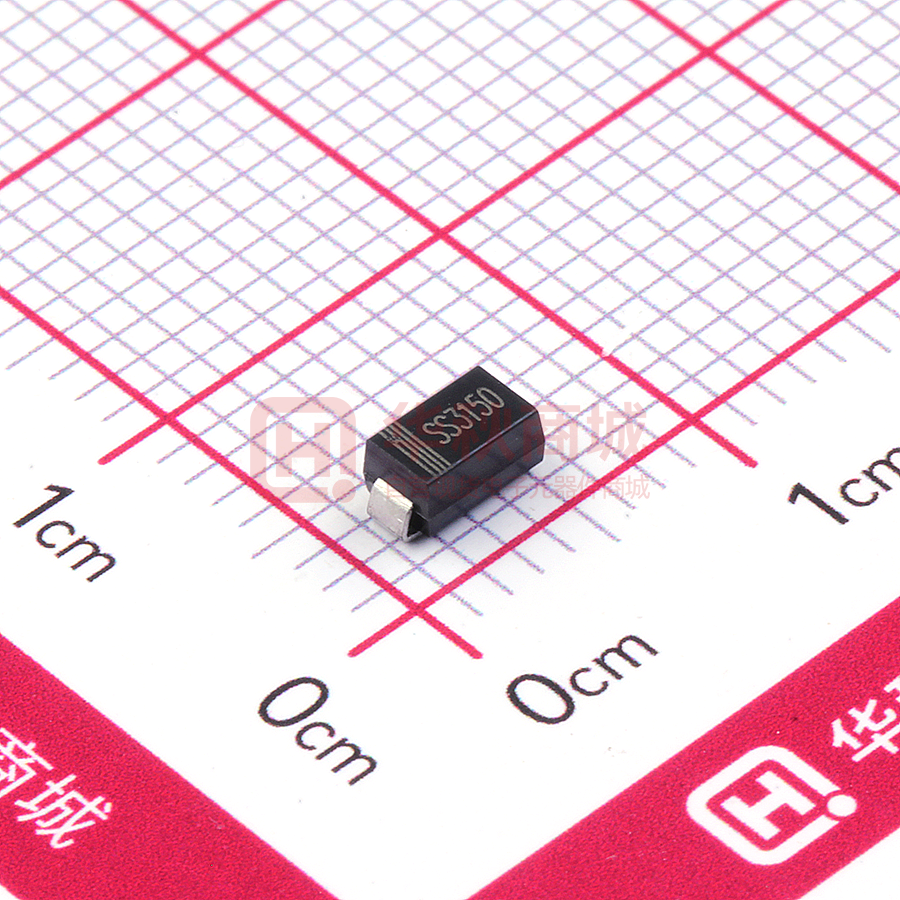

SS3150

SS32-SS3200 Reverse Voltage - 20 to 200 Volts Forward Current - 3.0 Amperes FEATURES SMA/DO-214AC The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Metal silicon junction,majority carrier conduction Low power loss,high efficiency Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals 0.110(2.80) 0.086(2.18) 0.087 (2.21) 0.051 (1.29) 0.180(4.57) 0.157(3.99) 0.012(0.305) 0.006(0.152) MECHANICAL DATA 0.096(2.42) 0.067(1.70) 0.060(1.52) 0.030(0.76) Case: JEDEC DO-214AC molded plastic body Terminals: leads solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight :0.058 grams 0.008(0.203)MAX. 0.222(5.66) 0.185(4.70) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS SS32 Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range VRRM VRMS VDC SS33 SS34 SS35 30 21 30 40 28 40 50 35 50 20 14 20 60 42 60 80 56 80 100 70 100 150 105 150 200 140 200 VOLTS VOLTS VOLTS I(AV) 3.0 Amps IFSM 70.0 Amps VF 0.55 IR CJ RqJA TJ, TSTG 0.70 0.85 20 10 500 300 62.0 55.0 -65 to +125 1 0.95 1.0 0.5 Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas www.slkormicro.com SS36 SS38 SS310 SS3150 SS3200 UNITS -65 to +150 -65 to +150 Volts mA pF C/W C C FIG. 1- FORWARD CURRENT DERATING CURVE FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 3.0 2.4 Single Phase Half Wave 60Hz Resistive or inductive Load 1.8 1.2 SS32-SS310 SS315-SS320 0.6 0 0 25 50 75 100 £PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES SS32-SS3200 100 125 150 80 60 40 20 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 100 NUMBER OF CYCLES AT 60 Hz FIG. 4-TYPICAL REVERSE CHARACTERISTICS FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 50 1,000 INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES TJ=25 C INSTANTANEOUS FORWARD CURRENT,AMPERES 10.0 1 SS32-SS34 SS35-SS310 SS315-SS320 0.1 100 10 TJ=75 C 1 0.1 TJ=25 C 0.01 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 TJ=100 C 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 1.6 INSTANTANEOUS FORWARD VOLEAGE, VOLTS FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE TRANSIENT THERMAL IMPEDANCE, C/W FIG. 5-TYPICAL JUNCTION CAPACITANCE 2000 JUNCTION CAPACITANCE, pF 1000 TJ=25 C 100 SS32-SS34 SS35-SS320 100 10 1 0.1 0.01 0.1 1 10 10 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS www.slkormicro.com t,PULSE DURATION,sec. 2 100
