6N136

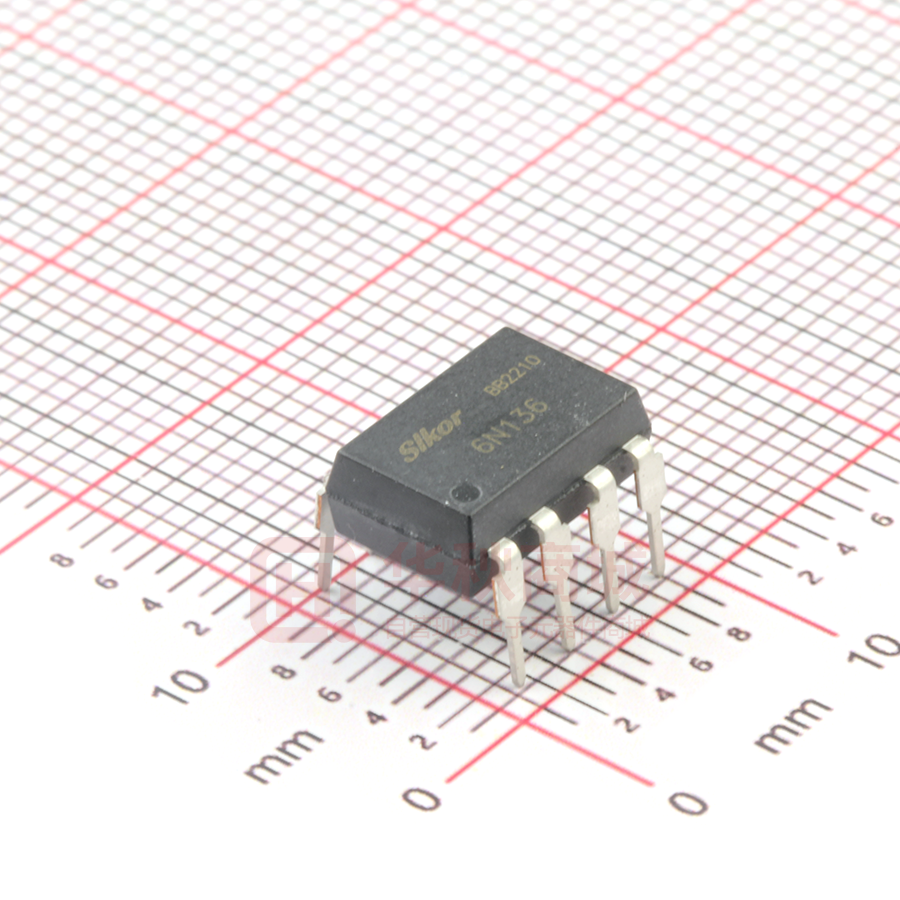

6N135,6N136,SL450X Series 1Mbit/s High Speed Transistor Photo Coupler SCHEMATIC Description The 6N135, 6N136, SL450X series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon high speed photo transistor in a plastic DIP8 package with different lead forming options. 1 8 2 7 3 6 4 5 A separate design between photodiode and transistor reduces the base-collector capacitance of the input transistor which improves the speed PIN DEFINITION by several orders of magnitude over conventional phototransistor optocouplers. Features 1.NC 8.VCC 2.Anode 7.VB(for 6N135/6N136) NC(for SL4502/SL4503)  High isolation 5000 VRMS 3.Cathode 6.VO  DC input with transistor output 4.NC 5.GND  Operating temperature range - 55 °C to OUTLINE 100 °C  REACH compliance  Halogen free (Optional)  MSL class 1  Regulatory Approvals  UL - UL1577  VDE - EN60747-5-5(VDE0884-5)  CQC - GB4943.1, GB8898  cUL- CSA Component Acceptance Service Notice No. 5A Applications  Line receivers  Telecommunication equipment  Out interface to CMOS-LSTTL-TTL  Wide bandwidth analog coupling  Pulse transformer replacement  Computer-peripheral interface www.slkormicro.com 1 6N135,6N136,SL450X Series ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL VALUE UNIT Note Forward Current IF 25 mA Peak Forward Current IFP 50 mA 1 Peak Transient Current IF(trans) 1 A 2 Reverse Voltage VR 5 V Input Power Dissipation PI 100 mW Supply Voltage VCC -0.5~30 V Output Voltage VO -0.5~20 V Output Current IO 50 mA Emitter-Base Reverse Voltage VEBR 5 V Base Current IB 5 mA Output Power Dissipation PO 100 mW Total Power Dissipation Ptot 200 mW Isolation Voltage Viso 5000 Vrms Operating Temperature Topr -55~100 °C Storage Temperature Tstg -55~150 °C Soldering Temperature Tsol 260 °C INPUT OUTPUT COMMON Note 1. 50% duty, 1ms P.W Note 2. ≤1μs P.W,300pps Note 3. AC For 1 Minute, R.H. = 40 ~ 60% Note 4. For 10 seconds www.slkormicro.com 2 3 4 6N135,6N136,SL450X Series ELECTRICAL OPTICAL CHARACTERISTICS PARAMETER SYMBOL MIN TYP MAX UNIT TEST CONDITION INPUT(at Ta=0 to 70°C , unless specified otherwise) Forward Voltage VF - 1.45 1.8 V IF=16mA Reverse Current IR - - 10 μA VR=5V Input Capacitance Cin - 60 - pF V=0, f=1MHz OUTPUT(at Ta=0 to 70°C , unless specified otherwise) High Level Supply Current ICCH Low Level Supply Current ICCL Logic High Output Current www.slkormicro.com IOH - 0.01 1 μA IF=0mA, VO=Open, VCC=15V, Ta=25°C - - 2 μA IF=0mA, VO=Open, VCC=15V - 200 - μA IF=16mA, VO=Open, VCC=15V IF=0mA, VO=VCC=5.5V, Ta=25°C - 0.001 0.5 μA - 0.01 1 μA - - 50 μA 3 IF=0mA, VO=VCC=15V, Ta=25°C IF=0mA, VO=VCC=15V NOTE 6N135,6N136,SL450X Series ELECTRICAL OPTICAL CHARACTERISTICS PARAMETER SYMBOL MIN TYP MAX UNIT TEST CONDITION TRANSFER CHARACTERISTICS(at Ta=0 to 70°C , unless specified otherwise) 6N135 Current Transfer Ratio 6N136 SL4502 SL4503 7 - 50 IF = 16mA ,VO = 0.4V, 19 - CTR 6N135 VCC=4.5V, Ta=25°C 50 μA 5 - IF = 16mA ,VO = 0.5V, VCC=4.5V 6N136 SL4502 SL4503 15 - - 6N135 - 0.18 0.4 IF = 16mA ,IO = 1.1mA, VCC=4.5V, Ta=25°C - 0.25 0.4 IF = 16mA ,IO = 3mA, VCC=4.5V, Ta=25°C 6N136 Logic Low Output Voltage SL4502 SL4503 μA VOL 6N135 - - - IF = 16mA ,IO =0.8mA, VCC=4.5V 6N136 SL4502 SL4503 - - - IF= 16mA ,IO=2.4mA, VCC=4.5V Isolation Resistance Riso Floating Capacitance CIO www.slkormicro.com 10^12 10^14 - 0.3 4 - Ω DC500V, 40 ~ 60% R.H. 1 pF V=0, f=1MHz NOTE 6N135,6N136,SL450X Series ELECTRICAL OPTICAL CHARACTERISTICS PARAMETER SYMBOL MIN TYP MAX UNIT TEST CONDITION NOTE SWITCHING CHARACTERISTICS(at Ta=0 to 70°C, IF=16mA ,VCC=5V, unless specified otherwise) Propagation Delay Time to Logic Low - 0.35 1.5 RL=4.1kΩ,TA=25oC - - 2 RL=4.1kΩ - 0.35 0.8 - - 1.0 RL=1.9kΩ - 0.5 1.5 RL=4.1kΩ,TA=25oC - - 2 RL=4.1kΩ - 0.3 0.8 - - 1.0 RL=1.9kΩ 6N135 1000 - - IF = 0mA , VCM=10Vpp, RL=4.1kΩ, TA =25°C 6N136 SL4502 1000 - - 6N135 6N136 SL4502 SL4503 Propagation 6N135 Delay Time 6N136 to Logic SL4502 High SL4503 Common Mode Transient Immunity at Logic High Common Mode Transient Immunity at Logic Low TPHL TPLH CMH μs μs RL=1.9kΩ,TA=25oC RL=1.9kΩ,TA=25oC V/μs RL=1.9kΩ, TA =25°C SL4503 15000 20000 - 6N135 1000 - IF = 16mA , VCM=10Vpp, RL=4.1kΩ, TA =25°C CML 1000 - - V/μs VCM=10Vpp, RL=1.9kΩ, TA=25°C IF = 16mA , SL4503 www.slkormicro.com Fig.14 IF = 16mA , 6N136 SL4502 Fig.13 IF = 0mA , VCM=10Vpp, IF = 0mA , VCM=1500Vpp, RL=1.9kΩ, TA =25°C - Fig.13 15000 20000 5 - VCM =1500Vpp, RL =1.9kΩ, TA =25°C Fig.14 6N135,6N136,SL450X Series CHARACTERISTIC CURVES Fig.1 Forward Current vs. Forward Voltage Fig.2 Forward Voltage vs. Ambient Temperature Fig.3 Input Threshold Current vs. Ambient Temperature Fig.4 Input Threshold Current vs. Ambient Temperature Fig.5 Low Level Output Current vs. Ambient Temperature Fig.6 Low Level Output Current vs. Ambient Temperature www.slkormicro.com 6 6N135,6N136,SL450X Series CHARACTERISTIC CURVES Fig.7 Low Level Output Voltage vs. Ambient Temperature Fig.8 Low Level Output Voltage vs. Ambient Temperature Fig.9 High Level Output Current vs. Ambient Temperature Fig.10 High Level Output Current vs. Ambient Temperature Fig.11 Output Voltage vs. Forward Current Fig.12 Output Voltage vs. Forward Current www.slkormicro.com 7 7 6N135,6N136,SL450X Series TEST CIRCUITS Fig.13 Test Circuits for TPHL, TPLH, tr, tf Fig.14 Waveforms of TPHL, TPLH, tr, tf www.slkormicro.com 8 8 6N135,6N136,SL450X Series TEST CIRCUITS Fig.15 Test Circuits for Common Mode Transient Immunity Fig.16 Waveforms of Common Mode Transient Immunity www.slkormicro.com 9 9 6N135,6N136,SL450X Series PACKAGE DIMENSIONS (Dimensions in mm unless otherwise stated) Standard DIP – Through Hole (DIP Type) Gullwing (400mil) Lead Forming – Through Hole (M Type) www.slkormicro.com 10 6N135,6N136,SL450X Series PACKAGE DIMENSIONS (Dimensions in mm unless otherwise stated) Surface Mount Lead Forming (S Type) Surface Mount (Low Profile) Lead Forming (SL Type) www.slkormicro.com 11 6N135,6N136,SL450X Series PACKAGE DIMENSIONS (Dimensions in mm unless otherwise stated) Surface Mount (Gullwing) Lead Forming (SLM Type) Recommended Solder Mask (Dimensions in mm unless otherwise stated) Surface Mount Lead Forming & Surface Mount (Low Profile) Lead Forming Surface Mount (Gullwing) Lead Forming www.slkormicro.com 12 6N135,6N136,SL450X Series Carrier Tape Specifications (Dimensions in mm unless otherwise stated) Option S(T1) & SL(T1) Option S(T2) & SL(T2) www.slkormicro.com 13 6N135,6N136,SL450X Series Carrier Tape Specifications (Dimensions in mm unless otherwise stated) Option SLM(T1) Option SLM(T2) www.slkormicro.com 14 6N135,6N136,SL450X Series REFLOW INFORMATION REFLOW PROFILE Profile Feature Sn-Pb Assembly Profile Pb-Free Assembly Profile Temperature Min. (Tsmin) 100 150°C Temperature Max. (Tsmax) 150 200°C Time (ts) from (Tsmin to Tsmax) 60-120 seconds 60-120 seconds Ramp-up Rate (tL to tP) 3°C/second max. 3°C/second max. Liquidous Temperature (TL) 183°C 217°C Time (tL) Maintained Above (TL) 60 – 150 seconds 60 – 150 seconds Peak Body Package Temperature 235°C +0°C / -5°C 260°C +0°C / -5°C Time (tP) within 5°C of 260°C 20 seconds 30 seconds Ramp-down Rate (TP to TL) 6°C/second max 6°C/second max Time 25°C to Peak Temperature 6 minutes max. 8 minutes max. www.slkormicro.com 15
