BAT54CT

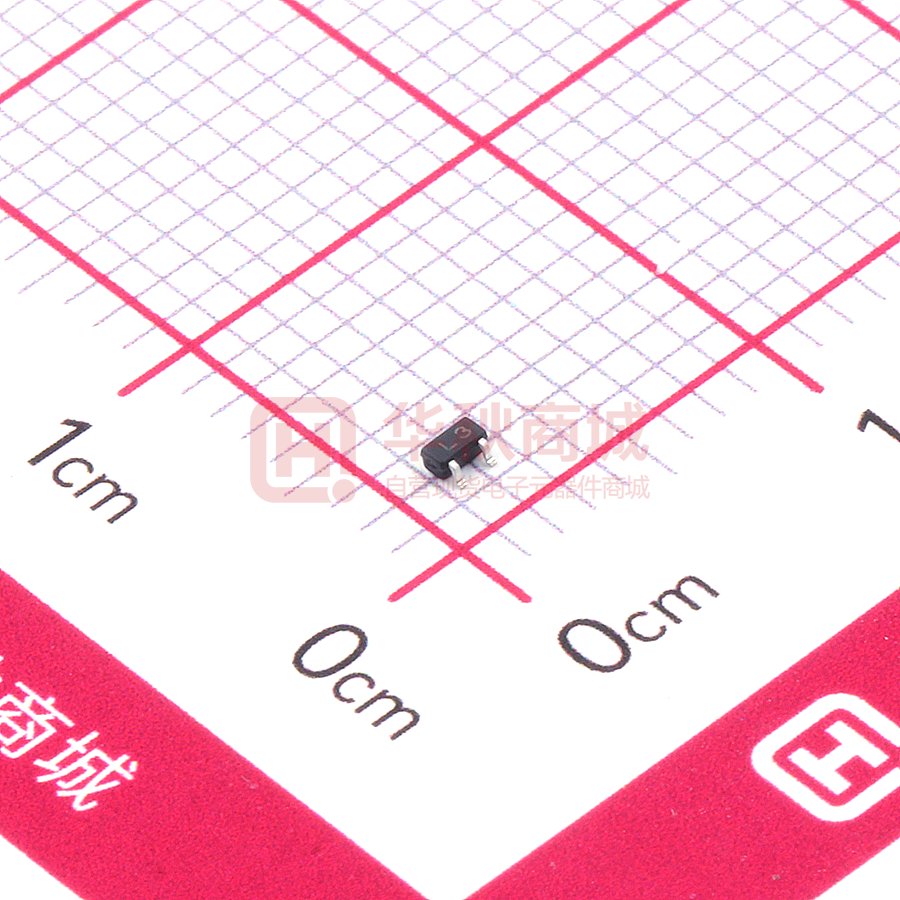

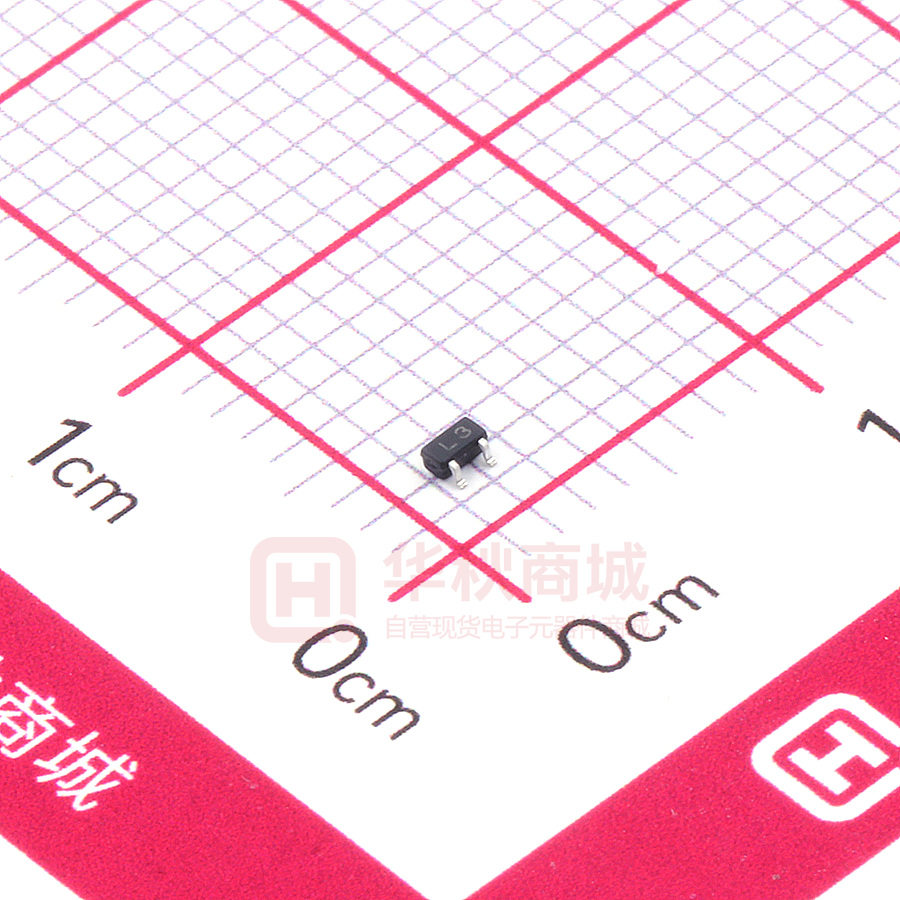

BAT54CT Surface Mount Schottky Barrier Diode Features • Low forward voltage BAT54T 3 BAT54AT 3 Applications • Ultra high-speed switching • Voltage clamping • Protection circuits 1 1 2 BAT54CT 3 2 1 Absolute Maximum Ratings (Ta = 25 OC) Parameter 2 BAT54ST 3 1 BAT54T Marking Code: L1 BAT54AT Marking Code: L2 BAT54CT Marking Code: L3 BAT54ST Marking Code: L4 2 Symbol Value Unit VRRM 30 V Reverse Voltage VR 30 V Forward Current IF(AV) 200 mA Repetitive Peak Forward Current IFRM 300 mA Peak Forward Surge Current (tp = 10 ms) IFSM 600 mA Total Power Dissipation Ptot 150 mW Thermal Resistance from Junction Ambient RθJA 667 Tj 125 O Tstg - 65 to + 150 O Peak Repetitive Reverse Voltage Junction Temperature Storage Temperature Range C/W O C C Characteristics at Ta = 25 OC Parameter Symbol Forward Voltage at IF = 0.1 mA at IF = 1 mA at IF = 10 mA at IF = 30 mA at IF = 100 mA Max. - 240 320 400 500 1000 V(BR)R 30 - V IR - 2 µA Ctot - 10 pF trr - 5 ns VF Reverse Breakdown Voltage at IR = 100 μA Reverse Current at VR = 25 V Total Capacitance at VR = 1 V, f = 1 MHz Reverse Recovery Time at IF = 10 mA through IR = 10 mA to IR = 1 mA, RL = 100 Ω www.slkormicro.com Min. 1 Unit mV BAT54CT www.slkormicro.com 2
