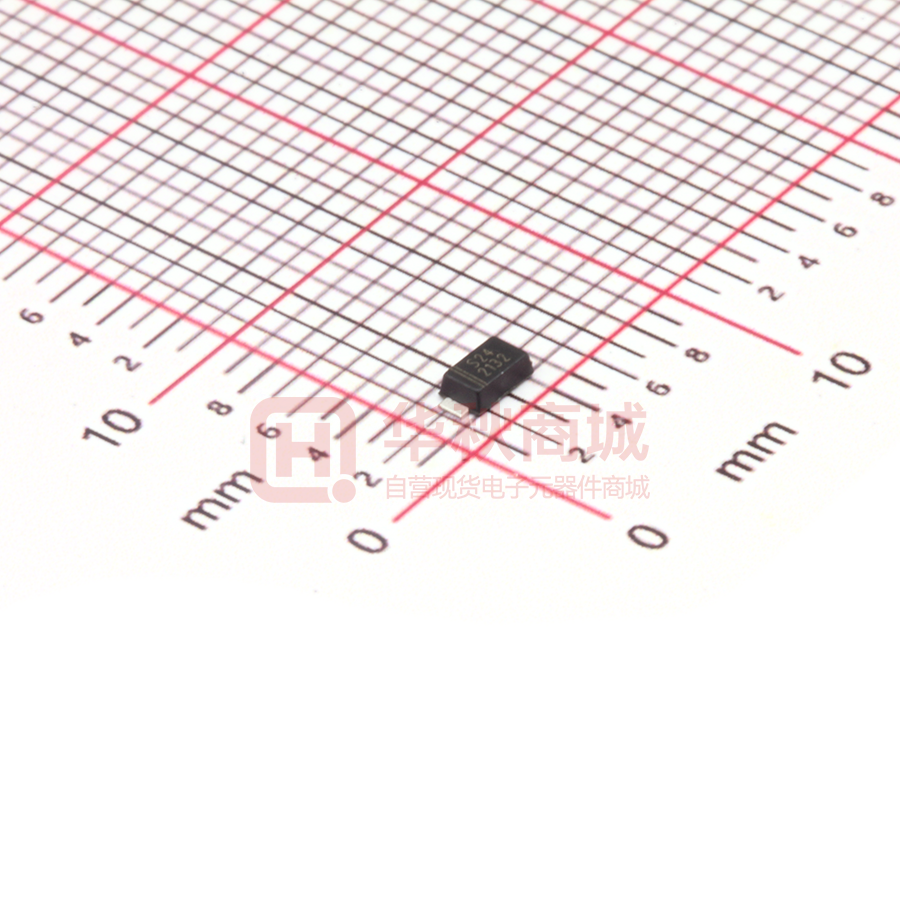

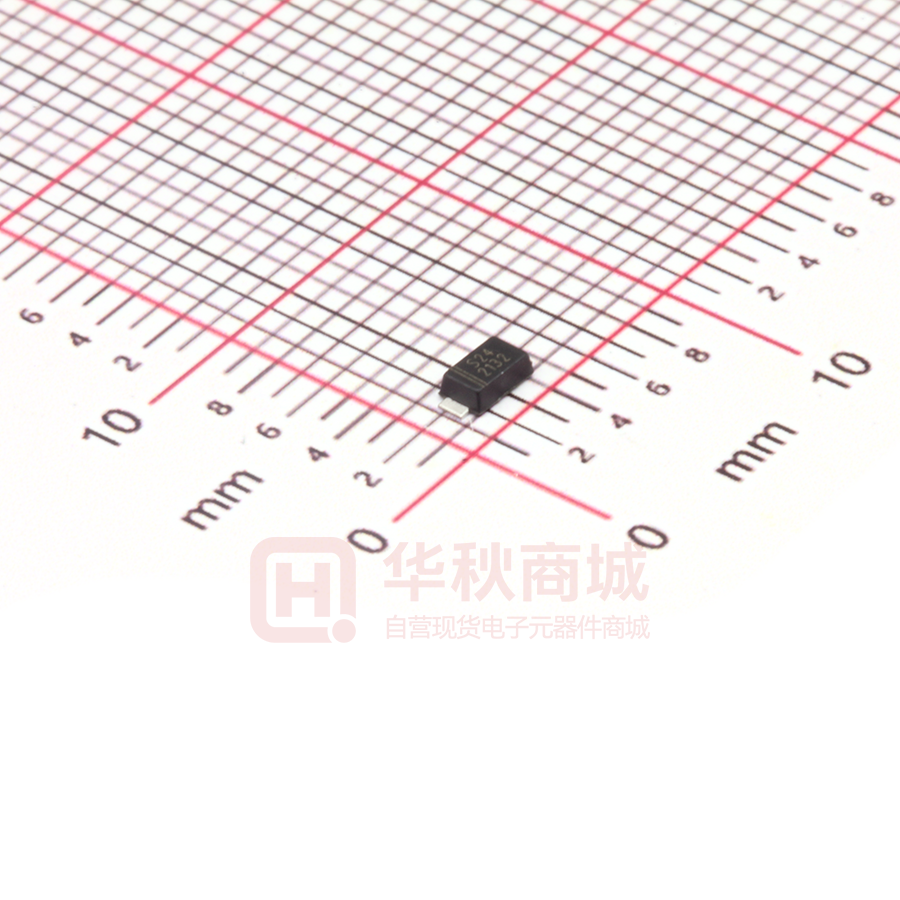

DS24W

DS22W-DS220W Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 2.0A PINNING Features • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications 1 Cathode 2 Anode 1 2 Top View Marking Code: DS22W ---S22 DS24W ---S24 DS26W ---S26 DS28W ---S28 DS210W ---S210 DS212W ---S212 DS215W ---S215 DS220W ---S220 Simplified outline SOD-123FL and symbol MECHANICAL DATA • Case: SOD-123FL • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight:15mg 0.00048oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Symbols Parameter DS22W DS24W DS26W DS28W DS210W DS212W DS215W DS220W Units Maximum Repetitive Peak Reverse Voltage V RRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage V RMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage V DC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current I F(AV) 2.0 A Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM 50 A Max Instantaneous Forward Voltage at 2 A Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage T a =100°C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating Junction Temperature Range Storage Temperature Range VF 0.55 0.95 0.3 3 80 220 V mA pF RθJA 85 °C/W Tj -55 ~ +125 °C T stg -55 ~ +150 °C （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. www.slkormicro.com 0.85 0.5 5 IR Cj 0.70 1 DS22W-DS220W Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 10 4 DS22W/DS24W DS26W-DS220W 10 1 T J =25°C 10 0 0 40 20 60 80 100 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Fig.4 Typical Junction Capacitance 500 Junction Capacitance ( pF) 20 10 1.0 DS22W/DS24W DS26W/DS28W DS210W/DS212W DS215W/DS220W 0.1 0.2 0 0.4 0.6 0.8 1.0 1.2 1.4 1.6 100 50 DS22W/DS24W 20 DS26W-DS220W 10 10 1 0.1 100 Instaneous Forward Voltage (V) Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 60 50 40 30 20 10 T J =25°C 200 1.8 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) T J =75°C 10 2 Case Temperature (°C) Peak Forward Surage Current (A) T J =100°C 10 3 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles at 60Hz www.slkormicro.com 200 100 10 1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 100 DS22W-DS220W PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND VM D E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm 1.2 (47) 1.2 (47) 2.0 (79) Marking Unit： mm (mil) www.slkormicro.com ∠ 7° The recommended mounting pad size 1.2 (47) g pad e E A pad HE 3 Type number Marking code DS22W S22 DS24W S24 DS26W S26 DS28W S28 DS210W S210 DS212W S212 DS215W S215 DS220W S220
