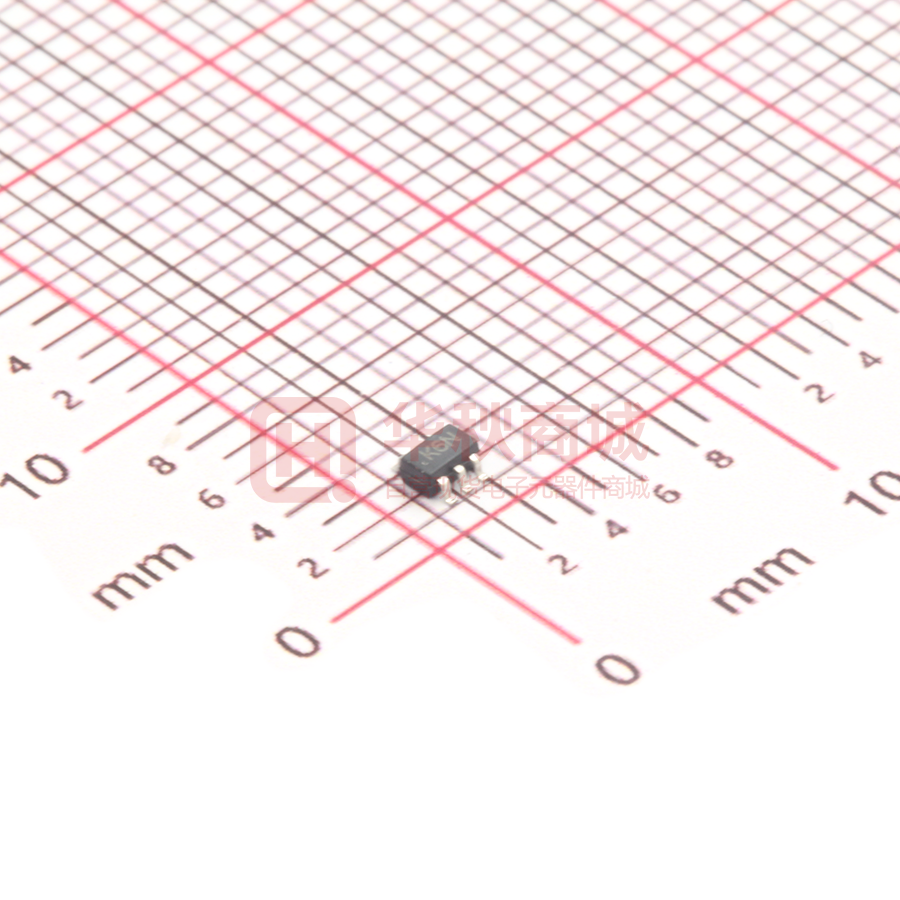

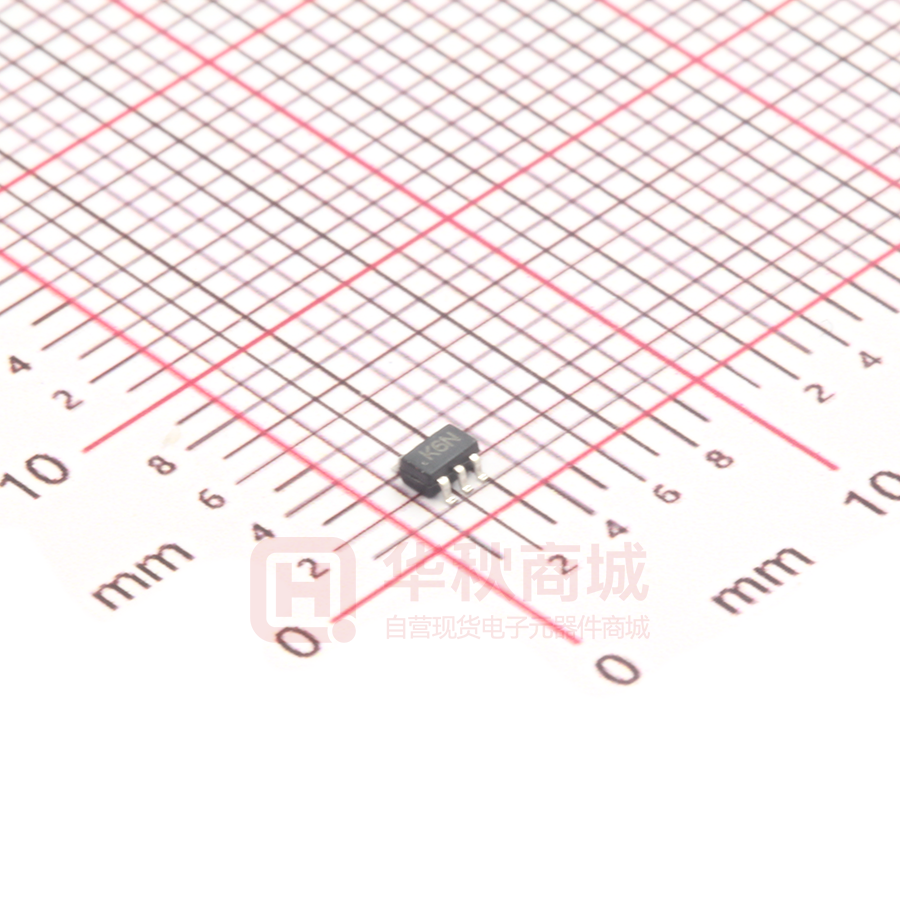

MMDT3904

MMDT3904 Dual NPN Small Signal Surface Mount Transistor FEATURES z Epitaxial planar die construction. z Ideal for low power amplification and switching. z Ultra-small surface mount package z Also available in lead free version. APPLICATIONS z General switching and amplification SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified SYMBOL PARAMETER VALUE UNIT VCBO collector-base voltage 60 V VCEO collector-emitter voltage 40 V VEBO emitter-base voltage 6 V IC collector current -continuous 0.2 A Ptot total power dissipation 0.2 W RθJA Thermal Resistance, Junction to Ambient 625 ℃/W Tstg storage temperature 150 °C Tj junction temperature -55 to +150 °C www.slkormicro.com 1 MMDT3904 ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified SYMBOL PARAMETER CONDITIONS MIN. V(BR)CBO Collector-base breakdown voltage IC=10μA,IE=0 60 V V(BR)CEO Collector-emitter breakdown voltage IC=1mA,IB=0 40 V V(BR)EBO Emitter-base breakdown voltage IE=10μA,IC=0 5 V ICEX collector cut-off current VCE=30V,VEB(OFF)=3.0V - 50 nA IBL Base cut-off current VCE=30V,VEB(OFF)=3.0V - 50 nA hFE DC current gain VCE =1V,IC= 0.1mA VCE =1V,IC =1mA VCE =1V,IC =10mA VCE =1V,IC =50mA VCE =1V,IC =100mA 40 70 100 60 30 300 - VCE(sat) collector-emitter saturation voltage IC =10mA,IB =1mA - 200 mV IC =50mA,IB =5mA - 300 mV VBE(sat) base-emitter saturation voltage IC =10mA,IB =1mA 650 850 mV IC =50mA, IB =5mA - 950 mV Cobo Output capacitance IE =0, VCB =5V, f =1MHz - 4 pF Cibo Input capacitance IC=0, VEB =0.5V, f =1MHz - 8 pF fT transition frequency IC=10mA,VCE=20V,f=100MHz 300 - MHz NF noise figure IC=0.1mA,VCE =5V,RS=1kΩ, f = 1kHz - 5 dB td delay time - 35 ns tr rise time VCC=3V,VBE(off)=-0.5V IC=10mA IB1=1mA - 35 ns ts storage time - 200 ns tf fall time VCC=3V,IC=10mA IB1=IB2=1mA - 50 ns TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified www.slkormicro.com 2 MAX. UNIT MMDT3904 www.slkormicro.com 3 MMDT3904 PACKAGE OUTLINE Plastic surface mounted package SOT-363 A SOT-363 E K B D J G H Dim Min Max A 2.00 2.20 B 1.15 1.35 C 0.95 Typical D 0.25 Typical E 0.25 0.40 G 0.60 0.70 H 0.02 0.10 J C K 0.10 Typical 2.2 2.4 All Dimensions in mm SOLDERING FOOTPRINT 0.40 0.65 0.65 0.50 Unit : mm 1.90 PACKAGE INFORMATION Device Package Shipping MMDT3904 SOT-363 3000/Tape&Reel www.slkormicro.com 4
