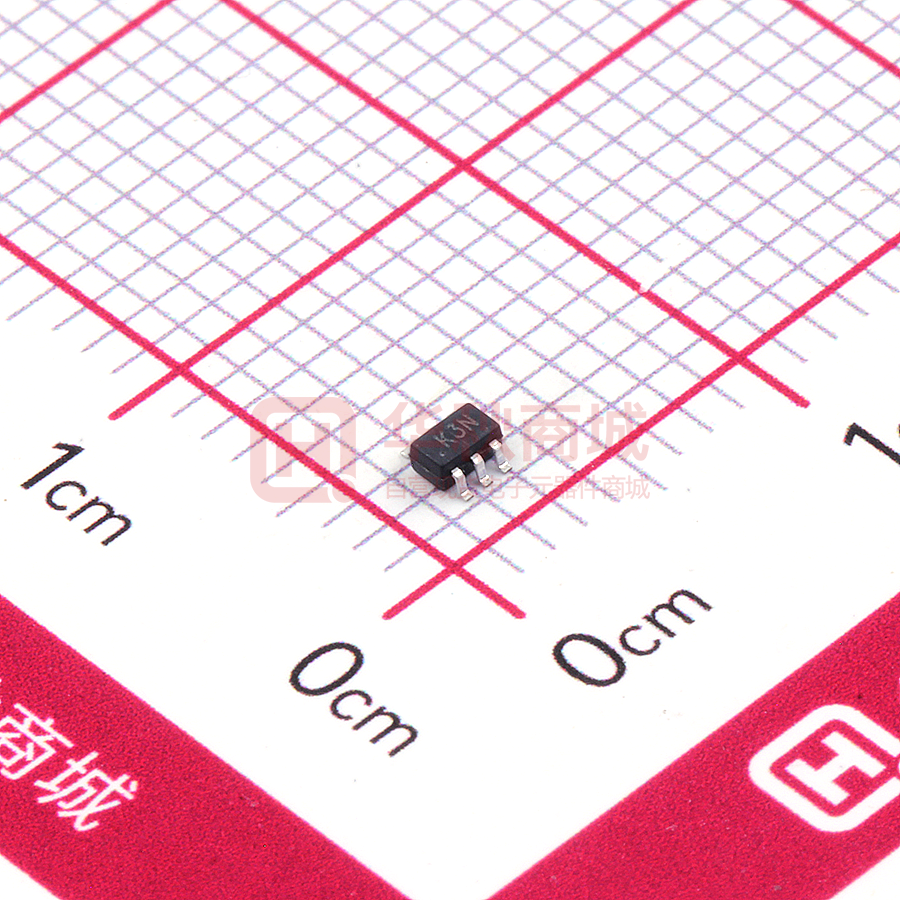

MMDT3906
Dual PNP Small Signal Surface Mount Transistor
FEATURES
z
Epitaxial planar die construction.
z
Ideal for low power amplification and
switching.
z
Ultra-small surface mount package.
z
Also available in lead free version.
APPLICATIONS
z
SOT-363
General switching and amplification.
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
collector-base voltage
-40
V
VCEO
collector-emitter voltage
-40
V
VEBO
emitter-base voltage
-5
V
IC
collector current -continuous
-0.2
A
Ptot
total power dissipation
-0.2
W
RθJA
Thermal resistance, junction to ambient
625
°C/W
Tstg
storage temperature
150
°C
Tj
junction temperature
-55 to +150
°C
www.slkormicro.com
1
MMDT3906
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
V(BR)CBO
Collector-base breakdown voltage
IC=-10μA,IE=0
-40
V
V(BR)CEO
Collector-emitter breakdown
voltage
IC=-1mA,IB=0
-40
V
V(BR)EBO
Emitter-base breakdown voltage
IE=-10μA,IC=0
-5
V
ICEX
collector cut-off current
VCE=-30V,VEB(OFF)=-3.0V
-
-0.05
μA
IBL
Base cut-off current
VCE=-30V,VEB(OFF)=-3.0V
-
-0.05
μA
hFE
DC current gain
VCE =-1V,IC= -0.1mA
VCE =-1V,IC =-1mA
VCE =-1V,IC =-10mA
VCE =-1V,IC =-50mA
VCE =-1V,IC =-100mA
VCE(sat)
collector-emitter saturation voltage
VBE(sat)
base-emitter saturation voltage
Cobo
60
80
100
60
30
300
-
IC =-10mA,IB =-1mA
-
-250
mV
IC =-50mA,IB =-5mA
-
-400
mV
IC =-10mA,IB =-1mA
-650
-850
mV
IC =-50mA, IB =-5mA
-
-950
mV
Output capacitance
IE =0,VCB=-5V; f =1MHz
-
4.5
pF
Cibo
Input capacitance
IC=0, VEB =-0.5V; f =1MHz
-
10
pF
fT
transition frequency
IC=-1.0mA,VCE=-10V,f=1.0KHz
250
-
MHz
NF
noise figure
IC=-0.1mA,VCE=-20V,f=100MHz
-
4
dB
td
delay time
-
35
ns
tr
rise time
VCC=-3V,VBE(off)=0.5V IC=-10mA
IB1=-IB2=-1mA
-
35
ns
ts
storage time
-
225
ns
tf
fall time
VCC=-3V,IC=-10mA
IB1=-IB2=-1mA
-
75
ns
www.slkormicro.com
2
MMDT3906
TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
www.slkormicro.com
3
MMDT3906
PACKAGE OUTLINE
Plastic surface mounted package
SOT-363
A
SOT-363
E
K
B
D
J
G
H
Dim
Min
Max
A
2.00
2.20
B
1.15
1.35
C
0.95 Typical
D
0.25 Typical
E
0.25
0.40
G
0.60
0.70
H
0.02
0.10
J
C
K
0.10 Typical
2.2
2.4
All Dimensions in mm
SOLDERING FOOTPRINT
0.40
0.65
0.65
0.50
Unit : mm
1.90
PACKAGE
INFORMATION
Device
Package
Shipping
MMDT3906
SOT-363
3000/Tape&Reel
www.slkormicro.com
4
