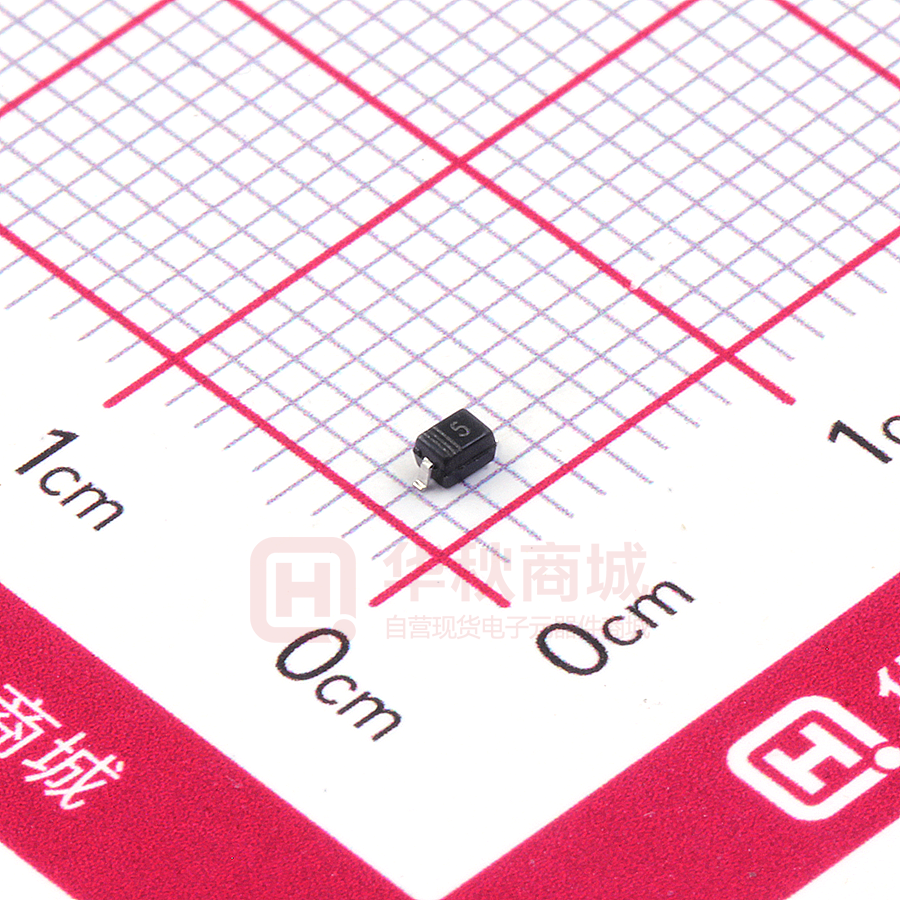

RB751V-40

RB751V-40 Schottky Barrier Diode FEATURES z High reliability z Low voltage; Low inductance z Low VF APPLICATIONS z Low current rectification. SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Limits Unit Peak reverse voltage VRM 40 V DC reverse voltage VR 30 V Mean rectifying current IO 30 mA Peak forward surge current IFSM 200 mA Junction temperature Tj 125 ℃ Storage temperature Tstg -40 to+125 ℃ ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Parameter Symbol Forward voltage Max. Unit Conditions VF 0.37 V IF=1mA Reverse current IR 0.5 μA VR=30v Capacitance between terminals CT pF VR=1V,f=1MHz www.slkormicro.com Min. Typ. 2 1 RB751V-40 TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified PACKAGE OUTLINE Plastic surface mounted package SOD-323 K SOD-323 C A B D H E J Dim Min Max A 1.60 1.80 B 1.20 1.40 C 0.9 Typical D 0.30 Typical E 0.22 0.42 H 0.02 0.1 J K 0.1 Typical 2.55 2.75 All Dimensions in mm www.slkormicro.com 2
