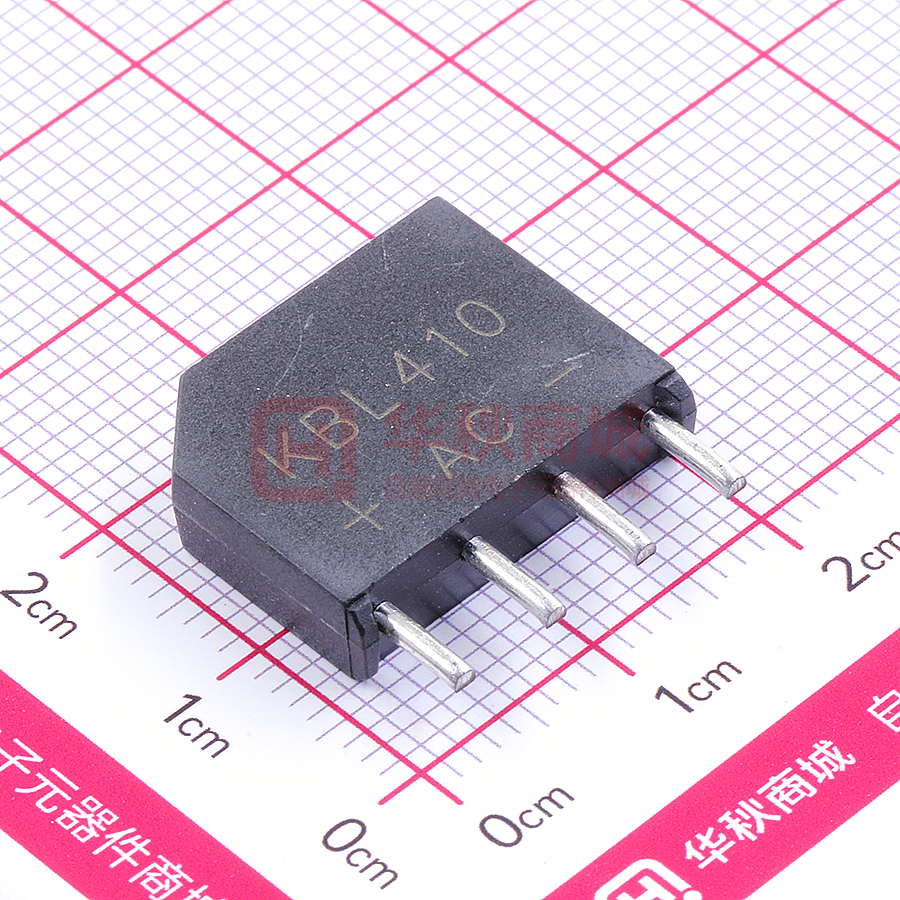

KBL410

KBL4005-KBL410 4. 0 A Single-Phase Silicon Bridge Rectifier Rectifier Reverse Voltage 50 to 1000V KBL Features Ideal for printed circuit board mounting This series is UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Built-in printed circuit board stand-offs High case dielectric strength High temperature soldering guaranteed 260 /5 seconds at 5 lbs (2.3kg) tension Mechanical Data Case: Reliable low cost construction utilizing molded plastic technique Terminals: Plated leads solderable per MIL-STD-202, Method 208 Mounting Position: Any Dimensions in inches and (milimeters) Maximum Ratings & Thermal Characteristics Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz. For Capacitive load derate current by 20%. KBL KBL KBL KBL KBL KBL Parameter Symbol 4005 401 402 404 406 408 VRRM 200 400 800 Maximum repetitive peak reverse voltage 50 600 100 Maximum RMS bridge input voltage Maximum DC blocking voltage Maximum average forward rectified output current at TC=100 C (with heatsink) VRMS 35 VDC 50 70 140 280 100 200 400 KBL 410 1000 unit V 420 560 700 V 600 800 1000 V IF(AV) 4.0 A Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) IFSM 135 A I t 95 A sec TJ, TSTG -55 to + 150 Rating for fusing ( t
