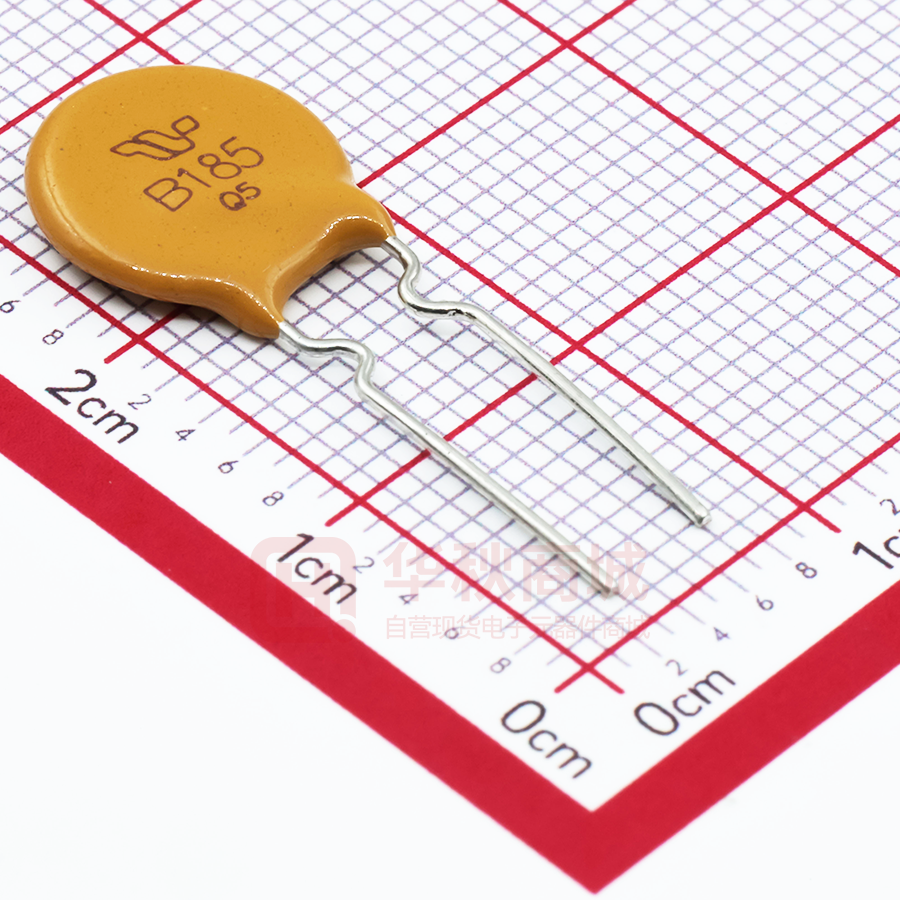

TRB185

Revision: A Date: 2018-04-24 Page No.: 1 OF 1 PPTC RESETTALBE FUSES- 电路保护元器件专业制造商 TRB(30V) Series Features ◆ Radial Leaded Devices ◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements ◆ Bulk Package, or tape and reel available on most models ◆ UL(Pending), C-UL(Pending), TUV(R50322003) ◆ RoHS, Reach, HF compliance Applications Almost anywhere there is a low voltage power supply, up to 30V and a load to be protected, including: ◆ Personal computer ◆ Toys ◆ Industrial controls 电气特性 ： 保持电流 跳脱电流 最大电压 最大电流 最大动作时间 消耗功率 IH, (A) IT, (A) V max, (V) I max, (A) (A) (Sec.) Pd typ, (W) R min, R max, R1max, TRB090 0.90 1.80 30 40 4.50 5.9 0.60 0.090 0.230 0.300 TRB110 1.10 2.20 30 40 5.50 6.6 0.70 0.060 0.160 0.260 TRB120 1.20 2.40 30 40 6.00 6.5 0.70 0.050 0.115 0.255 TRB135 1.35 2.70 30 40 6.75 7.3 0.80 0.040 0.095 0.170 TRB160 1.60 3.2 30 40 8.00 8.0 0.90 0.030 0.095 0.160 TRB185 1.85 3.7 30 40 9.25 8.7 1.00 0.030 0.070 0.110 TRB250 2.50 5.0 30 40 12.5 10.3 1.20 0.020 0.048 0.072 TRB300 3.00 6.00 30 40 15.0 10.8 2.00 0.015 0.050 0.075 TRB400 4.00 8.00 30 40 20.0 12.7 2.50 0.010 0.030 0.045 TRB500 5.00 10.00 30 40 25.0 14.5 3.00 0.008 0.025 0.045 TRB600 6.00 12.00 30 100 30.0 16.0 3.50 0.005 0.020 0.030 TRB700 7.00 14.00 30 100 35.0 17.5 3.80 0.003 0.016 0.025 TRB800 8.00 16.00 30 100 40.0 18.8 4.00 0.004 0.015 0.023 TRB900 9.00 18.00 30 100 40.0 20.0 4.00 0.004 0.010 0.015 P/N 电阻范围（Ω） 产品尺寸 (Unit: mm) ： B185 XX B110 XX Manufacturer's Trademark B090 XX Max. working voltage: A=16V B=30V C=60/72V E=90/120V F=250V G=600V M=265V X 090 Packaging Options: “ - ” Bulk package “ -T ” Tape & Reel XX Style1 Style2 Style3 Lot No Holding current:0.90A TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Revision: A Date: 2018-04-24 Page No.: 1 OF 2 PPTC RESETTALBE FUSES- 电路保护元器件专业制造商 TRB(30V) Series A B C D E Max.(最大) Max.(最大) Typ.(标准) Min.(最小) Max.(最大) TRB090 7.4 14.0 5.1 7.6 3.1 3 0.50 CP TRB110 10.7 16.7 5.1 7.6 3.1 1 0.50 CP TRB120 10.7 16.7 5.1 7.6 3.1 1 0.50 CP TRB135 10.7 16.7 5.1 7.6 3.1 1 0.50 CP TRB160 11.0 16.8 5.1 7.6 3.1 1 0.60 Cu TRB185 11.5 17.9 5.1 7.6 3.1 1 0.60 Cu TRB250 13.0 18.3 5.1 7.6 3.1 2 0.60 Cu TRB300 13.0 18.3 5.1 7.6 3.1 2 0.80 Cu TRB400 16.4 24.8 5.1 7.6 3.1 2 0.80 Cu TRB500 21.3 26.4 10.2 7.6 3.1 2 0.80 Cu TRB600 20.8 29.8 10.2 7.6 3.1 2 0.80 Cu TRB700 20.8 29.8 10.2 7.6 3.1 2 0.80 Cu TRB800 24.2 32.9 10.2 7.6 3.1 2 0.80 Cu TRB900 24.2 32.9 10.2 7.6 3.1 2 0.80 Cu P/N 物理特性 Style(样式) LeadΦmm Material(材料) 环境温度与工作电流关系特性曲线 : P/N 工作环境温度 -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ TRB090 1.40 1.22 1.07 0.90 0.73 0.65 0.57 0.49 0.36 TRB110 1.60 1.43 1.27 1.10 0.91 0.85 0.75 0.67 0.57 TRB120 1.75 1.56 1.39 1.20 0.99 0.93 0.82 0.73 0.62 TRB135 1.96 1.76 1.55 1.35 1.12 1.04 0.92 0.82 0.70 TRB160 2.32 2.08 1.84 1.60 1.33 1.23 1.09 0.98 0.83 1.85 1.54 1.42 1.26 1.13 0.96 TRB185 2.68 2.41 2.13 TRB250 3.63 3.25 2.88 2.50 2.08 1.93 1.70 1.53 1.30 TRB300 4.35 3.90 3.45 3.00 2.49 2.31 2.04 1.83 1.56 TRB400 5.80 5.20 4.60 4.00 3.32 3.08 2.72 2.44 2.08 TRB500 7.25 6.50 5.75 5.00 4.15 3.85 3.40 3.05 2.60 6.00 4.98 4.62 4.08 3.66 3.12 TRB600 8.70 7.80 6.90 TRB700 10.10 9.10 8.05 7.00 5.81 5.39 4.76 4.27 3.64 TRB800 11.60 10.40 9.20 8.00 6.64 6.16 5.44 4.88 4.16 TRB900 13.00 11.70 10.30 9.00 7.47 6.93 6.12 5.49 4.68 TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Revision: A Date: 2018-04-24 Page No.: 1 OF 2 PPTC RESETTALBE FUSES- 电路保护元器件专业制造商 TRB(30V) Series 动作电流时间曲线表 ： A 1000 B C D E F G H I J K L M The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables. 100 Time-to-trip(S) A=TRB090 B=TRB110 C=TRB135 D=TRB160 E=TRB185 F=TRB250 G=TRB300 H=TRB400 I=TRB500 J=TRB600 K=TRB700 L=TRB800 M=TRB900 10 1 0.1 0.01 0.001 1 10 Fault current(A) 100 标准包装数量 ： Model Q’t y/bag TRB090-TRB185 1000pcs TRB250-TRB400 500pcs TRB500-TRB900 200pcs Tape and Reel Specifications Devices taped using EIA468–B/IEC286-2 standards. 6、Agency Recognition： Caution:Operation beyond the rated voltage or current may result in rupture electrical arcing or flame.Specifications are subject to change without notice. TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710
