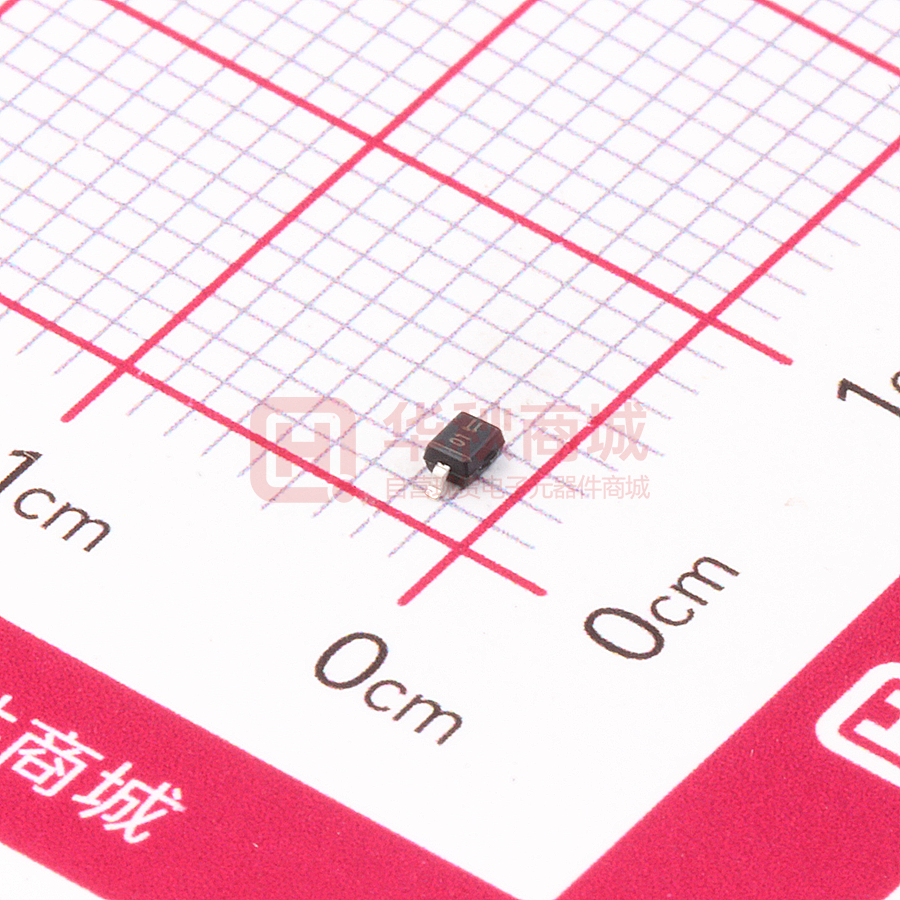

MM3Z2V7

MM3Z2V0 THRU MM3Z75V Silicon Planar Zener Diodes PINNING PIN FEATURES • Total power dissipation: Max. 200mW. • Wide zener reverse voltage range 2.0V to 75V. • Small plastic package suitable for surface mounted design. • Tolerance approximately±5% DESCRIPTION 1 Cathode 2 Anode 2 MECHANICAL DATA ▪Case: SOD-323 ▪Terminals: Solderable per MIL-STD-750, Method 2026 ▪A pprox. Weight: 5.48mg / 0.00019oz 1 Top View Simplified outline SOD-323 and symbol Absolute Maximum Ratings And Characteristics （Ta = 25 °C） Symbol Value Unit Power Dissipation P tot 200 mW Forward Voltage at I F = 10 mA VF 0.9 V RθJA 417 °C/W T j , T stg -55 ~ +150 °C Parameter Typical thermal resistance juncting to ambient (1) Operating and Storage Temperature Range (1) Thermal resistance from junction to ambient at P.C.B. mounted with 2 .0" X 2.0" (54 X 5 cm) copper areas pads. Transient Thermal Impedance（ °C /W） Fig.1 Maximum Continuous Power Derating 0.6 Power Dissipation ( W ) 0.5 0.4 0.3 0.2 0.1 0.0 25 50 75 100 125 150 175 T c ,Case Temperature (°C) REV.08 Fig.2 Typical Transient Thermal Impedance 2000 1000 100 10 0.01 0.1 1 10 t, Pulse Duration（sec） 1 of 3 100 Characteristics at Ta = 25°C Dynamic Impedance Zener Voltage Range （1） Type Marking V ZT（at I ZT） Min（V） Reverse Current I ZT Z ZT（at I ZT） IR at V R Max（μA） （V） Nom（V） Max（V） (mA) Max (Ω) MM3Z2V0 WY 1.8 2.0 2.15 5 100 120 0.5 MM3Z2V2 WZ 2.08 2.2 2.33 5 100 120 0.7 MM3Z2V4 00 2.28 2.4 2.56 5 100 120 1 MM3Z2V7 01 2.5 2.7 2.9 5 110 120 1 MM3Z3V0 02 2.8 3.0 3.2 5 120 50 1 MM3Z3V3 05 3.1 3.3 3.5 5 130 20 1 MM3Z3V6 06 3.4 3.6 3.8 5 130 10 1 MM3Z3V9 07 3.7 3.9 4.1 5 130 5 1 MM3Z4V3 08 4 4.3 4.6 5 130 5 1 4.7 5 5 130 2 1 5.4 5 130 2 1.5 MM3Z4V7 09 4.4 MM3Z5V1 0A 4.8 5.1 MM3Z5V6 0C 5.2 5.6 6 5 80 1 2.5 MM3Z6V2 0E 5.8 6.2 6.6 5 50 1 3 MM3Z6V8 0F 6.4 6.8 7.2 5 30 0.5 3.5 MM3Z7V5 0G 7 7.5 7.9 5 30 0.5 4 MM3Z8V2 0H 7.7 8.2 8.7 5 30 0.5 5 MM3Z9V1 0K 8.5 9.1 9.6 5 30 0.5 6 MM3Z10V 0L 9.4 10 10.6 5 30 0.1 7 MM3Z11V 0M 10.4 11 11.6 5 30 0.1 8 12.7 5 35 0.1 9 0.1 10 0.1 11 MM3Z12V 0N 11.4 12 MM3Z13V 0P 12.4 13 14.1 5 35 MM3Z15V 0T 13.8 15 15.6 5 40 MM3Z16V 0U 15.3 16 17.1 5 40 0.1 12 MM3Z18V 0W 16.8 18 19.1 5 45 0.1 13 MM3Z20V 0Z 18.8 20 21.2 5 50 0.1 15 MM3Z22V 10 20.8 22 23.3 5 55 0.1 17 MM3Z24V 11 22.8 24 25.6 5 60 0.1 19 MM3Z27V 12 25.1 27 28.9 2 70 0.1 21 MM3Z30V 14 28 30 32 2 80 0.1 23 MM3Z33V 18 31 33 35 2 80 0.1 25 0.1 27 MM3Z36V 19 34 36 38 2 90 MM3Z39V 20 37 39 41 2 100 0.1 30 MM3Z43V 21 40 43 46 2 130 0.1 33 MM3Z47V 1A 44 47 50 2 150 0.1 36 MM3Z51V 1C 48 51 54 2 180 0.1 39 MM3Z56V 1D 52 56 60 2 200 0.1 43 MM3Z62V 1E 58 62 66 2 215 0.1 47 MM3Z68V 1F 64 68 72 2 240 0.1 52 MM3Z75V 1G 70 75 79 2 265 0.1 56 （1） V ZT is tested with pulses (20 ms) REV.08 2 of 3 MM3Z2V0 THRU MM3Z75V PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-323 E E D b A C A1 ∠ALL ROUND L1 E1 SOD-323 mechanical data A C D E E1 b L1 A1 max 1.1 0.15 1.4 1.8 2.75 0.4 0.45 0.2 min 0.8 0.08 1.2 1.4 2.55 0.25 0.2 max 43 5.9 55 70 108 16 16 min 32 3.1 47 63 100 9.8 7.9 UNIT ∠ mm 9° mil The recommended mounting pad size 1.4 (55) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) REV.08 3 of 3 8
