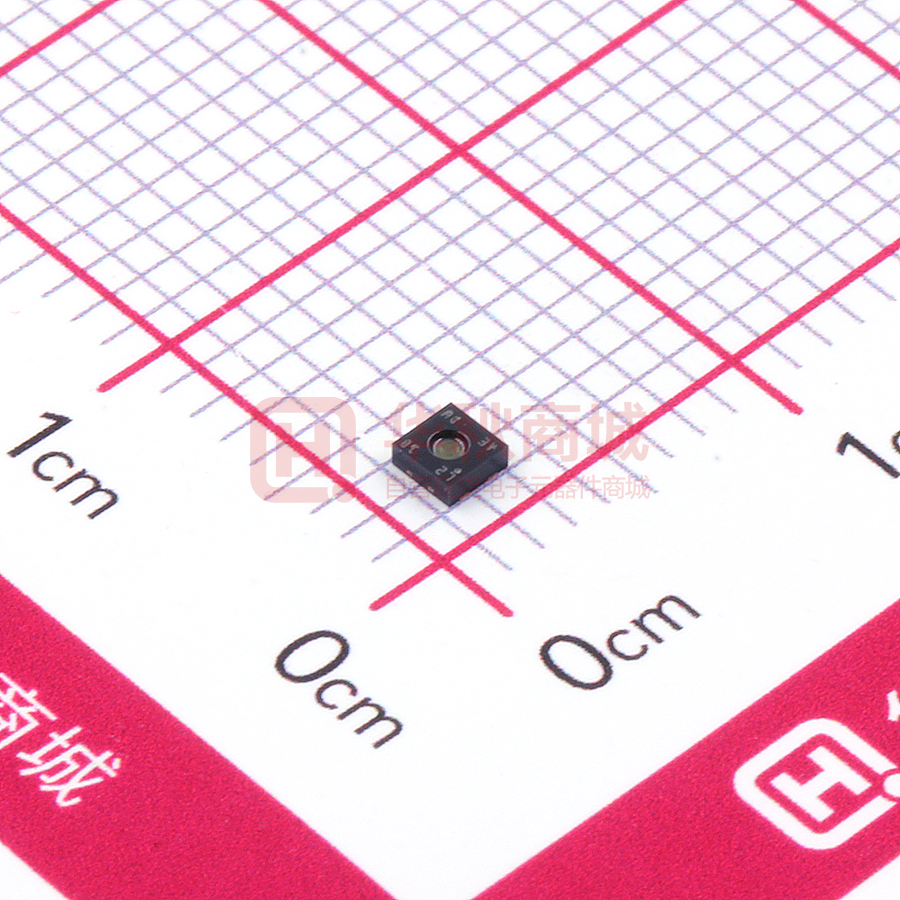

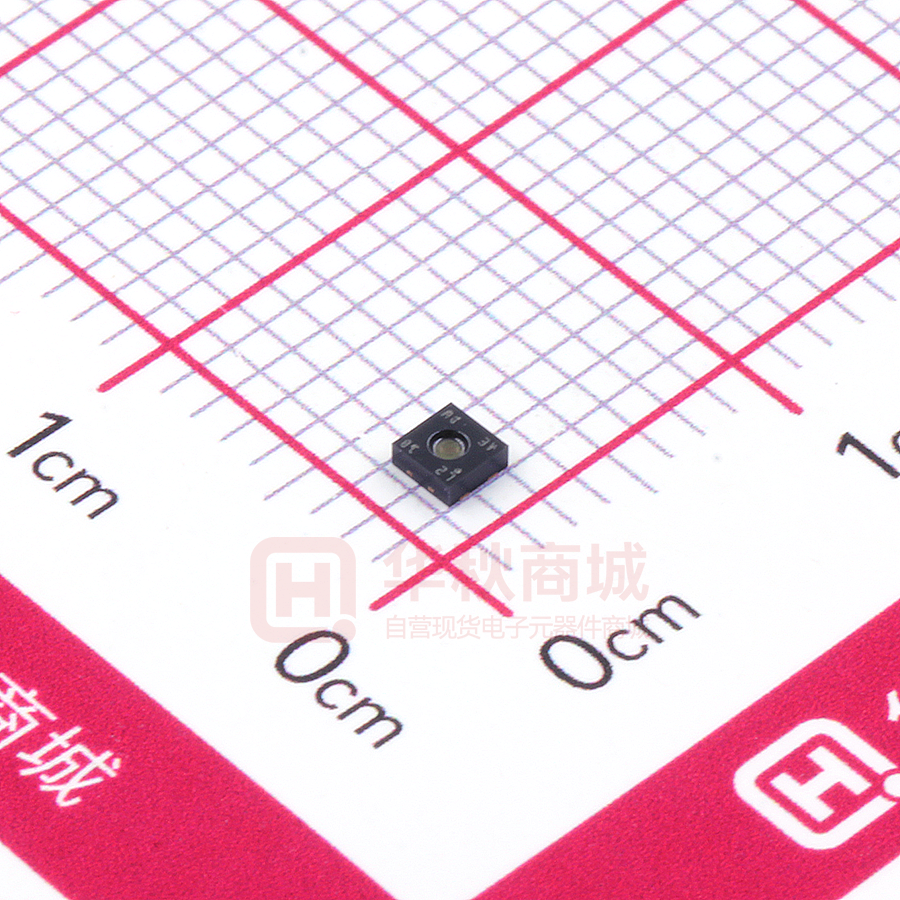

ENS210-LQFM

ENS210 Relative Humidity and Temperature Sensor with I²C Interface ENS210 Datasheet Revision: 2 Release Date: 2021-03-01 Document Status: Production Content Guide General Description ........................ 3 Key Benefits and Features ............................... 3 Applications ....................................................... 4 Block Diagram .................................................... 4 Pin Assignments ............................. 5 Absolute Maximum Ratings ............... 6 Electrical Characteristics.................. 7 I²C Timing Characteristics ............................... 8 Temperature Sensor Characteristics ............. 8 Relative Humidity Sensor Characteristics ..... 9 System Timing Characteristics ...................... 10 Functional Description.................... 11 Temperature Sensor ....................................... 12 Relative Humidity Sensor............................... 13 RH Accuracy at Various Temperatures ......... 14 The I²C Interface............................................. 15 I²C Operations on Registers........................... 15 The I²C Slave Address ..................................... 17 Sensor Control ................................................. 17 Sensor Timing .................................................. 18 The Sensor Readout Registers....................... 20 Computing CRC-7 ............................................ 21 Processing T_VAL and H_VAL ........................ 22 Reading PART_ID and UID .............................. 24 Register SYS_CTRL (Address 0x10) ............... 27 Register SYS_STAT (Address 0x11) ............... 27 Register SENS_RUN (Address 0x21) .............. 28 Register SENS_START (Address 0x22) .......... 28 Register SENS_STOP (Address 0x23) ............ 29 Register SENS_STAT (Address 0x24)............. 29 Register T_VAL (Address 0x30) ..................... 30 Register H_VAL (Address 0x33) ..................... 30 Application Information .................. 31 Typical Application ......................................... 31 Recommended Operating Conditions .......... 32 Soldering & Storage Information ....... 33 Soldering .......................................................... 33 Storage and Handling ..................................... 35 Reconditioning ................................................ 36 After Soldering ................................................ 36 After Extreme Conditions .............................. 36 Package Drawings & Markings ........... 37 Marking Information ....................................... 38 Ordering & Contact Information ........ 39 RoHS Compliant & ScioSense Green Statement .......................... 40 Copyrights & Disclaimer.................. 41 Register Description ....................... 25 Register Overview ........................................... 25 Detailed Register Description ....................... 26 Register PART_ID (Address 0x00).................. 26 Register DIE_REV (Address 0x02) .................. 26 Register UID (Address 0x04) .......................... 26 2 Document Status .......................... 42 Revision Information...................... 43 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE General Description The ENS210 integrates one relative humidity sensor and one high-accuracy temperature sensor. The device is encapsulated in a QFN4 package and includes an I²C slave interface for communication with a master processor. Ordering Information appears at the end of the datasheet. Key Benefits and Features The benefits and features of ENS210, Relative Humidity and Temperature Sensor with I²C Interface are listed below: Figure 1: Added Value of Using ENS210 Benefits Features • Ultra-accurate • Temperature sensor (±0.15°C) • Relative humidity sensor (Typ:±2.0%RH) • Wide sensing range • Temperature operating range (–40°C to 100°C) • Relative humidity operating range (0% to 100%) • Wide operating voltage • 1.71V to 3.60V • Small foot-print • 2.0mm x 2.0mm x 0.75mm • Industry standard two-wire interface • Standard (100kbit/s) and fast (400kbit/s) I²C • Low power • Automatic low-power standby when not measuring • Active current: 6.6μA @ 1Hz (1.8V) • Standby current: 40nA • Cost effective • Digital pre-calibrated relative humidity and temperature sensor • Output directly in %RH and Kelvin • Wide supply voltage range • High reliability • Long-term stability ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 3 CONTENTS PAGE Applications The ENS210 applications include: • Building Automation / Smart home / HVAC1 ◦ Indoor air quality detection ◦ Demand-controlled ventilation ◦ Smart thermostats • Home appliances ◦ Air cleaners / purifiers ◦ Refrigerators, washing machines, dishwashers, dryers • Mobiles / Wearables • IoT devices • Portable devices for personal health and wellness • Weather stations Block Diagram The internal block diagram of ENS210 is shown in Figure 2. The I²C (communication) interface is connected to a controller which acts as the command interpreter and as bus master of the internal Advanced Peripheral Bus (APB). The memory and sensors are slaves of the APB. The MTP memory is used to store the sensor calibration parameters and unique ID. To reduce power consumption the controller only powers the measurement engine when needed. Figure 2: Functional Blocks of ENS210 Note(s): 1. HVAC = Heat, Ventilation and Air Conditioning 4 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE Pin Assignments The ENS210 pin assignment is described in Figure 3 and Figure 4. Figure 3: Pin Diagram of ENS210 Figure 4: Pin Description of ENS210 Pin Number Pin Name Description 1 VDD Supply voltage 2 SCL I²C bus serial clock input (SCL) 3 SDA I²C bus serial bidirectional data line (SDA) 4 VSS Ground supply voltage; must be connected 5 VSS Ground supply voltage; must be connected ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 5 CONTENTS PAGE Absolute Maximum Ratings Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only. Functional operation of the device at these or any other conditions beyond those indicated under Electrical Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Figure 5: Absolute Maximum Ratings of ENS210 Symbol Parameter Min Max Units Comments Electrical Parameters VDD Supply voltage Ilu Latch-up current -0.30 4.60 V 100 mA I/O; –0.5Vdd < VI < 1.5Vdd; Tj < 125°C Electrostatic Discharge ESDHBM Human body model; all pins ±2000 V JEDEC JS-001-2014 ESDCDM Charged model device; all pins ±500 V JEDEC JS-002-2014 Operating and Storage Conditions MSL 6 Moisture sensitivity level Maximum floor life time is unlimited 1 TSTRG Storage temperature 10 50 RHNC Relative humidity (non-condensing) 20 60 %RH TA Operating ambient temperature –40 100 °C HA Operating ambient relative humidity 0 100 %RH °C Preferably in sealed ESD bag ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE Electrical Characteristics All limits are guaranteed. The parameters with min and max values are guaranteed with production tests or SQC (Statistical Quality Control) methods. Figure 6: Electrical Characteristics Symbol VDD Parameter Supply voltage Conditions Max ripple 100mVPP between 0-1MHz Min 1.71 Standby state IDD Supply current Continuous run mode T and RH measurement at 1Hz Typ (1) Max Unit 1.80 (3.30) 3.60 V 0.04 (0.5) μA 58 (61) μA 6.6 (7.1) μA VIH High-level input voltage 0.7×VDD VDD+0.5 V VIL Low-level input voltage –0.5 0.3×VDD V IOL Low-level output current VOL = 0.4V 3 mA VOL = 0.6V 6 mA Note(s): 1.Values in parenthesis are for VDD=3.30 V. 2.TA = 25 °C and at 1.80 V supply voltage, unless otherwise specified ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 7 CONTENTS PAGE I²C Timing Characteristics ENS210 is compliant to the I²C standard; it supports standard and fast mode as per I²C-bus specifications [UM10204, I²C-bus specification and user manual, Rev. 6, 4 April 2014]. Temperature Sensor Characteristics Figure 7: Temperature Sensor Characteristics Symbol Parameter Conditions Trange Temperature range Tacc Temperature accuracy 3 Tres Temperature resolution tresp Response time 2 T step of 10°C by submersion (in 0°C to 70°C range); τ63 % 1 Trep Temperature repeatability 3σ of consecutive measurement values at constant conditions ΔT Temperature long term drift Min Typ -40 TA = 0°C to 70°C; 0.15 TA = −40°C to 100°C; Max 100 °C 0.2 °C 0.3 °C 0.016 °C 1 -0.1 s 0.1 0.005 Unit °C °C/year Note(s): 1.63% indicates that if a T step of 10°C, e.g. from 20°C to 30°C is made, it will take tresp seconds to reach 63% of that step. 2.In an application the temperature response time depends on heat conductivity of the sensor PCB. 3. Typical and maximum accuracy specification refers to, respectively, 2 and 3 standard deviations, assuming normal distribution of accuracy errors. After industrial calibration, on each production lot through statistical analysis, a population of sensors is tested on typical room conditions (e.g. 25°C, 45%RH) and only lots passing the verification qualify for customer deliveries. 8 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE Relative Humidity Sensor Characteristics Figure 8: Relative Humidity Sensor Characteristics Symbol Parameter Hrange Relative humidity range Hacc Relative humidity accuracy 3 Hres Conditions Typ 0 Max Unit 100 %RH TA=25°C; RH=0%RH to 85% RH; excluding hysteresis 2 3 %RH TA=25°C; RH=>85%RH to 95% RH; excluding hysteresis 3 4 %RH Relative humidity resolution 4 Min 0.03 RH step of 20%RH (in 40%RH to 80%RH range); τ63%1; 1m/s flow; TA = 25°C %RH tresp Response time 3 s Hhys Relative humidity hysteresis TA = 25°C; RH = 20%RH to 90%RH; 2 hours exposure time ±0.55 %RH Hrep Relative humidity repeatability 3σ of consecutive measurement values at TA = 25°C and RH = 40%RH ±0.1 %RH ΔH Relative humidity long term drift 2 TA = 25°C 0.25 %RH/year Note(s): 1.63% indicates that if an RH step of 20%RH is made, e.g. from 40%RH to 60%RH, it will take t resp seconds to reach 63% of that step. 2. Values are linearized averages over the lifetime of the product. Due to non-linear behavior a larger drift is expected in the first years. 3. Typical and maximum accuracy specification refers to, respectively, 2 and 3 standard deviations, assuming normal distribution of accuracy error. 4. Device only performance. Application response time will depend on the design-in of the sensor ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 9 CONTENTS PAGE System Timing Characteristics Figure 9: System Timing Characteristics Symbol Parameter tbooting Booting time 1 tconv Conditions Min Typ Max Unit 1 1.2 ms T only, single shot (includes tbooting) 105 110 ms T only, continuous 104 109 ms T and RH, single shot (includes tbooting) 122 130 ms T and RH, continuous 225 238 ms Conversion time Note(s): 1. Time in transient state booting (see Figure 10). 10 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE Functional Description The ENS210 integrates two sensor blocks: temperature and relative humidity. The device is normally in the standby state (Figure 10): the measurement engine (see Figure 2) is unpowered, but the I²C interface is operational and register write/read operation can be performed. When a measurement command is given, the device is first booting to active then it starts a measurement. When the measurement is completed, the device returns to the standby state. Since the I²C interface is operational in standby, the measurement result can be read out. Figure 10: The ENS210 Power States In continuous run mode (see Register SENS_RUN) or when low power is disabled (see Register SYS_CTRL), the device remains in active state. The system power status is observable (see Register SENS_STAT). When powering up from off, the device is first booting to active, but then falls immediately back to standby (since no measurement is pending, and by default low power is enabled). Note that the booting state is a transient state (the system automatically transitions to the next state – active); the booting time is given in Figure 9. ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 11 CONTENTS PAGE Temperature Sensor The temperature sensor block (Figure 11) determines the ambient temperature, and outputs a calibrated value in Kelvin. Figure 11: Band Gap Temperature Measurement The temperature is measured using a high-precision (12 bits) zoom-ADC. The analog part is able to measure a strongly temperature dependent X = VBE/ΔVBE. The X is found by first applying a coarse search (successive approximation), and then a sigma-delta in a limited range. The accuracy of the sensor is shown in Figure 12. The conversion time is shown in Figure 9. Figure 12: Absolute Accuracy of the Temperature Sensor Note(s): 1. Dash line indicates natural physical behavior 12 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE Relative Humidity Sensor The relative humidity sensor as shown in Figure 13 determines the ambient relative humidity and outputs a calibrated value in %RH. The transducer (the CX on the top left) consists of a large-area capacitor covered with a humidity-sensitive material. The capacitance change is proportional to the change in relative humidity, and has a linear dependence on temperature. The capacitance is measured by a high-precision 2nd order sigma-delta converter. Figure 13: Relative Humidity Sensor Reading the relative humidity sensor will output a temperature compensated value. The accuracy of the sensor is shown in Figure 14. The conversion time is shown in Figure 9. Figure 14: Absolute Accuracy of the Relative Humidity Sensor at 25°C Max Typ Note(s): 1. Dash line indicates natural physical behavior ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 13 CONTENTS PAGE RH Accuracy at Various Temperatures Typical RH accuracy at 25°C is defined in Figures 8 and 14. The relative humidity accuracy has also been evaluated at temperatures other than 25°C. The values shown in Figure 15 are an indication only, which may be important for your application, but are not guaranteed. Figure 15: Accuracy of Relative Humidity Measurements (%RH) as Function of Temperature and Relative Humidity Absolute accuracy of relative humidity measurements (%RH) (typical values) 100 ±4.5 ±5.5 ±3 90 ±3.5 ±4.5 ±3.5 80 Relative humidity (%RH) 70 60 ±2.5 50 ±2.5 ±3.5 ±2 40 30 ±3.5 20 ±3.5 ±4.5 ±3 ±3 10 0 0 +5 +15 +25 +35 +45 +55 +65 Temperature (°C) 14 ENS210 Datasheet SC-000897-DS-2 / Issue 2 / Issued 04-Dec-2020 CONTENTS PAGE The I²C Interface The ENS210 is an I²C slave device. The I²C interface supports standard (100kbit/s) and fast (400kbit/s) mode. Details on I²C protocol is according to I²C-bus specifications [UM10204, I²C-bus specification and user manual, Rev. 6, 4 April 2014]. The device applies all mandatory I²C protocol features for slaves: START, STOP, Acknowledge, 7-bit slave address. ENS210 does not use clock stretching. None of the other optional features (10-bit slave address, General Call, Software reset, or Device ID) are supported, nor are the master features (Synchronization, Arbitration, START byte). I²C Operations on Registers The ENS210 uses a register model to interact with it. This means that an I²C master can write a value to one of the registers of a slave, or that it can read from one of the registers of the slave. In the ENS210, registers are addressed using 1 byte. The values stored in a register are also 1 byte. However, the ENS210 implements “auto increment” which means that it is possible to read, for example, two bytes by supplying the address of the first byte and then reading two bytes. Figure 16: I²C Transaction Formats A typical write transaction (see Figure 16) therefore has the following format. The master initiates a transaction with a so-called start condition “s”. This blocks the bus. Next, the master sends the 7 bits ENS210 slave address followed by a 1 bit direction (a 0 indicating write “w”). This byte is acknowledged “a” by the slave. The master continues by sending the 8 bit register address, which is acknowledged by the slave. ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 15 CONTENTS PAGE This register address is stored in an internal CRA register (“Current Register Address”). Finally, the master sends the 8 bit register value, which is acknowledged by the slave (or nack’ed when the address is not writeable). This value is written to the register pointed to by the CRA, and the CRA is incremented by 1.Optionally, the master sends more 8 bit values, for the next registers (auto incrementing CRA), each of which is (n)ack’ed by the slave. Finally, the master generates a stop condition “p”, unblocking the bus for other transactions. A read transaction (see Figure 16) starts with a write (of the register address), followed by a read. Consequently, it has the following format. The master initiates the transaction with a start condition. Next, the master sends the 7 bits ENS210 slave address followed by a 1 bit direction (a 0 indicating write). This byte is acknowledged by the slave. The master continues by sending the 8 bit register address, which is acknowledged by the slave and stored in the CRA register. Then the master sends another start condition (a so-called repeated start condition, keeping the bus blocked) followed by the 7 bits ENS210 slave address followed by a 1 bit direction (a 1 indicating read “r”), which is acknowledged by the slave. Next, the slave sends an 8 bits register value from the register pointed to by the CRA register, and the CRA is incremented by 1. This byte is acknowledged by the master. The master may read another 8 bits (auto increment feature) from the slave and acknowledge that, until the master sends a nack “n” followed by a stop to unblock the bus. The ENS210 has an 8 bit address space, potentially addressing 256 registers. In reality, only few addresses are actually backed by a register (see Register Overview). All other addresses are reserved. A write transaction to a reserved (or read-only) register causes a not-acknowledge. A read transaction for a reserved register will return a 0. 16 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE The I²C Slave Address The ENS210 is an I²C slave device with a fixed slave address of 0x43. This means that the first byte after a start condition is 1000 011x, where x indicates the data direction, so 0x86 (1000 0110) for write and 0x87 (1000 0111) for read. Sensor Control The ENS210 contains a temperature and a relative humidity sensor. Both sensors have two run modes: single shot run mode and continuous run mode (enabled via SENS_RUN), see Figure 17. Figure 17: The Sensor Modes When in the single shot run mode, starting a measurement is under control of the master. By default a sensor is idle; it can be started by writing a 1 to the corresponding bit in SENS_START. After a start, the sensor stops when the measurement is completed. Whether a sensor is idle or active measuring can be detected by reading SENS_STAT. The measured values can be obtained via their respective readout registers (T_VAL and H_ VAL). Writing to SENS_STOP in single shot has no effect. When in the continuous run mode, the sensor performs measurement after measurement after a 1 is written to the corresponding bit in SENS_START. The result of each measurement is stored in the aforementioned readout registers. Writing 1 to the corresponding bit in SENS_STOP stops the repeat cycle after the ongoing measurement is completed. ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 17 CONTENTS PAGE The device operates in a step-wise way. In each step, either one or both sensors are active. The step ends when the measurement(s) are completed. For the next step, the device inspects its register settings, and either one or both sensors are activated again, or there is no measurement request and the device goes into standby (unless low power is disabled by SYS_ CTRL). This means that multiple writes to START during a step have no effect; the measurement is started once, and only a write to START after the measurement has completed starts the measurement again. Similarly, multiple writes to STOP have no effect; when the measurement completes (in continuous mode) the stop request is effectuated once. When START and STOP are both requested, the measurement is started, and when completed, stopped. Sensor Timing There are differences between single shot measurements and continuous measurements. Figure 18 shows the timing of a single shot T measurement. Figure 18: Single Shot Temperature Measurement Signal T_RUN is written low to select a single shot measurement. Note that T_STOP is typically low (cleared by a previous measurement), but its state is ignored in a single shot measurement. T_START is written high to start measuring: T_VALID in T_VAL is cleared and the device starts booting to active. Once active SYS_ACTIVE goes high, and measurement starts (T_STAT goes high). When the measurement is completed (T_STAT goes low) the data register (T_DATA) becomes valid (T_VALID goes high) and the device goes back to standby (SYS_ACTIVE goes low). The T_START and T_STOP are cleared. 18 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE Figure 19 shows the timing of a continuous T measurement. Figure 19: Continuous Temperature Measurement Signal T_RUN is written high to select a continuous measurement. Note that T_STOP is typically low (cleared by a previous measurement), and it should stay low otherwise continuous mode will stop after one measurement. T_START is written high to start measuring: T_VALID in T_VAL is cleared and the device starts booting to active. Once active SYS_ACTIVE goes high, and measurement starts (T_STAT goes high). When the first measurement is completed the data register (T_DATA) becomes valid (T_VALID goes high), and the device starts a new measurement. When the next measurement is completed the data register (T_DATA) is updated; T_VALID stays high. The device starts a new measurement. At some point in time, a stop command is given (T_STOP is written high). As soon as the current measurement is completed, the data register (T_DATA) is once more updated and the device goes back to standby (SYS_ACTIVE goes low). The T_START and T_STOP are cleared. Note that writes to the SENS_XXX registers only take effect when no measurement is ongoing. In other words, measurements are always sequential (so we can have three types: T only, RH only or T and RH and changes occur when the measurements are finished. ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 19 CONTENTS PAGE The Sensor Readout Registers The sensor readout registers (T_VAL and H_VAL) consist of three parts: the actual measured data, a valid flag and a checksum (see Figure 20). It is not mandatory to read the valid flag or the checksum when reading the data. Figure 20: The Layout of the Sensor Readout Registers The checksum is a cyclic redundancy check over the data and the valid flag; the stored checksum is the result of CRC-7 (polynomial x7+x3+1, see https://en.wikipedia.org/wiki/Cyclic_ redundancy_check) with 0x7F as initial vector (i.e. with all bits flipped), see Computing CRC-7 for sample C code. The valid flag is cleared when a measurement is started (irrespective of the run mode). Once the measurement is completed the valid flag is set. In continuous mode, a new measurement is then started without clearing the valid flag; so data is always valid after the first measurement (but it might be several milliseconds old). The data field is a 16 bits fixed point number, whose format and unit depends on the sensor (see Register T_VAL and Register H_VAL). To ensure consistent view, these multi-byte readout registers are double buffered. When the first byte (i.e. the byte with the lowest register address) is read, the device copies all bytes from the measurement registers to the I²C registers, and then the value from the first I²C register is returned. Reads to the other bytes of the multi-byte register (i.e. with higher register addresses) are always directly from the I²C registers. 20 ENS210 Datasheet SC-000897-DS-3 / 2021-03-01 CONTENTS PAGE Computing CRC-7 CRC algorithm uses a 7 bit polynomial (see lines 4, 5, and 6), and a 17 bit payload. The crc7() function below uses the following constants defining the CRC width, (the coefficients of the) polynomial and the initial vector (start value of the CRC), and some constants describing the payload data size. // // Polynomial // 0b 0x 7654 1000 8 3211 1001 ~ x^7+x^3+x^0 9 #define CRC7WIDTH #define CRC7POLY #define CRC7IVEC // Payload data 7 // 7 bits CRC has polynomial of 7th order (has 8 terms) 0x89 // The 8 coefficients of the polynomial 0x7F // Initial vector has all 7 bits high #define DATA7WIDTH #define DATA7MASK #define DATA7MSB 17 ((1UL
