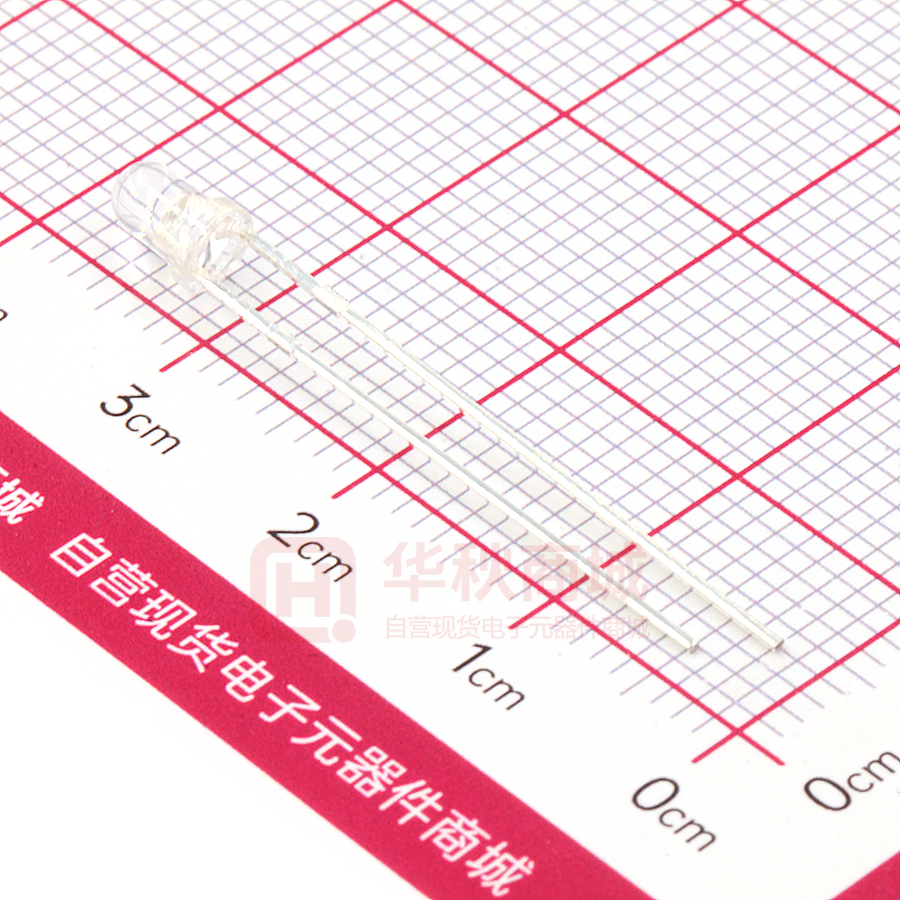

HL-304IR3C-L3
HL-304IR3C-L3
Features
•Mechanically and spectrally matchend to
the phototransistor.
•Rohs compliant.
Package Dimensions
Description
This devices are made with PIN GaAs.
3.85
5.3
2.54
0.5
2.94
1
29.0
1.5MAX
2
2
1
3
1
1.5
Dimension Tolerance (UNIT:mm)
Tolerance
Grade
0.5~3
3~6
6~30
30~120
±0.1
±0.2
±0.3
±0.5
Chip
SPEC NO:
Lens Color
Material
Emitting Color
GaAs
/
REV NO:A/2
Water Clear
DATE:Mar/08/2011
PDF 文件使用 "pdfFactory Pro" 试用版本创建 ÿwww.fineprint.com.cn
PAGE:1/4
HL-304IR3C-L3
Selection Guide
Radiant Intensity(mW/sr)
IF=50mA
Part No
HL-304IR3C-L3
Viewing
Angle
Min
Typ
2θ1/2
(供参考)
--
26
40
Note:
1. 2θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2.Tolerance of measurement of luminous intensity±15%.
Electrical / Optical Characteristics at TA=25°C
Item
Symbol
Min
Typ
Units
Forward Voltage
VF
1.2
1.5
V
Reverse Current
IR
--
10
uA
λD
--
940
nm
Δλ1/2
--
50
nm
Test Conditions
IF=50mA
Peak Spectral Wavelength
Spectral Bandwidth
Note:
1.Tolerance of measurement of forward voltage±0.1V.
2.Tolerance of measurement of peak Wavelength±2.0nm.
Absolute Maximum ratings at Ta=25℃
Parameter
Symbol
IR1
Units
Power Dissipation
Pt
100
mW
DC Forward Current
IF
50
mA
Peak Forward Current[1]
IFS
300
mA
Operating Temperature
-30℃~80℃
Storage Temperature
-30℃~80℃
Note:
1.IFP Conditions:Pulse Width≤10msec
2.Tsol Conditions:3mm from the base of the epoxy bulb
SPEC NO:
REV NO:A/2
DATE:Mar/08/2011
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
PAGE:2/4
HL-304IR3C-L3
RELATIVE RADIANT INTENSITY
100
80
60
IR1
40
20
0
600
700
900
800
1000
WAVELENGTH λ(nm)
Forward Current vs.Forward Voltage
0° 10° 20°
Relative Radaint Power
2.0
30°
1.5
40°
1.0
1.0
50°
0.5
0.9
0.8
0.7
60°
70°
80°
90°
0
-40
-20
0
20
40
60
0.5 0.3 0.1 0.2 0.4 0.6
80
Ambient Temperature Ta(℃)
Spatial Distribution
Radint Power Vs.Ambient Temperature
3.0
Radiant Power
Relative Value at IF=20mA
Forward Current If(mA)
60
50
40
30
20
10
0
0.8
1.0
1.2
1.4
1.6
1.8
Forward Voltage VF(V)
2.0
2.5
2.0
1.5
1.0
0.5
0
0
10
20
30
40
50
60
If-Forward current (mA)
Remarks:
If special sorting is required (e.g.binning based on forward voltage or radiant intensity/luminous flux),the typical
accuracy of the sorting process is as follows:
1. Radiant intensity/Luminous Flux:±15%.
2. Forward Voltage:±0.1V.
Note:Accuracy may depend on the sorting parameters.
SPEC NO:
REV NO:A/2
DATE:Mar/08/2011
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
PAGE:3/4
HL-304IR3C-L3
Soldering:
1. Manual Of Soldering
The temperature of the iron tip should not be higher than 300℃and Soldering within 3 seconds per
solder-land is to be observed.
2. DIP soldering (Wave Soldering):
Preheating:120℃~150℃,within 120~180 sec.
Operation heating:245℃±5℃ within 5 sec.260℃(Max)
Gradual Cooling (Avoid quenching).
SPEC NO:
REV NO:A/2
DATE:Mar/08/2011
PDF 文件使用 "pdfFactory Pro" 试用版本创建 ÿwww.fineprint.com.cn
PAGE:4/4
