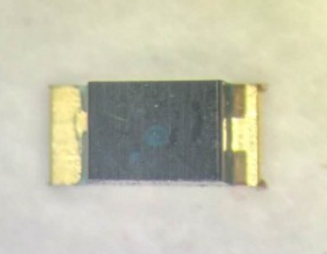

HL-PST-1608PT1F

RoHS Specification Client Name： Client P/N： Factory P/N：HL-PST-1608PT1F Sending Date： Client approval Approval Audit Confirmation Hong li approval Approval Audit Confirmation 杨梅刚 □ Qualified □ Unqualified DATE: Adr：West side of Dongfeng Highway,Auto City,Huadu District,Guangzhou,China Tel：020-86733333（Switchboard） Fax：020-86733883 86733938 86733265 Web：www.honglitronic.com SPEC NO：B-18-A-1171 REV NO: A/1 DATE: AUG/23/2018 PAGE: 1 OF 5 HL-PST-1608PT1F Features Extremely Suitable Available Moisture RoHS narrow viewing angle for all SMT assembly and solder process on tape and reel sensitivity level: Level 4 compliant Description PT1C made with GaAs infrared chips Recommended Soldering Pattern Package Dimensions 1 2.60 [0.10] 2 1 2.60 [0.10] 2.60 [0.10] 0.50 [0.02] 2.40 [0.09] 2.40 [0.09] 0.50 [0.02] 0.60 [0.02] 1.10 [0.04] 2 3.00 [0.12] 2.00 [0.08] 2.00 [0.08] 3.00 [0.12] 1.00 [0.04] 2 1 1.00 [0.04] 2 1 2 1 Notes: 1. All dimension units are millimeters. 2.All dimension tolerance is ±0.15mm unless otherwise noted. SPEC NO：B-18-A-1171 REV NO: A/1 2 DATE: AUG/23/2018 1 PAGE: 2 OF 5 HL-PST-1608PT1F Electrical / Optical Characteristics at TA=25°C Symbol Parameter Min Typ Max Unit s Test Conditions VBR CEO Collector-Emitter Breakdown Voltage 30 - 100 V Ic=100uA Ee=0mW/cm2 VBR ECO Emitter-to–Collector Breakdown Voltage 6.5 - - V Ie=100uA Ee=0mW/cm2 VCE (SAT) Collector-to-Emitter Saturation Voltage - - 0.2 V Ic=100uA Ee=20mW/cm2 ICEO Collector Dark Current - - 100 nA VCE=100uA Ee=0mW/cm2 TR Rise Time (10% to 90%) - 15 - us TF Fall Time (90% to 10%) - 15 - us I(ON) On State Collector Current 0.1 0.5 - mA VCE=5V IC=1mA RL=1000Ω VCE=5V Ee=1mW/cm2 λ=940nm Symbol Parameter Min Max Units Test Conditions (符号) (参数) (最小) (最大) (单位) 测试条件 On State Collector Current 2 2.5 （接收器电 2.5 3 mA 流） VCE=5V Ee=1mW/cm2 λ=940nm 3 3.5 ICE Absolute Maximum ratings at Ta=25℃ Parameter Max Ratings Collector-to-Emitter Breakdown Voltage 55V Emitter-to-Collector Breakdown Voltage 6.5V Power Dissipation at (or below) 25℃ Free Air Temperature 100mW Operating Temperature Range -30℃~80℃ Storage Temperature Range -30℃~80℃ Lead Soldering Temperature (>3mm for 5sec) 260℃ Note: 1. 1/10 Duty cycle, 0.1ms pulse width. 2. The above forward voltage measurement allowance tolerance ±0.1V. SPEC NO：B-18-A-1171 REV NO: A/1 DATE: AUG/23/2018 PAGE: 3 OF 5 HL-PST-1608PT1F SMT Reflow Soldering Instructions 1.Reflow soldering should not be done more than two times 2.When soldering , do not put stress on the LEDs during heating Soldering iron 1.When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds 2.The hand solder should be done only one times Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of LEDs will or will not be damaged by repairing. SPEC NO：B-18-A-1171 REV NO: A/1 DATE: AUG/23/2018 PAGE: 4 OF 5 HL-PST-1608PT1F Label IV: Luminous intensity rank WD: Dominate Wavelength VF: Forward voltage rank Reel Dimensions 178.00±0.20 60.00±0.40 Tape Specifications (Units : mm) 13 0 .3 ±0 .50 8.00±0.50 Moisture Resistant Packaging Note: The tolerances unless mentioned is ±0.1mm , Unit: mm SPEC NO：B-18-A-1171 REV NO: A/1 DATE: AUG/23/2018 PAGE: 5 OF 5 修订次数 修订人 修订内容 修订日期 版次 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 SPEC NO：B-18-A-1171 REV NO: A/1 DATE: AUG/23/2018 PAGE: 6 OF 5
