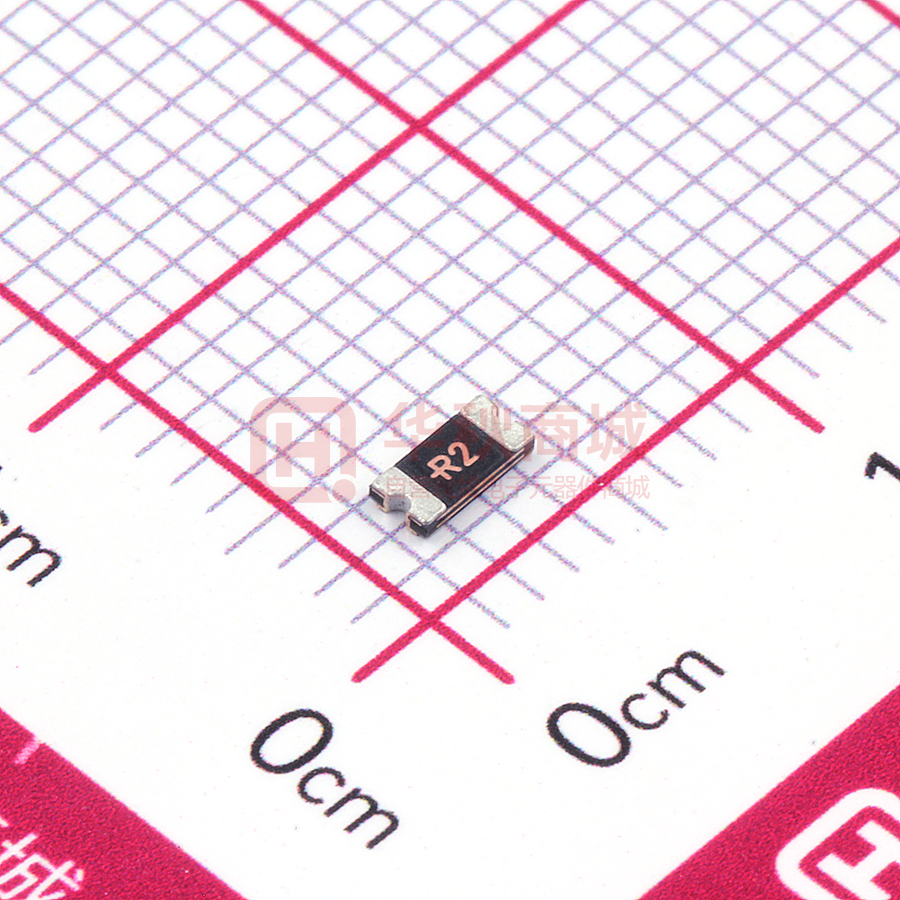

SMD1206P020TF

Positive Thermal Coefficient (PTC) SMD1206 Series Description The 1206 series provides miniature surface mount overcurrent protection with holding current from 0.05A to 4.5A. This series is suitable for wide range of applications in modern electronics where space is limited. Features Applications  I(hold): 0.05~4.5A  USB peripherals  PDAs / digital cameras  Very high voltage surge capabilities  Disk drives  Game console port  Available in lead-free version  CD-ROMs  Fast response to fault current  General electronics  RoHS compliant, Lead- Free and Halogen-Free  Disk drives for motherboards and  Low resistance  Set-top-box and HDMI peripherals  Compact design saves board space  Mobile Internet Device  Compatible with high temperature solders protection  Plug and play protection  Mobile phones - battery (MID) and port protection Part Number Code S M D 1 Surface Mount Device 2 0 Device size code 6 P Polytronics Symbol x x x Current Rating T F T: Thin Version (Optional) / x x Special Voltage Rating (Optional) F: Lead-free Environmental Specifications Test Conditions Resistance change Passive aging +85℃,1000 hrs ±5% typical Humidity aging +85℃，85%R.H.,168 hours ±5% typical Thermal shock +85℃ to -40℃，20times ±33% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change Ambient operating conditions : - 40°C to +85°C Maximum surface temperature of the device in the tripped state is 125 °C Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Page 1 Positive Thermal Coefficient (PTC) SMD1206 Series Performance Specification Max. Time to Trip Current Tmax A S Ihold Itrip Vmax Imax Pd typ Rimin R1max A A VDC A W Ω Ω SMD1206P005TF 0.05 0.15 60 0.25 1.50 10 0.4 3.60 50 1206 SMD1206P010TF 0.10 0.25 60 0.50 1.00 10 0.4 1.60 15 1206 SMD1206P012TF 0.12 0.29 60 0.50 1.00 10 0.4 1.35 10 1206 SMD1206P012TF/48 0.12 0.29 48 0.50 1.00 10 0.4 1.35 10 1206 SMD1206P016TF 0.16 0.37 16 1.00 0.30 10 0.4 1.00 6 1206 SMD1206P016TF/24 0.16 0.37 24 1.00 0.30 10 0.4 1.00 6 1206 SMD1206P016TF/33 0.16 0.37 33 1.00 0.30 10 0.4 1.00 6 1206 SMD1206P020TF 0.20 0.46 24 8.00 0.08 10 0.6 0.35 2.7 1206 SMD1206P020TF/30 0.20 0.46 30 8.00 0.08 10 0.6 0.35 2.7 1206 SMD1206P025TF 0.25 0.50 16 8.00 0.08 10 0.6 0.35 2.5 1206 SMD1206P025TF/24 0.25 0.50 24 8.00 0.08 10 0.6 0.35 2.5 1206 SMD1206P025TF/30 0.25 0.50 30 8.00 0.08 10 0.6 0.35 2.5 1206 SMD1206P035TF 0.35 0.75 6 8.00 0.10 35 0.6 0.25 1.3 1206 SMD1206P035TF/16 0.35 0.75 16 8.00 0.10 35 0.6 0.25 1.3 1206 SMD1206P035TF/30 0.35 0.75 30 8.00 0.10 35 0.6 0.25 1.3 1206 SMD1206P050TF 0.50 1.00 6 8.00 0.10 35 0.6 0.15 0.7 1206 SMD1206P050TF/13.2 0.50 1.00 13.2 8.00 0.10 35 0.6 0.15 0.7 1206 SMD1206P050TF/16 0.50 1.00 16 8.00 0.10 35 0.6 0.15 0.7 1206 SMD1206P050TF/24 0.50 1.00 24 8.00 0.10 35 0.6 0.15 0.7 1206 SMD1206P050TF/30 0.50 1.00 30 8.00 0.10 35 0.6 0.15 0.7 1206 SMD1206P075TF 0.75 1.50 6 8.00 0.20 35 0.6 0.09 0.5 1206 SMD1206P075TF/13.2 0.75 1.50 13.2 8.00 0.20 35 0.6 0.09 0.5 1206 SMD1206P075TF/16 0.75 1.50 16 8.00 0.20 35 0.6 0.09 0.5 1206 SMD1206P075TF/24 0.75 1.50 24 8.00 0.20 35 0.6 0.09 0.5 1206 SMD1206P075TF/30 0.75 1.50 30 8.00 0.20 35 0.6 0.09 0.5 1206 SMD1206P100TF 1.00 1.80 6 8.00 0.30 35 0.6 0.05 0.27 1206 SMD1206P100TF/16 1.00 1.80 16 8.00 0.30 35 0.6 0.05 0.27 1206 SMD1206P100TF/24 1.00 1.80 24 8.00 0.30 35 0.6 0.05 0.27 1206 SMD1206P110TF 1.10 2.20 6 8.00 0.30 35 0.6 0.04 0.25 1206 SMD1206P110TF/16 1.10 2.20 16 8.00 0.30 35 0.6 0.04 0.25 1206 SMD1206P110TF/24 1.10 2.20 24 8.00 0.30 35 0.6 0.04 0.25 1206 SMD1206P150TF 1.50 3.00 6 8.00 0.30 35 0.8 0.025 0.13 1206 SMD1206P150TF/13.2 1.50 3.00 13.2 8.00 0.30 35 0.8 0.025 0.13 1206 SMD1206P150TF/16 1.50 3.00 16 8.00 0.30 35 0.8 0.025 0.13 1206 SMD1206P200TF 2.00 3.50 6 8.00 1.50 35 0.8 0.015 0.08 1206 SMD1206P200TF/12 2.00 3.50 12 8.00 1.50 35 0.8 0.015 0.08 1206 Type Number Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Package Page 2 Positive Thermal Coefficient (PTC) Max. Time to Trip Current Tmax A S Ihold Itrip Vmax A A VDC SMD1206P200TF/16 2.00 3.50 16 8.00 SMD1206P250TF 2.50 5.00 6 SMD1206P250TF/12 2.50 5.00 SMD1206P260TF 2.60 SMD1206P300TF SMD1206 Series Imax Pd typ Rimin R1max A W Ω Ω 1.50 35 0.8 0.015 0.08 1206 8.00 2.00 35 0.8 0.01 0.06 1206 12 8.00 2.00 35 0.8 0.01 0.06 1206 5.20 6 8.00 2.00 35 0.8 0.01 0.06 1206 3.00 6 6 8.00 4.00 35 1.0 0.01 0.05 1206 SMD1206P350TF 3.50 7 6 10.00 5.00 35 1.2 0.005 0.04 1206 SMD1206P450TF 4.50 9 6 22.5 2.00 50 1.0 0.002 0.012 1206 Type Number Package Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (V max). I hold = Hold Current. Maximum current device will not trip in 25°C still air. I trip = Trip Current. Minimum current at which the device will always trip in 25°C still air. Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. Ri min/max = Minimum/Maximum device resistance prior to tripping at 25°C. R1max = Maximum device resistance is measured one hour post reflow. Thermal Derating Chart-Ih(A) Part Number Ambient Operation Temperature -40 ºC -20 ºC 0 ºC 25 ºC 40 ºC 50 ºC 60 ºC 70 ºC 85 ºC SMD1206P005TF 0.074 0.066 0.058 0.05 0.0425 0.0375 0.035 0.03 0.0275 SMD1206P010TF 0.148 0.132 0.116 0.10 0.085 0.075 0.07 0.06 0.055 SMD1206P012TF 0.18 0.16 0.14 0.12 0.10 0.09 0.08 0.07 0.07 SMD1206P012TF/48 0.18 0.16 0.14 0.12 0.10 0.09 0.08 0.07 0.07 SMD1206P016TF 0.24 0.21 0.18 0.16 0.14 0.13 0.12 0.11 0.10 SMD1206P016TF/24 0.24 0.21 0.18 0.16 0.14 0.13 0.12 0.11 0.10 SMD1206P016TF/33 0.24 0.21 0.18 0.16 0.14 0.13 0.12 0.11 0.10 SMD1206P020TF 0.30 0.26 0.23 0.20 0.17 0.15 0.14 0.12 0.11 SMD1206P020TF/30 0.30 0.26 0.23 0.20 0.17 0.15 0.14 0.12 0.11 SMD1206P025TF 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 SMD1206P025TF/24 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 SMD1206P025TF/30 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 SMD1206P035TF 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SMD1206P035TF/16 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SMD1206P035TF/30 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SMD1206P050TF 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/13.2 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/16 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/24 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/30 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Page 3 Positive Thermal Coefficient (PTC) Part Number SMD1206 Series Ambient Operation Temperature -40 ºC -20 ºC 0 ºC 25 ºC 40 ºC 50 ºC 60 ºC 70 ºC 85 ºC SMD1206P075TF 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P075TF/13.2 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P075TF/16 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P075TF/24 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P075TF/30 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P100TF 1.45 1.31 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SMD1206P100TF/16 1.45 1.31 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SMD1206P100TF/24 1.45 1.31 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SMD1206P110TF 1.60 1.45 1.30 1.10 0.95 0.80 0.72 0.66 0.55 SMD1206P110TF/16 1.60 1.45 1.30 1.10 0.95 0.80 0.72 0.66 0.55 SMD1206P110TF/24 1.60 1.45 1.30 1.10 0.95 0.80 0.72 0.66 0.55 SMD1206P150TF 2.18 1.94 1.72 1.50 1.28 1.17 1.06 0.96 0.77 SMD1206P150TF/13.2 2.18 1.94 1.72 1.50 1.28 1.17 1.06 0.96 0.77 SMD1206P150TF/16 2.18 1.94 1.72 1.50 1.28 1.17 1.06 0.96 0.77 SMD1206P200TF 2.88 2.63 2.34 2.00 1.74 1.58 1.42 1.17 0.93 SMD1206P200TF/12 2.88 2.63 2.34 2.00 1.74 1.58 1.42 1.17 0.93 SMD1206P200TF/16 2.88 2.63 2.34 2.00 1.74 1.58 1.42 1.17 0.93 SMD1206P250TF 3.30 3.10 2.82 2.50 2.16 1.98 1.83 1.54 1.33 SMD1206P250TF/12 3.30 3.10 2.82 2.50 2.16 1.98 1.83 1.54 1.33 SMD1206P260TF 3.43 3.22 2.93 2.60 2.23 2.03 1.87 1.57 1.35 SMD1206P300TF 4.05 3.66 3.36 3.00 2.50 2.28 2.00 1.62 1.35 SMD1206P350TF 4.65 4.23 3.92 3.50 2.92 2.68 2.35 1.91 1.42 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Page 4 Positive Thermal Coefficient (PTC) Thermal Derating Curve Average Time-Current Curve Derating Curves for SMD1206 Series Average Time Current Curves 100 160 140 Time In Seconds Percentage of Derated Current SMD1206 Series 120 100 80 60 40 0.05A 0.10A 0.12A 0.16A 0.20A 0.25A 0.35A 0.50A 0.75A 1.00A 1.10A 1.50A 2.00A 2.50A 2.60A 3.00A 3.50A 10 1 0.1 20 0 -40 -20 0 20 40 60 0.01 80 0.1 1 Current in Amperes Temperature (°C) 120 10 Soldering Parameters Reflow Condition TP Critical Zone TL to TP Ramp-up TL Pre Heat Temperature TS(max) Ramp-down TS(min) Preheat 25 Time to peak temperature (t 25℃ to peak) Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 -Temperature Min (Ts(min)) 150°C -Temperature Max (Ts(max)) 200°C - Time (min to max) (ts) 60 -180 Seconds Average ramp up rate ( Liquids Temp TL) to peak 3°C/second max TS(max) to TL - Ramp-up Rate 3°C/second max Reflo w Time Pb - Free assembly - Temperature (TL) (Liquids) 217°C - Time (min to max) (ts) 60 -150 Seconds Peak Temperature (TP) 260 +0/-5°C Time within 5°C of actual peak Temperature (tp) 20 - 40 Seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max Do not exceed 260°C Page 5 Positive Thermal Coefficient (PTC) SMD1206 Series Recommended Pad Layout (mm.) Lead style code Dimensions Package Dimensions (mm) Type Number A B Package Dimensions (in) C D A B C D min max min max min max min min max min max min max min SMD1206P005TF 3 3.6 1.5 1.9 0.6 1.2 0.15 0.118 0.142 0.059 0.075 0.024 0.047 0.004 SMD1206P010TF 3 3.6 1.5 1.9 0.6 1.2 0.15 0.118 0.142 0.059 0.075 0.024 0.047 0.004 SMD1206P012TF 3 3.6 1.5 1.9 0.6 1.2 0.15 0.118 0.142 0.059 0.075 0.024 0.047 0.004 SMD1206P012TF/48 3 3.6 1.5 1.9 0.6 1.2 0.15 0.118 0.142 0.059 0.075 0.024 0.047 0.004 SMD1206P016TF 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P016TF/24 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P016TF/33 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P020TF 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P020TF/30 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P025TF 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P025TF/24 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P025TF/30 3 3.6 1.5 1.9 0.4 1.0 0.15 0.118 0.142 0.059 0.075 0.016 0.039 0.004 SMD1206P035TF 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P035TF/16 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P035TF/30 3 3.6 1.5 1.9 0.40 0.9 0.15 0.118 0.142 0.059 0.075 0.016 0.035 0.004 SMD1206P050TF 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P050TF/13.2 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P050TF/16 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P050TF/24 3 3.6 1.5 1.9 0.50 1.0 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P050TF/30 3 3.6 1.5 1.9 0.50 1.0 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P075TF 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P075TF/13.2 3 3.6 1.5 1.9 0.50 1.0 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P075TF/16 3 3.6 1.5 1.9 0.50 1.0 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P075TF/24 3 3.6 1.5 1.9 0.6 1.2 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P075TF/30 3 3.6 1.5 1.9 0.7 1.3 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P100TF 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P100TF/16 3 3.6 1.5 1.9 0.5 1.0 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P100TF/24 3 3.6 1.5 1.9 0.7 1.3 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Page 6 Positive Thermal Coefficient (PTC) Package Dimensions (mm) Type Number A B SMD1206 Series Package Dimensions (in) C D A B C D min max min max min max min min max min max min max min SMD1206P110TF 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P110TF/16 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P110TF/24 3 3.6 1.5 1.9 0.35 0.8 0.15 0.118 0.142 0.059 0.075 0.014 0.031 0.004 SMD1206P150TF 3 3.6 1.5 1.9 0.5 1.0 0.15 0.118 0.142 0.059 0.075 0.020 0.039 0.004 SMD1206P150TF/13.2 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P150TF/16 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P200TF 3 3.6 1.5 1.9 0.7 1.3 0.15 0.118 0.142 0.059 0.075 0.028 0.051 0.004 SMD1206P200TF/12 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P200TF/16 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P250TF 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P250TF/12 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P260TF 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P300TF 3 3.6 1.5 1.9 1.0 1.6 0.15 0.118 0.142 0.059 0.075 0.039 0.063 0.004 SMD1206P350TF 3 3.5 1.5 1.8 1.0 1.6 0.15 0.118 0.138 0.059 0.071 0.039 0.063 0.004 SMD1206P450TF 3 3.5 1.5 1.8 0.5 1.4 0.15 0.118 0.138 0.059 0.071 0.02 0.055 0.004 Taping and Reel Specifications Symbol Millimeters Inches W 8.15±0.3 0.321±0.012 P 4.0±0.1 0.157±0.004 F 3.5±0.05 0.138±0.002 E 1.75±0.1 0.069±0.004 D 1.55±0.05 0.061±0.002 P0 4.0±0.1 0.157±0.004 P2 2.0±0.05 0.079±0.002 D1(max.) 178 7.007 D2(min.) 60 2.362 W1 9±0.5 0.354±0.02 Part Number Halogen Free Packaging Option Quantity Quantity & Packaging Codes SMD1206P016 ,020,020TF/30, 025,035,035TF/16, 050,075,100,110TF Yes Tape and Reel 4500 YR Other Yes Tape and Reel 3500 YR Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Page 7 Positive Thermal Coefficient (PTC) SMD1206 Series SMD PTC 使用注意事项 Cautions for SMD PTC Use 1. 请在规格书规定的最大电压和最大电流下使用，超出 PTC 最大电压或最大电流规格值的操作，可能会导致 PTC 出现电弧，阻 值升高，甚至烧片。 Operation beyond the maximum voltage or current may result in device damage and possible electrical arcing or flame. 2. 规格书所规定的各温度下的 Hold current 均是 PTC 经过一次回流焊接得出的常规性能，PTC 能够在不同温度对应的 电流条件下保持 1 小时。该电流并不是该型号 PTC 能够适用的长期充电或放电电流的条件。 Hold current at all temperatures specified in the SPEC is the conventional performance of PTC obtained by one time reflow welding. PTC can hold 1 hour under current conditions at a given temperature. This current is not the conditionof long-term charging or discharging current for this type of PTC. 3. 规格书所规定的电阻以及电气特性，均是基于在瑞隆源指定测试板经过一次回流焊之后的测试。如果客户有二次回流焊 或者注塑点胶等其他热工序，会对上述参数有一定程度的衰减。所以需要验证其适用性。 The above parameters are concluded from one time of reflow soldering processing the PTC appointed by Ruilongyuan. If there is any further heatgenerated process like injection or dispensing at the customer's premise, the aforementioned parameters will decreaseat certain degree. Therefore the verification test to be conducted is necessary . 4. PTC 为热敏元件，对环境温度比较敏感，建议在 PTC 周围不要设计热源元件，尽量减少外部热源的影响。 The PTC is thermal sensitive device. It is recommended not to design any heat source devices around it to reduce the outside heat source impact. 5. PTC 贴片产品是为 SMT 工艺设计的封装形式，焊接工艺为回流焊。焊接工艺可参考瑞隆源推荐的回流焊曲线。如果回 流焊温度超过推荐的值，PTC 将有可能受到损伤。禁止使用手工焊接 PTC，禁止对线路板其他元件或端子返工时使用热 风枪。 SMD PTC is designed for SMT processing which applies reflow soldering. Please refer to the Ruilongyuan recommended curve for reference. If the reflow soldering temperature exceeds the recommended value, the PTC might be damaged. Hand welding PTC is prohibited. Heat gun is not allowed to use during the circuit board components or terminals rework . 6. PTC 贴装或应用过程中,所使用到的各类注塑料、单组份、双组份固化胶粘剂、硅胶，需要对注塑料胶料等材料牌号 以及应用参数（如温度、时间等）进行验证，以确保产品及工艺的匹配性，确认不会影响 PTC 性能之后方可使用。 When mounting or using PTC, all injection molding materials, curing adhesives, UV glue , silica gel and cleaning agents or solvents must be tested in terms of application parameters e.g. temperature, time, and etc to ensure the consistency between the product and the processing before use. 7. PTC 贴装或使用过程中，不建议使用洗板水或其他清洗剂进行清洗。如必须使用，需要验证各类清洗剂、洗板水以及溶 剂的适用性，确认不会影响 PTC 性能之后方可使用。已知对 PTC 有影响的化学药品包括但不仅限于醚类、苯类、酮类 以及脂类等较强溶解性、破坏性的有机化合物。清洗后将产品放置于敞开的环境中至少 24 小时，将残留的溶剂进行充分的挥 发。 When mounting or using PTC, it is not recommended to use circuit board washer water or other cleaning agent. If cleaning is required, it is necessary to verify the applicability of various cleaning agents, washboard water and solvents,and confirm that they will not affect the PTC performance . The known chemicals that impacts PTC include but not limited to ethers, benzene homolog, ketones, lipids and derivates that is of strong solubleness and ruinous. Please place the product in open environment for at least 24 hours to volatilize solvents residuals. 8. 装配过程中，避免用暴力砸、挤、压、拉、扭、刺等方式作用 PTC 本体，以免引起 PTC 性能衰减。 Please do not smash, clamp, pull, dent or twist by tool during assembling process otherwise it might be a cause of the Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Page 8 Positive Thermal Coefficient (PTC) SMD1206 Series performance degradation. 9. 在产品应用中，PTC 焊接至保护板后，如需注塑或打胶，须在尽量短的时间内完成，如贴装与注塑打胶时间间隔超过 1个月，则需密闭保存，可避免 PTC 长时间暴露于空气环境中。 When PTC is welded to the PCM in product application, if injection or gluing is needed, it should be completed in as short a time as possible. If the time slot between mounting and injection or gluing surpasses 1 month,, please keep inairtight environment to avoid long air exposure. 10. PTC 为自恢复保护元件，但并不能当做开关使用，重复多次的保护会降低 PTC 的维持电流。 PTC is resettable protection device which shall not be taken for use as switch. Multiple times tripping shall lower thePTC hold current. 11. PTC 在充电线端应用中，建议使用 PP 类材料做内膜，禁止使用 TPE 类与 PVC 类等材料做内膜。 In charging terminal application, PP type material is recommended to use as inner membrane and TPE and PVC type material is inhibited. 12. PTC 在加工过程中，如有烙铁焊接工艺，建议焊接位置距离 PTC 1.5mm 以上，焊接工具温度低于 350℃，焊接铁头 与焊点的接触时间不超过 3 秒。 In the process of PTC processing, if there is soldering iron welding process, it is suggested that the welding position should be more than 1.5mm away from PTC, the welding tool temperature should be lower than 350℃, and the contact time between soldering iron and solder joint should not exceed 3sec. Specifications are subject to change without notice. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2023-2-1 Version: A2 Page 9
