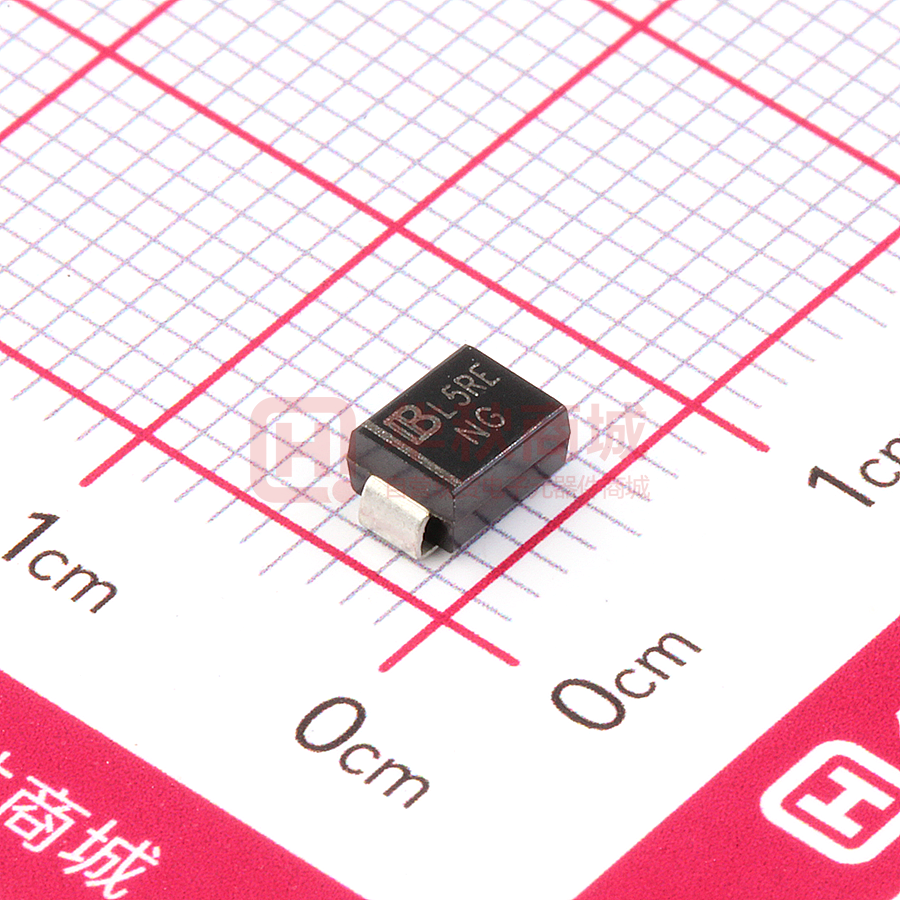

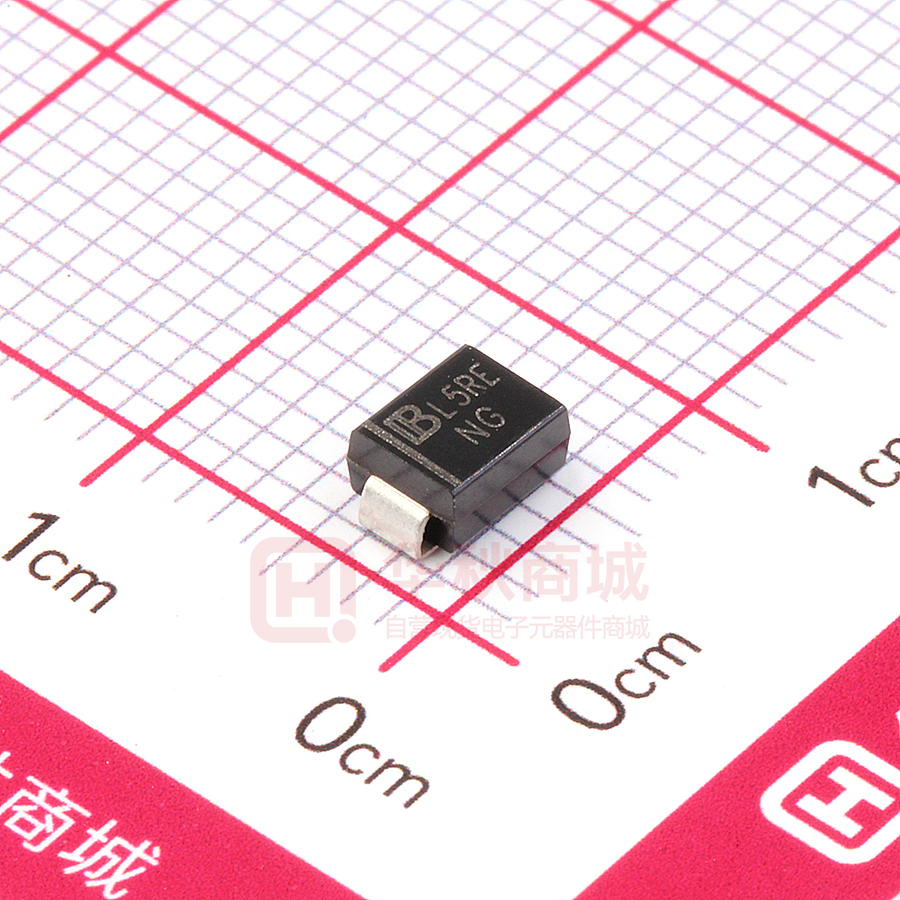

SMBJ58A-AT/TR13

SMBJ-AT SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ For surface mounted applications in order to optimize board space Low profile package Built-in strain relief Glass passivated junction Low inductance Excellent clamping capability 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Fast response time Typical IR less than 1μA above 12V High Temperature soldering: 260℃/10 seconds at terminals Plastic package has underwriters laboratory flammability 94V-0 Meets MSL level 1, per J-STD-020 Safety certification: UL: E244458 AEC-Q101 qualified IEC61000-4-2 ESD 30KV Air, 30KV contact compliance Mechanical Data ■ ■ ■ ■ ■ Case: JEDEC DO-214AA. Molded plastic over glass passivated junction Terminal: Tin plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Standard Packaging: 12mm tape (EIA STD RS-481) Weight: 0.10g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Note2, Fig.1) PPPM Minimum 600 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 5.0 Watts IFSM 100 Amps TJ,TSTG -55 to +150 ℃ RθJL 20 ℃/W Steady state power dissipation at TA=50℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note3, Fig.6) Operating junction and Storage Temperature Range. Typical thermal resistance junction to lead Typical thermal resistance junction to ambient RθJA 100 ℃/W Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. Mounted on 5.0mm×5.0mm (0.03mm thick) copper pads to each terminal. 3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision:TVS-SMBJ-AT SERIES-001(A2) 1/7 http://brightking.yageo.com SMBJ-AT SERIES Dimensions (SMB/DO-214AA) Millimeters Cathode Band Inches Symbol D1 D Min. Max. Min. Max. L 4.06 4.57 0.160 0.180 D 3.30 3.94 0.130 0.155 D1 1.95 2.20 0.077 0.086 T 5.21 5.59 0.205 0.220 T1 0.76 1.52 0.030 0.060 d - 0.203 - 0.008 H 2.15 2.65 0.085 0.104 H1 2.13 2.47 0.084 0.097 L H1 H d T1 T Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) SMBJ5.0A-AT SMBJ5.0CA-AT KE AE 5.0 6.40~7.00 10 9.2 65.3 800 SMBJ6.0A-AT SMBJ6.0CA-AT KG AG 6.0 6.67~7.37 10 10.3 58.3 800 SMBJ6.5A-AT SMBJ6.5CA-AT KK AK 6.5 7.22~7.98 10 11.2 53.6 500 SMBJ7.0A-AT SMBJ7.0CA-AT KM AM 7.0 7.78~8.60 10 12.0 50.0 200 SMBJ7.5A-AT SMBJ7.5CA-AT KP AP 7.5 8.33~9.21 1 12.9 46.6 100 SMBJ8.0A-AT SMBJ8.0CA-AT KR AR 8.0 8.89~9.83 1 13.6 44.2 50 SMBJ8.5A-AT SMBJ8.5CA-AT KT AT 8.5 9.44~10.40 1 14.4 41.7 20 SMBJ9.0A-AT SMBJ9.0CA-AT KV AV 9.0 10.00~11.10 1 15.4 39.0 10 SMBJ10A-AT SMBJ10CA-AT KX AX 10.0 11.10~12.30 1 17.0 35.3 5 SMBJ11A-AT SMBJ11CA-AT KZ AZ 11.0 12.20~13.50 1 18.2 33.0 1 SMBJ12A-AT SMBJ12CA-AT LE BE 12.0 13.30~14.70 1 19.9 30.2 1 SMBJ13A-AT SMBJ13CA-AT LG BG 13.0 14.40~15.90 1 21.5 28.0 1 SMBJ14A-AT SMBJ14CA-AT LK BK 14.0 15.60~17.20 1 23.2 25.9 1 SMBJ15A-AT SMBJ15CA-AT LM BM 15.0 16.70~18.50 1 24.4 24.6 1 SMBJ16A-AT SMBJ16CA-AT LP BP 16.0 17.80~19.70 1 26.0 23.1 1 SMBJ17A-AT SMBJ17CA-AT LR BR 17.0 18.90~20.90 1 27.6 21.8 1 SMBJ18A-AT SMBJ18CA-AT LT BT 18.0 20.00~22.10 1 29.2 20.6 1 SMBJ20A-AT SMBJ20CA-AT LV BV 20.0 22.20~24.50 1 32.4 18.6 1 SMBJ22A-AT SMBJ22CA-AT LX BX 22.0 24.40~26.90 1 35.5 16.9 1 SMBJ24A-AT SMBJ24CA-AT LZ BZ 24.0 26.70~29.50 1 38.9 15.5 1 SMBJ26A-AT SMBJ26CA-AT ME CE 26.0 28.90~31.90 1 42.1 14.3 1 SMBJ28A-AT SMBJ28CA-AT MG CG 28.0 31.10~34.40 1 45.4 13.3 1 SMBJ30A-AT SMBJ30CA-AT MK CK 30.0 33.30~36.80 1 48.4 12.4 1 Revision:TVS-SMBJ-AT SERIES-001(A2) 2/7 http://brightking.yageo.com SMBJ-AT SERIES Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) SMBJ33A-AT SMBJ33CA-AT MM CM 33.0 36.70~40.60 1 53.3 11.3 1 SMBJ36A-AT SMBJ36CA-AT MP CP 36.0 40.00~44.20 1 58.1 10.4 1 SMBJ40A-AT SMBJ40CA-AT MR CR 40.0 44.40~49.10 1 64.5 9.3 1 SMBJ43A-AT SMBJ43CA-AT MT CT 43.0 47.80~52.80 1 69.4 8.7 1 SMBJ45A-AT SMBJ45CA-AT MV CV 45.0 50.00~55.30 1 72.7 8.3 1 SMBJ48A-AT SMBJ48CA-AT MX CX 48.0 53.30~58.90 1 77.4 7.8 1 SMBJ51A-AT SMBJ51CA-AT MZ CZ 51.0 56.70~62.70 1 82.4 7.3 1 SMBJ54A-AT SMBJ54CA-AT NE DE 54.0 60.00~66.30 1 87.1 6.9 1 SMBJ58A-AT SMBJ58CA-AT NG DG 58.0 64.40~71.20 1 93.6 6.5 1 SMBJ60A-AT SMBJ60CA-AT NK DK 60.0 66.70~73.70 1 96.8 6.2 1 SMBJ64A-AT SMBJ64CA-AT NM DM 64.0 71.10~78.60 1 103.0 5.9 1 SMBJ70A-AT SMBJ70CA-AT NP DP 70.0 77.80~86.00 1 113.0 5.3 1 SMBJ75A-AT SMBJ75CA-AT NR DR 75.0 83.30~92.10 1 121.0 5.0 1 SMBJ78A-AT SMBJ78CA-AT NT DT 78.0 86.70~95.80 1 126.0 4.8 1 SMBJ85A-AT SMBJ85CA-AT NV DV 85.0 94.40~104.00 1 137.0 4.4 1 SMBJ90A-AT SMBJ90CA-AT NX DX 90.0 100.00~111.00 1 146.0 4.1 1 SMBJ100A-AT SMBJ100CA-AT NZ DZ 100.0 111.00~123.00 1 162.0 3.7 1 SMBJ110A-AT SMBJ110CA-AT PE EE 110.0 122.00~135.00 1 177.0 3.4 1 SMBJ120A-AT SMBJ120CA-AT PG EG 120.0 133.00~147.00 1 193.0 3.1 1 SMBJ130A-AT SMBJ130CA-AT PK EK 130.0 144.00~159.00 1 209.0 2.9 1 SMBJ150A-AT SMBJ150CA-AT PM EM 150.0 167.00~185.00 1 243.0 2.5 1 SMBJ160A-AT SMBJ160CA-AT PP EP 160.0 178.00~197.00 1 259.0 2.3 1 SMBJ170A-AT SMBJ170CA-AT PR ER 170.0 189.00~209.00 1 275.0 2.2 1 SMBJ180A-AT SMBJ180CA-AT PT ET 180.0 201.00~222.00 1 292.0 2.1 1 SMBJ190A-AT SMBJ190CA-AT PA EC 190.0 211.00~233.00 1 308.0 2.0 1 SMBJ200A-AT SMBJ200CA-AT PV EV 200.0 224.00~247.00 1 324.0 1.9 1 SMBJ210A-AT SMBJ210CA-AT PB ED 210.0 237.00~263.00 1 340.0 1.8 1 SMBJ220A-AT SMBJ220CA-AT PX EX 220.0 246.00~272.00 1 356.0 1.7 1 SMBJ250A-AT SMBJ250CA-AT PZ EZ 250.0 279.00~309.00 1 405.0 1.5 1 SMBJ300A-AT SMBJ300CA-AT QE FE 300.0 335.00~371.00 1 486.0 1.3 1 SMBJ350A-AT SMBJ350CA-AT QG FG 350.0 391.00~432.00 1 567.0 1.1 1 SMBJ400A-AT SMBJ400CA-AT QK FK 400.0 447.00~494.00 1 648.0 0.9 1 SMBJ440A-AT SMBJ440CA-AT QM FM 440.0 492.00~543.00 1 713.0 0.9 1 Revision:TVS-SMBJ-AT SERIES-001(A2) 3/7 http://brightking.yageo.com SMBJ-AT SERIES Ratings and Characteristic Curves (T A=25℃ unless otherwise noted) Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % PPPM - Peak Pulse Power (kW) 100 10 1 0.2×0.2″(5.0×5.0mm) Copper Pad Area 0.1 1 100 10 100 80 60 40 20 0 1000 0 td-Pulse Width (µs) td 100 1 2.0 3.0 Bi-directional @VR 4.0 TJ=25℃ f=1.0MHz Vsig=50mVp-p 1 6 5 4 3 2 1 0 50 75 100 125 150 175 1000 120 100 80 60 40 20 0 1 10 100 Number of Cycles at 60Hz TA-Ambient Temperature (℃) Revision:TVS-SMBJ-AT SERIES-001(A2) 100 Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only IFSM - Peak Forward Surve Current (A) PM(AV), Steady State Power Dissipation (W) Figure 5. Steady State Power Dissipation Derating Curve 25 10 VBR-Reverse Breakdown Voltage (V) t-Time (ms) 0 175 Uni-directional V=0V 10 10/1000µs Waveform as defined by R.E.A 1.0 150 Uni-directional @VR Cj (pF) IPPM - Peak Pulse Current, %IRSM 1000 50 0 125 Bi-directional V=0V Half Value IPPM (IPPM/2) 0 100 10000 Peak Value IPPM 100 75 Figure 4. Typical Junction Capacitance TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM tr=10µs 50 TA-Ambient Temperature (℃) Figure 3. Pulse Waveform 150 25 4/7 http://brightking.yageo.com SMBJ-AT SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) 20-40 seconds Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:TVS-SMBJ-AT SERIES-001(A2) 8 minutes max. 5/7 http://brightking.yageo.com SMBJ-AT SERIES Marking Code Cathode Band YXXX YXXX KE AE Logo Intermal Control Code Logo Marking Code Intermal Control Code Marking Code Part Number Code SMBJ XXX C A AT / XXXX Package code TR7: 7 inch reel package TR13: 13 inch reel package Internal Control Code 5% VBR Voltage Tolerance Bidirectional VRWM Voltage Series Code Ordering Code for Different Package 7 inch reel package: Add suffix “ /TR7” at the end of the part number, such as SMBJXXXCA-AT/TR7 13 inch reel package: Add suffix “ /TR13” at the end of the part number, such as SMBJXXXCA-AT/TR13 Revision:TVS-SMBJ-AT SERIES-001(A2) 6/7 http://brightking.yageo.com SMBJ-AT SERIES Packaging Tape P0 P1 P2 D0 B T E F W B0 D1 A A K0 B SECTION B-B Symbol Dimension (mm) W 12.00±0.20 P0 4.00±0.10 P1 8.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.5±0.10 E 1.75±0.10 F 5.50±0.10 A0 3.86±0.15 B0 5.65±0.10 K0 2.75±0.15 T 0.25±0.05 D2 Φ178.0±2.0 D3 Φ50.0Min. D4 Φ13.0±0.5 W1 16.0±2.0 A0 SECTION A-A 7” Reel D4 D3 D2 W1 Quantity: 500PCS 13” Reel D5 Φ330.0±2.0 D6 Φ13.5±0.5 H 2.5±1.0 W2 16.0±2.0 Quantity: 3000PCS Revision:TVS-SMBJ-AT SERIES-001(A2) 7/7 http://brightking.yageo.com
