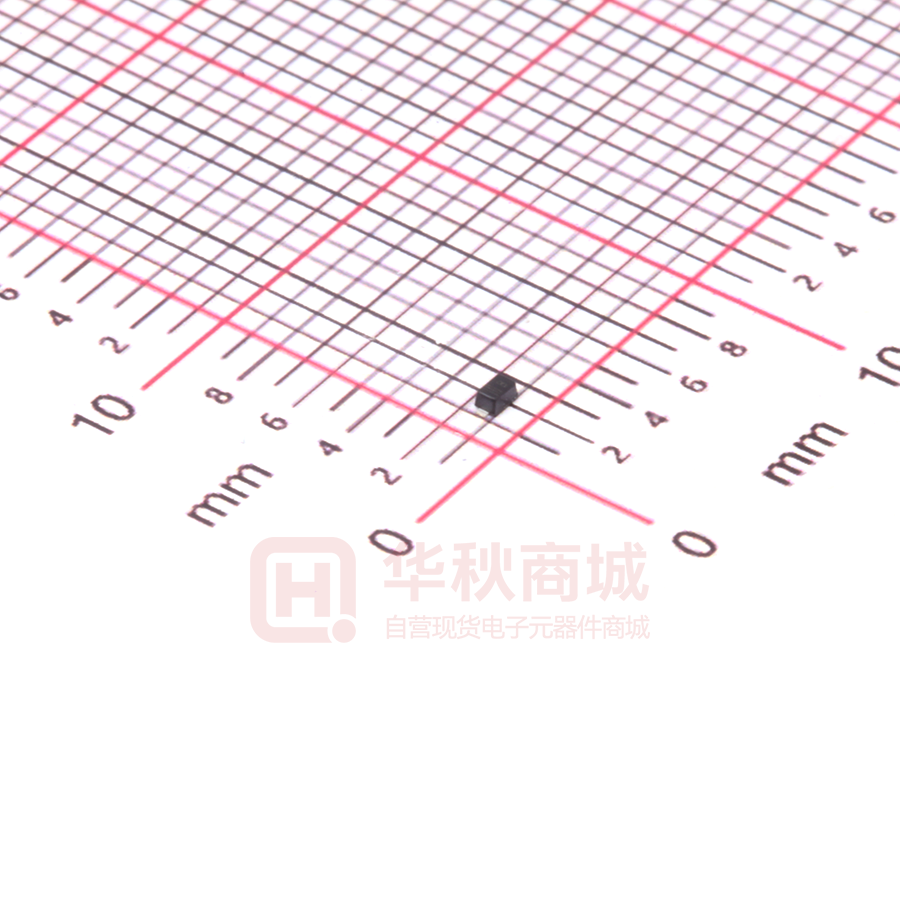

RB520S-30

    RB520S-30 PINNING Silicon Epitaxial Planar Schottky Barrier Diode DESCRIPTION PIN for low current rectification and high speed switching applications 1 Cathode 2 Anode   1   Features • Extremely small surface mounting type • High reliability Absolute Maximum Ratings (Ta = 25 OC) Parameter     2     B   Top View Marking Code: "B" Simplified outline SOD-523 and symbol Symbol Value Unit VR 30 V Mean Rectifying Current IF(AV) 200 mA Peak Forward Surge Current (60 Hz for 1 Cyc.) IFSM 1 A Tj 125 O Tstg - 40 to + 125 O Symbol Max. Reverse Voltage Junction Temperature Storage Temperature Range C C Characteristics at Ta = 25 OC Parameter Unit   Forward Voltage at IF = 200 mA VF 0.6 Reverse Current at VR = 10 V IR 1 V   µA Note: ESD sensitive product handling required. Page 1 of 3 3/29/2012     RB520S-30   Page 2 of 3 3/29/2012     RB520S-30 PACKAGE OUTLINE SOD-523 Plastic surface mounted package; 2 leads           ∠                     ALL ROUND         A       C                 HE   D Page 3 of 3                           UNIT mm     bp   E                             A       A 0.70 0.60 bp 0.4 0.3 C 0.135 0.100 D 1.25 1.15 E 0.85 0.75 HE 1.7 1.5 ∠ V   0.1 5 O 3/29/2012
