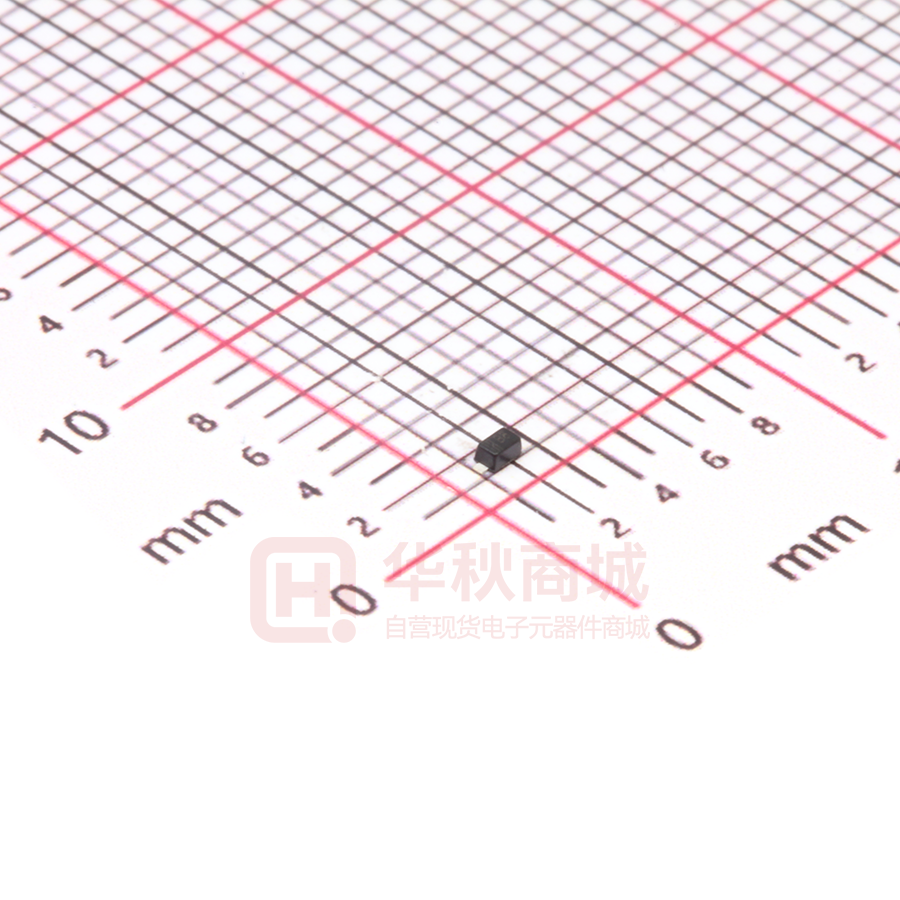

MM5Z3V0

    SILICON PLANAR ZENER DIODES PINNING Features PIN • Standard Zener Breakdown Voltage Range 2.0 V to 75 V DESCRIPTION 1 Cathode 2 Anode • Steady State Power Rating of 200 mW 1       2 Top View Simplified outline SOD-523 and symbol Absolute Maximum Ratings (Ta = 25 OC) Parameter Total Device Dissipaton Junction and Storage Temperature Range Symbol Value Unit Ptot 200 mW Tj , Tstg - 65 to + 150 Symbol Max. VF 0.9 C O Characteristics at Ta = 25 OC Parameter Forward Voltage at IF = 10 mA   1 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. Unit     V     MM5Z2V0~MM5Z75       Type   Zener Voltage Marking Code   1) VZT (V) Zener Impedance at lZT ZZT ZZK Leakage Current at IZK IR at VR Min. Nom. Max. mA Ω Ω mA µA V MM5Z2V0 RD 1.8 2.0 2.15 5 100 - - 120 0.5 MM5Z2V2 RE 2.08 2.2 2.33 5 100 - - 120 0.7 MM5Z2V4 Z7 2.2 2.4 2.6 5 100 1000 1 120 1 MM5Z2V7 A8 2.5 2.7 2.9 5 100 1000 1 120 1 MM5Z3V0 B8 2.8 3.0 3.2 5 100 1000 1 50 1 MM5Z3V3 C8 3.1 3.3 3.5 5 95 1000 1 20 1 MM5Z3V6 D8 3.4 3.6 3.8 5 90 1000 1 10 1 MM5Z3V9 E8 3.7 3.9 4.1 5 90 1000 1 5 1 MM5Z4V3 F8 4 4.3 4.6 5 90 1000 1 5 1 MM5Z4V7 G8 4.4 4.7 5 5 80 800 1 2 1 MM5Z5V1 H8 4.8 5.1 5.4 5 60 500 1 2 1.5 MM5Z5V6 I8 5.2 5.6 6 5 40 200 1 1 2.5 MM5Z6V2 J8 5.8 6.2 6.6 5 10 100 1 1 3 MM5Z6V8 K8 6.4 6.8 7.2 5 15 160 1 0.5 3.5 MM5Z7V5 L8 7 7.5 7.9 5 15 160 1 0.5 4 MM5Z8V2 M8 7.7 8.2 8.7 5 15 160 1 0.5 5 MM5Z9V1 N8 8.5 9.1 9.6 5 15 160 1 0.5 6 MM5Z10 O8 9.4 10 10.6 5 20 160 1 0.1 7 MM5Z11 P8 10.4 11 11.6 5 20 160 1 0.1 8 MM5Z12 Q8 11.4 12 12.7 5 25 80 1 0.1 9 MM5Z13 R8 12.4 13 14.1 5 30 80 1 0.1 10 MM5Z15 S8 14.3 15 15.8 5 30 80 1 0.1 11 MM5Z16 T8 15.3 16 17.1 2 40 80 1 0.1 12 MM5Z18 U8 16.8 18 19.1 2 45 80 1 0.1 13 MM5Z20 V8 18.8 20 21.2 2 55 100 1 0.1 15 MM5Z22 W8 20.8 22 23.3 2 55 100 1 0.1 17 MM5Z24 X8 22.8 24 25.6 2 70 120 1 0.1 19 MM5Z27 Y8 25.1 27 28.9 2 80 300 1 0.1 21 MM5Z30 Z8 28 30 32 2 80 300 1 0.1 23 MM5Z33 A9 31 33 35 2 80 300 1 0.1 25 MM5Z36 B9 34 36 38 2 90 500 1 0.1 27 MM5Z39 C9 37 39 41 2 130 500 1 2 30 MM5Z43 D9 40 43 46 1 150 500 1 2 33 MM5Z47 E9 44 47 50 1 170 500 1 2 36 MM5Z51 F9 48 51 54 1 180 500 1 1 39 MM5Z56 G9 52 56 60 1 200 500 1 1 43 MM5Z62 H9 58 62 66 1 215 500 1 0.2 47 MM5Z68 I9 64 68 72 1 240 500 1 0.2 52 MM5Z75 J9 70 75 79 1 255 500 1 0.2 57 1) Tested with pulses tp = 20 ms. 2 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.     MM5Z2V0~MM5Z75 Power Dissipation: Ptot (mW) 300 200 100                                   0 25 0 150 100 Ambient Temperature: Ta ( C) O Derating Curve 3 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.     PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-523 4 of 4 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.
