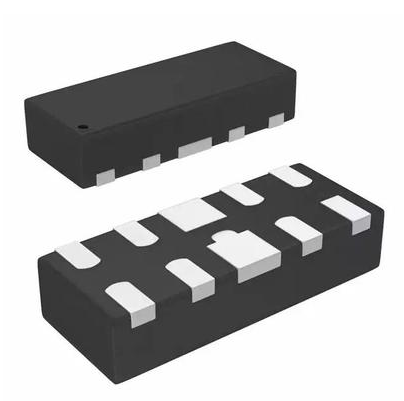

PTUC0524PA – ESD Protection Diode
Feature
30 Watts peak pulse power (8/20s)
Unidirectional configurations
Solid state silicon-avalanche technology
Low clamping voltage
Low leakage current
Low capacitance (CJ = 0.2pF typ. I/O to I/O)
IEC61000-4-2 (ESD) ±15kV (Air), ±12kV (Contact)
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning): 3A (8/20s)
Applications
Mechanical Data
USB3.0, USB2.0, Ethernet
Tiny DFN10L(2.5mmx1.0mm) package
HDMI 2.0, Displayport 1.3, eSATA
Molding compound flammability rating: UL94V-0
Unified Display Interface
Tape and Reel Packaging
Digital Video Interface
RoHS/WEEE Compliant
High Speed Serial Interface
Schematic and PIN Configuration
Maximum Rating
Parameter
Symbol
IEC61000-4-2 ESD Voltage – Air Mode
VESD(1)
IEC61000-4-2 ESD Voltage – Contact Mode
Value
±15
±12
Unit
kV
Peak Pulse Power ( tp =8/20μs )
PPP
30
Peak Pulse Current ( tp =8/20μs ) (note1)
IPP
3
W
A
Lead Solder Temperature (10 seconds duration)
TL
260
°C
Junction Temperature
TJ
-55~125
°C
Storage Temperature Range
Tstg
-55~125
°C
Note:
1.
2.
3.
Device stressed with ten non-repetitive ESD pulses.
Non-repetitive current pulse 8/20s exponential decay waveform according to IEC61000-4-5.
All ratings are measured at environmental temperature of TA = 25°C unless otherwise noted.
新竹市科學工業園區工業東四路 24-1 號
No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 1 of 4
2018/06/28
Rev: C
PTUC0524PA – ESD Protection Diode
Electrical Characteristics
Parameter
Reverse Stand-off Voltage
Symbol
Test Conditions
IT = 1mA
Reverse Leakage Current
IR
VRWM = 5V
Peak Pulse Current
IPP
Clamping Voltage
Junction Capacitance
Typ
Max
5.0
V
6.0
7.2
9.5
V
0.02
0.50
A
V
VBR
Reverse Breakdown Voltage
Min
RWM(1)
VC(2)
VCL
CJ
IPP = 3.0A
IPP = 16A, tp=TLP
VR = 0V, f = 1MHz, I/O to I/O
VR = 0V, f = 1MHz, I/O to GND
10
Unit
3
A
11
15
V
V
pF
pF
0.20
0.36
Note:
1.
2.
3.
Other voltages available upon request.
Non-repetitive current pulse 8/20s exponential decay waveform according to IEC61000-4-5.
All ratings are measured at environmental temperature of TA = 25°C unless otherwise noted.
Electrical Parameters
Symbol
VC
Parameter
Clamping Voltage @ IPP
IPP
Peak Pulse Current
VBR
Breakdown Voltage @ IT
IT
Test Current
IR
Reverse Leakage Current @ VRWM
VRWM
VF
Reverse Stand-off Voltage
Forward Voltage @ IF
新竹市科學工業園區工業東四路 24-1 號
No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 2 of 4
2018/06/28
Rev: C
PTUC0524PA – ESD Protection Diode
Typical Characteristics
新竹市科學工業園區工業東四路 24-1 號
No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 3 of 4
2018/06/28
Rev: C
PTUC0524PA – ESD Protection Diode
DFN10L(2.5mmx1.0mm) Package Outline Dimensions
Dimensions (mm)
Symbol
Min
Nom
Max
A
0.45
0.50
0.55
A1
-
0.02
0.05
0.20
A3
0.10
0.15
D
2.45
2.50
2.55
E
0.95
1.00
1.05
D1
0.35
0.40
0.45
b
0.15
0.20
0.25
e
0.5BSC
L
0.35
0.40
0.45
Marking
Packaging Information
Order Code
Packaging
Reel Size
PCS/Reel
PTUC0524PA
DFN10L(2.5x1.0mm)
7 inch
3,000
新竹市科學工業園區工業東四路 24-1 號
No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 4 of 4
2018/06/28
Rev: C
