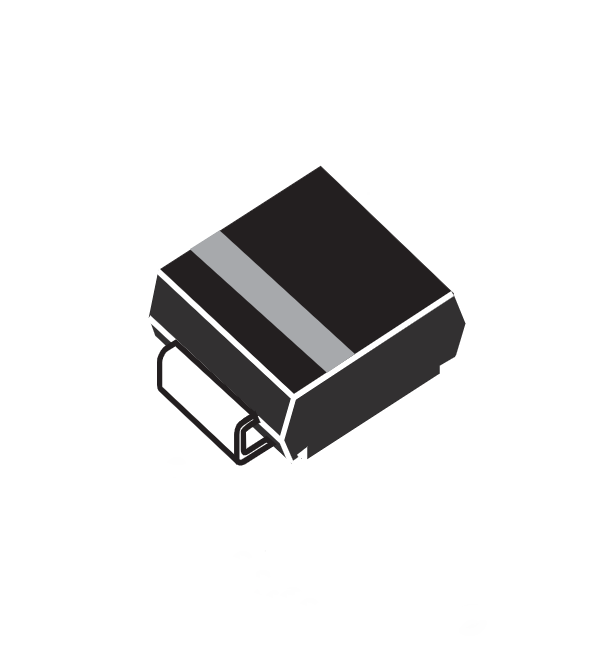

RS2G

山东晶导微电子股份有限公司 RS2A THRU RS2M Jingdao Microelectronics co.LTD Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V PINNING Forward Current - 2 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code： RS2A-RS2M MECHANICAL DATA • Case: SMA • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.055g / 0.002oz Simplified outline SMA and symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols RS2A RS2B RS2D RS2G RS2J RS2K RS2M Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at T c = 125 °C I F(AV) 2 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 50 A Maximum Forward Voltage at 2 A VF 1.3 V IR 5 100 μA Cj 22 pF Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range t rr 150 250 500 ns RθJA RθJC 65 20 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2016.11 SMA-F-RS2A~RS2M-2A1KV Page 1 of 3 山东晶导微电子股份有限公司 RS2A THRU RS2M Jingdao Microelectronics co.LTD Fig.2 Typical Reverse Characteristics 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Forward Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) T J =25°C 100 10 T J=25°C f = 1.0MHz V sig = 50mV p-p 1 0.5 1.0 1.5 2.0 2.5 Instaneous Forward Voltage (V) 0.1 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 60 50 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2016.11 www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 RS2A THRU RS2M Jingdao Microelectronics co.LTD PACKAGE OUTLINE Plastic surface mounted package; 2 leads A A SMA c a VM e A HE g e E A D E HE c e g max 2.2 4.5 2.7 5.2 0.31 1.6 1.5 min 1.9 4.0 2.3 4.7 0.15 1.3 0.9 max 87 181 106 205 12 63 59 min 75 157 91 185 6 51 35 UNIT mm mil The recommended mounting pad size 2.4 (94) mm Unit ： (mil) 2016.11 a 0.3 12 Marking Type number Marking code RS2A RS2A RS2B RS2B RS2D RS2D RS2G RS2G RS2J RS2J RS2K RS2K RS2M RS2M 1.8 (71) 1.8 (71) 1.8 (71) g e A D JD611296B0 Page 3 of 3
