ESD05D6BU
Ultra Low Capacitance ESD Protection Diode
DESCRIPTION
DFN0603 Plastic-Encapsulate ESD Protection Diodes
ESD05D6BU is a low-capacitance transient voltage Suppressor (TVS) desingned to provide
electrostatic events discharge (ESD) protection for high-speed data interfaces.With typical capacitance
of 0.25pF, ESD05D6BU is designed to protect parasitic-sensitive systems against over-voltage and
over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact
discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device
model (CDM) ESD and cable discharge event (CDE), etc.
ESD05D6BU uses ultra-small DFN0603 package. Each ESD05D6BU device can protect one highspeed data line. It offers system designers flexibility to protect single data line where space is a
premium concem.The combined features of low capacitance, ultra-small size and high ESD
robustness make ESD05D6BU ideal for high-speed data port and high-frequency line applications,
such as cellular phones and HD visual devices.
Features
Peak Power Dissipation :100 W (8/20μs)
IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ns)
Cable Discharge Event (CDE)
Package optimized for high-speed lines
Protects one data, control line
Working voltages : 5V
Low Capacitance: 0.25pF (Typical)
Low leakage current
Low clamping voltage
Applications
Serial ATA
Desktops, Servers and Notebooks
Cellular Phones
MDDI Ports
USB Data Line Protection
Display Ports
Digital Visual Interfaces (DVI)
Pin Configuration
Circuit Diagram
Mechanical Characteristics

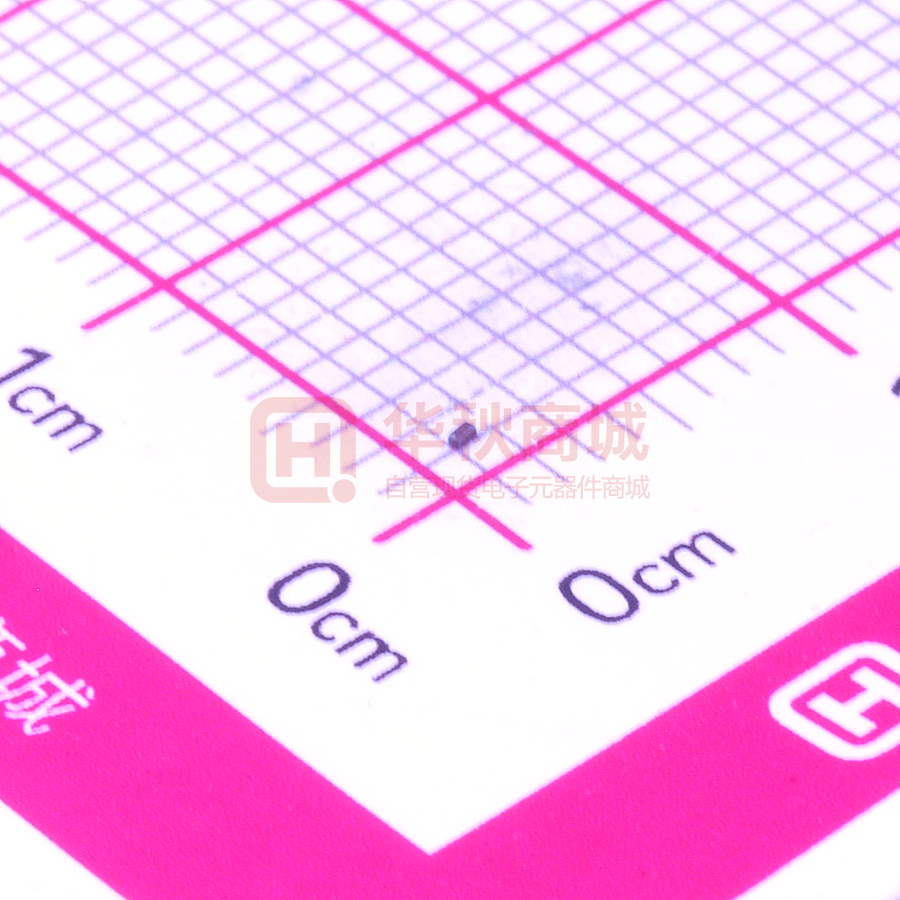

Package: DFN0603
Flammability Rating: UL 94V-0
High temperature soldering guaranted:
260℃/10s
Packaging: Tape and Reel
Marking: 5BU
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
ESD per IEC 61000−4−2 (Air)
ESD per IEC 61000−4−2 (Contact)
Symbol
VESD
Value
± 20
± 20
Unit
KV
Peak Pulse Power(8/20us )
PPP
100
W
Operating Temperature
TOPT
−55 to +125
°C
Storage Temperature
TSTG
−55 to +150
°C
Lead Solder Temperature – Maximum (10 Second
Duration)
The above data are for reference only.
TL
260(10 sec.)
°C
DN:T20402A0
http://www.microdiode.com
Rev:2020A0
Page :1
ESD05D6BU
Ultra Low Capacitance ESD Protection Diode
Electrical Characteristics (TA=25°C unless otherwise specified)
Symbol
bol
Param
Test Condition
Min
Typ
Max
Units
5.0
V
VRWM
Reverse Working Voltage
VBR
Reverse Breakdown
Voltage
IT = 1mA
IR
Reverse Leakage Current
VRWM = 5V
100
nA
IPP = 1A, tp = 8/20μs
13
V
IPP = 4A, tp = 8/20μs
25
V
VC
Clamping Voltage
CJ
Junction Capacitance
VR = 0V, f = 1MHz
6.0
V
0.25
pF
The above data are for reference only.
http://www.microdiode.com
Rev:2020A0
Page :2
ESD05D6BU
Ultra Low Capacitance ESD Protection Diode
ELECTRICAL CHARACTERISTICS CURVE
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A0
Page :3
ESD05D6BU
Ultra Low Capacitance ESD Protection Diode
Outlitne Drawing
DFN0603 Package Outline Dimensions
Symbol
A
D
E
b
c
e
L1
L2
Dimensions In Millimeters
Min.
Max.
0.275
5
340
0.570
0
670
0.270
0
370
0.225
5
295
0.050 REF.
0.365
5
435
0.125
5
195
0.030 REF.
Dimensions In Inches
Min.
Max.
0.011
0.013
0.022
0.026
0.011
0.015
0.009
0.012
0.002 REF.
0.014
0.017
0.005
0.008
0.001 REF.
Suggested Pad Layout
Note:
1.Controlling dimension:in/millimeters.
2.General tolerance: ±0.05mm.
3.The pad layout is for reference purposes only.
PACKAGE SPECIFICATIONS
Package Reel Size
DFN0603
Reel DIA.
(mm)
Q'TY/Reel
(pcs)
Box Size
(mm)
QTY/Box
(pcs)
Carton Size
(mm)
Q'TY/Carton
(pcs)
178
10,000
210×210×205
100,000
445×445×230
400,000
7'
