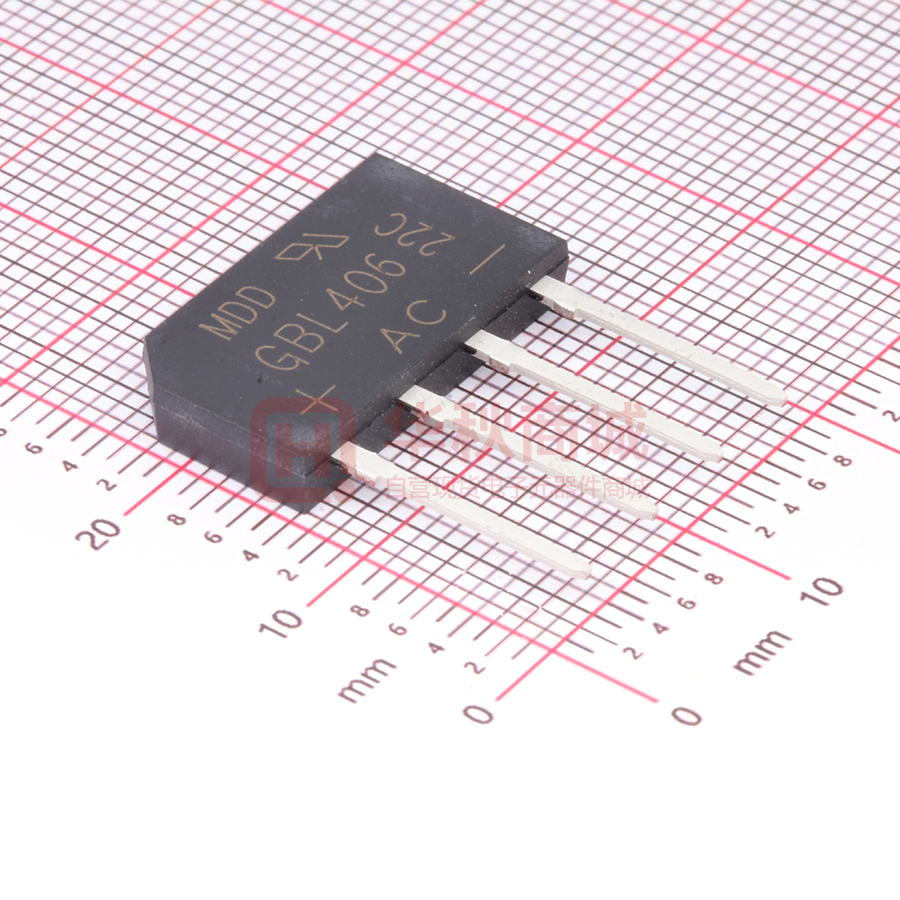

GBL406

GBL4005 THRU GBL410 Reverse Voltage - 50 to 1000 V olts Forward Current - 4.0 Amperes GLASS PASSIVATED BRIDGE RECTIFIERS Features GBL  Surge overload rating - 125 amperes peak  Ideal for printed circuit boards  Plastic material has underwriters laboratory flammability classification 94V-0 .44(11.2) .42(10.7) .106(2.7) .091(2.3) .56(14.2) .50(12.7) .059(1.5) .051(1.3) Mechanical Data Case : JEDEC GBL Molded plastic body Mounting Position : Any Weight : 0.076 ounce , 2.15 grams .142(3.6) .133(3.4) .81(20.6) .77(19.6) .098(2.5) *45° Chamfer .210 .190 (5.3) (4.8) .210 .190 (5.3) (4.8) .210 .190 (5.3) (4.8) .043(1.1) .035(0.9) .020(0.51) .045(1.14) .015(0.38) .035(0.90) Dimensions in milimeters Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward output rectified current at TA=50°C(Note 1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) VRRM VRMS VDC MDD MDD MDD 50 35 50 100 70 100 200 140 200 GBL4005 GBL401 GBL402 MDD MDD MDD MDD UNITS 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V GBL404 GBL406 GBL408 GBL410 I(AV) 4.0 A IFSM 125 A Maximum instantaneous forward voltage drop per birdge element at 4.0A VF 1.1 V Maximum DC reverse current at rated DC blocking voltage IR 10 μA 1.0 mA TJ -55 to +150 °C TSTG -55 to +150 °C TA=25°C TA=150°C Operating junction temperature range storage temperature range Note:1.Mounting conditions,0.5″lead length maximum. http://www.microdiode.com Rev:2024A2 Page :1 GBL4005 THRU GBL410 Reverse Voltage - 50 to 1000 V olts Forward Current - 4.0 Amperes Ratings And Characteristic Curves The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2
