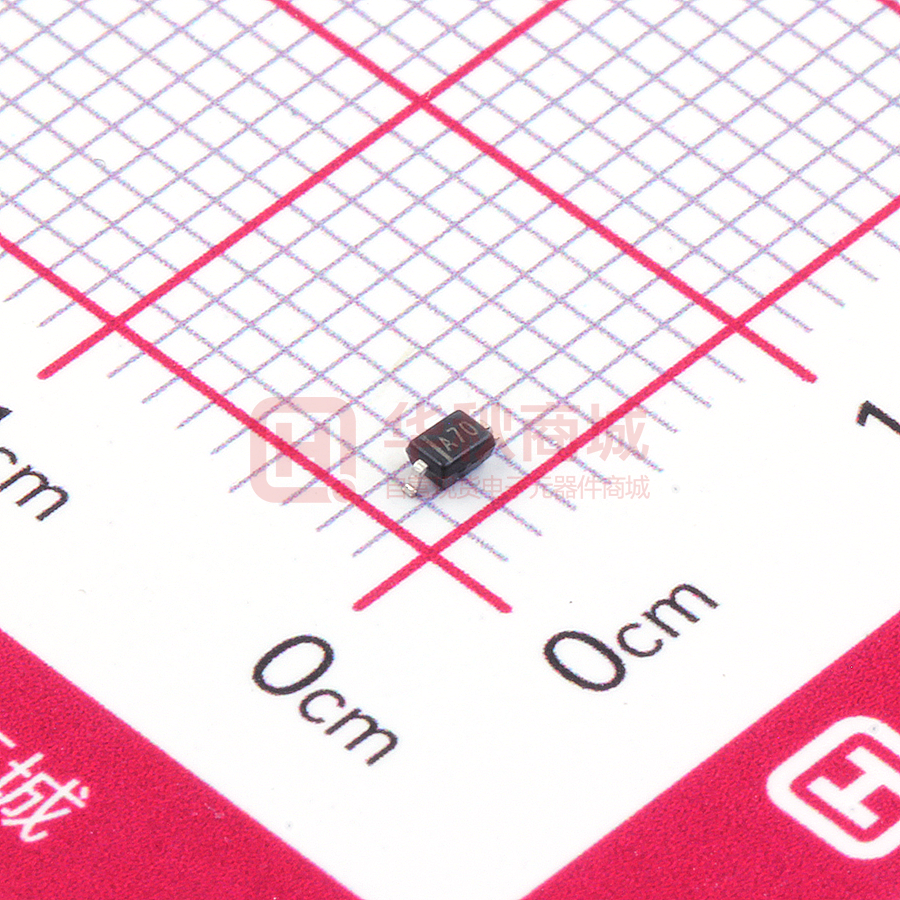

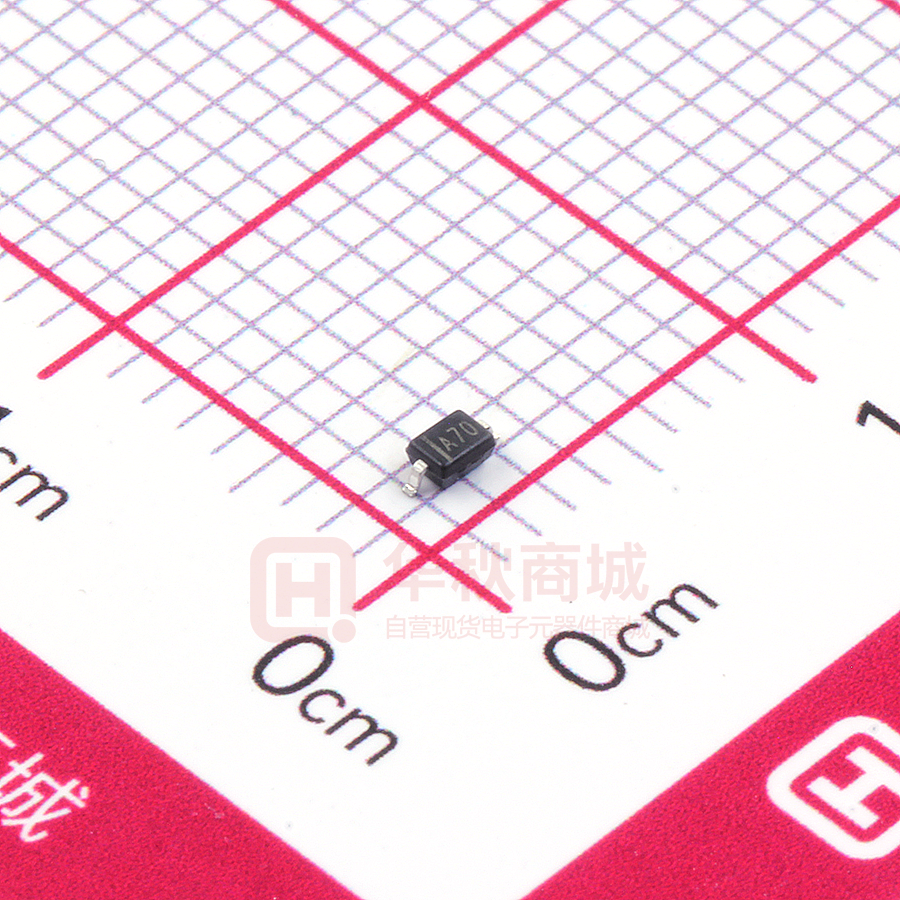

BAS70WS
SOD-323 Plastic-Encapsulate Diode
SOD-323
SCHOTTKEY BARRIER DIODE
FEATURES
0.070 (1.80)
0.063 (1.40)
0.108 (2.75)
0.100 (2.55)
0.043 (1.10)
Marking
0.016 (0.45)
0.008 (0.2 )
A70
Mechanical Data
Case : SOD-323
Terminals : Solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
Weight : 0.00019 ounce, 0.00548 grams
0.0079 (0.20)
0.019 (0.475) ref.
0.10 (0.0031)
0.047(1.20)
0.15 (0.0059)
0.055(1.40)
0.016(0.40)
0.009(0.25)
8°
Low power loss, high efficiency
High current capability
High surge capability
Fast Switching Speed
0.032 (0.8)
0.008(0.20)max.
Cathode bar
0° to
BAS70WS
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃
Symbo
Parameter
Peak Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Unit
Limit
VRRM
VRWM
VR
70
V
IO
200
mA
Peak Forward Surge Current, 8.3ms single half
sine-wave superimposed on rated load (JEDEC method)
IFSM
25
A
Power Dissipation
PTOT
225
mW
Thermal Resistance Junction to Ambient
RθJA
625
℃/W
Junction Temperature
Tj
150
℃
Storage Temperature
TSTG
-55~+150
℃
Average Rectified Output Current Ta=25℃
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Reverse breakdown voltage
Reverse voltage leakage current
Symbol
V(BR)
IR
Forward voltage
VF
Typical Junction Capacitance
CJ
Reveres recovery time
trr
Test
conditions
IR=10uA
Min
Max
70
VR=50V
VR=70V
IF=1mA
IF=10mA
IF=15mA
VR=0, f=1MHz
IF=IR=10mA,Irr=0.1×IR,
RL=100Ω
Unit
V
0.1
1.0
µA
0.47
0.75
1.0
V
30
pF
6
ns
The above data are for reference only.
DN:T21305A0
http://www.microdiode.com
Rev:2021A0
Page :1
BAS70WS
Typical Characterisitics
Fig.2 Typical Reverse Characteristics
Average Forward Current (A)
0.30
0.25
0.20
0.15
0.10
0.05
0.00
25
75
50
100
125
150
Instaneous Reverse Current ( μA)
Fig.1 Forward Current Derating Curve
10 4
10 3
T J =100°C
10 2
T J =75°C
10 1
T J =25°C
10 0
0
TA Temperature (°C)
1.0
0.1
0.01
0.001
0.5
1.0
1.5
2.0
100
10
0
2.5
0.1
20
15
10
05
8.3 ms Single Half Sine Wave
(JEDEC Method)
10
Number of Cycles at 60Hz
100
Transient Thermal Impedance( °C /W)
25
1
10
1
100
Reverse Voltage (V)
Fig.5 Maximum Non-Repetitive Peak
Forward Surage Current
Peak Forward Surage Current (A)
80
30
Instaneous Forward Voltage (V)
00
60
80
Junction Capacitance (pF)
Instaneous Forward Current (A)
T J =25°C
0
40
Fig.4 Typical Junction Capacitance
Fig.4 Typical Forward Characteristics
10
20
Percent of Rated Peak Reverse Voltage(%)
Fig.6 Typical Transient Thermal Impedance
2000
1000
100
10
0.01
0.1
1
10
100
t, Pulse Duration(sec)
The curve above is for reference only.
http://www.microdiode.com
Rev:2021A0
Page :2
BAS70WS
Packing information
unit:mm
P0
P1
d
Item
Symbol
Tolerance
Carrier width
Carrier length
Carrier depth
Sprocket hole
13" Reel outside diameter
13" Reel inner diameter
7" Reel outside diameter
7" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
Reel width
A
B
C
d
D
D1
D
D1
D2
E
F
P
P0
P1
T
W
W1
0.1
0.1
0.1
0.05
2.0
min
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
SOD-323
E
F
B
A
W
P
D2
T
D1
C
W1
D
1.46
2.90
1.25
1.50
330.00
50.00
178.00
54.40
13.00
1.75
3.50
4.00
4.00
2.00
0.06
8.00
12.30
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
Reel packing
PACKAGE
SOD-323
REEL SIZE
7"
REEL
(pcs)
COMPONENT
SPACING
(m/m)
BOX
(pcs)
INNER
BOX
(m/m)
REEL
DIA,
(m/m)
3,000
4.0
45,000
210*208*203
178
CARTON
SIZE
(m/m)
430*430*235
CARTON
(pcs)
APPROX.
GROSS WEIGHT
(kg)
180,000
9.0
Suggested Pad Layout
Symbol
A
Unit (mm)
Unit (inch)
0.047
B
1.2
1.2
C
2.6
0.102
D
1.4
0.055
E
3.8
0.149
0.047
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and
specifications at any time without notice. Customers should obtain and confirm the latest product information and
specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application
assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with
products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Microdiode
Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support
devices or systems without express written approval of Microdiode Electronics (Jiangsu).
http://www.microdiode.com
Rev:2021A0
Page :3
