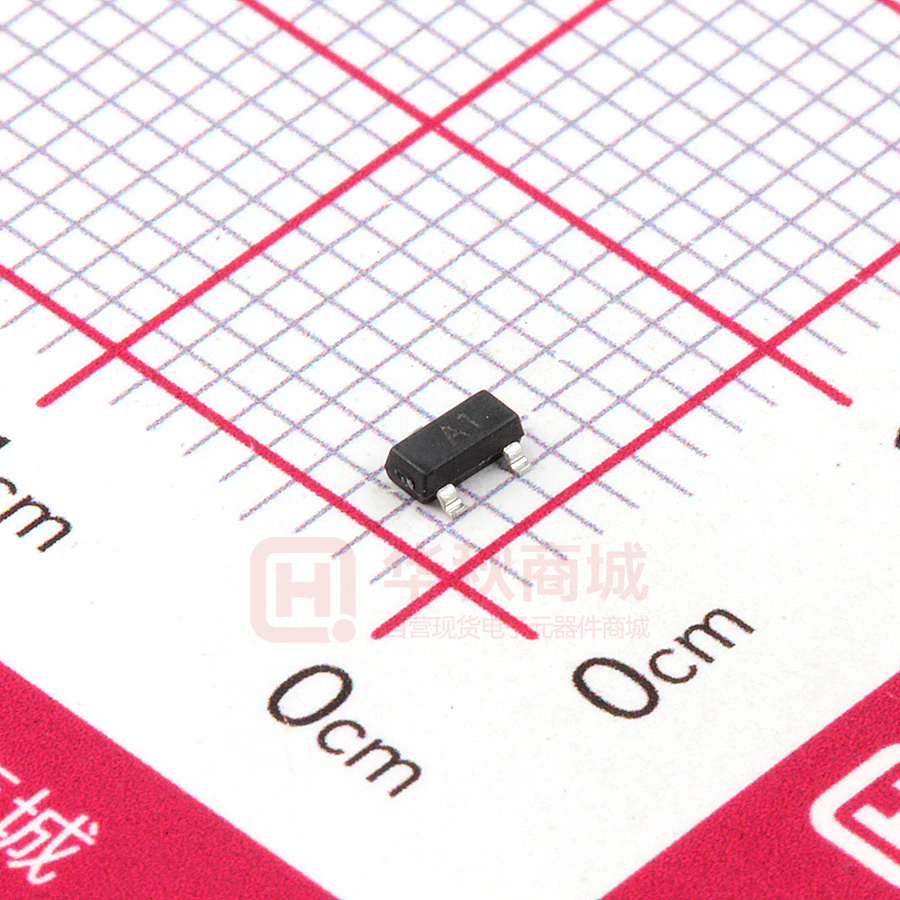

BAW56

BAW56/BAV70/BAV99 Plastic-Encapsulate Switching Diodes SOT-23 Features — — — — Fast switching speed Surface mount package ideally suited for automatic insertion For general purpose switching applications High conductance Mechanical Data — Case: SOT-23, Molded plastic — Marking: BAW56: A1, BAV70: A4, — BAV99: A7 Weight: 0.008 gram (approx.) Dimensions in inches and (millimeters) Maximum Ratings Type Number TA=25℃ unless otherwise specified Symbol BAW56/BAV70/BAV99 Reverse Voltage 75 VR Forward Current 200 IF Peak Forward Surge Current 500 IFM(surge) Power Dissipation 225 PD Thermal Resistance Junction to Ambient Air 556 RθJA Junction Temperature 150 TJ Storage Temperature Range -55 to 150 TSTG Electrical Characteristics Type Number Symbol Min Max Reverse Breakdown Voltage IR=100uA 75 VR IF=1.0mA 0.715 IF= 10mA 0.855 VF IF = 50mA 1.0 IF=150mA 1.25 Reverse Current VR=25V 30 IR VR=75V 2 Capacitance between terminals VR=0, f=1.0MHz 1.5 Cj Reverse Recovery Time (Note 1) 6.0 trr Note 1: Reverse Recovery Test Conditions: IF=IR=10mA, Irr=0.1 x IR, RL=100Ω. Units V mA mA mW o C/W o C o C Units V Forward Voltage ht t p : // Revision:20170701-P1 www.lgesemi .c o m V nA uA pF nS mail:lge@lgesemi.com BAW56/BAV70/BAV99 Plastic-Encapsulate Switching Diodes RATINGS AND CHARACTERISTIC CURVES (BAW56/BAV70/BAV99) FIG.2- TYPICAL LEAKAGE CURRENT FIG.1- TYPICAL FORWARD VOLTAGE 10 100 TA = 150 OC O TA = 65 C TA = 125 OC IR, REVERSE CURRENT. ( A) IF, FORWARD CURRENT (mA) 1.0 10 O TA = 25 C O TA = -40 C 1.0 TA = 65 OC 0.1 TA = 55 OC 0.01 TA = 25 OC 0.1 0.2 0.001 0.4 0.6 0.8 1.0 1.2 0 10 20 30 40 50 VR, REVERSE VOLTAGE (V) VF, FORWARD VOLTAGE (V) FIG.3- TYPICAL CAPACITANCE CJ , DIODE CAPACITANCE (pF) 1.0 0.9 0.8 0.7 0.6 0 2 4 6 8 VR, REVERSE VOLTAGE (V) PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG SOT- 23 3000/REEL 90000 40X20X22 5.00 4.00 ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com
