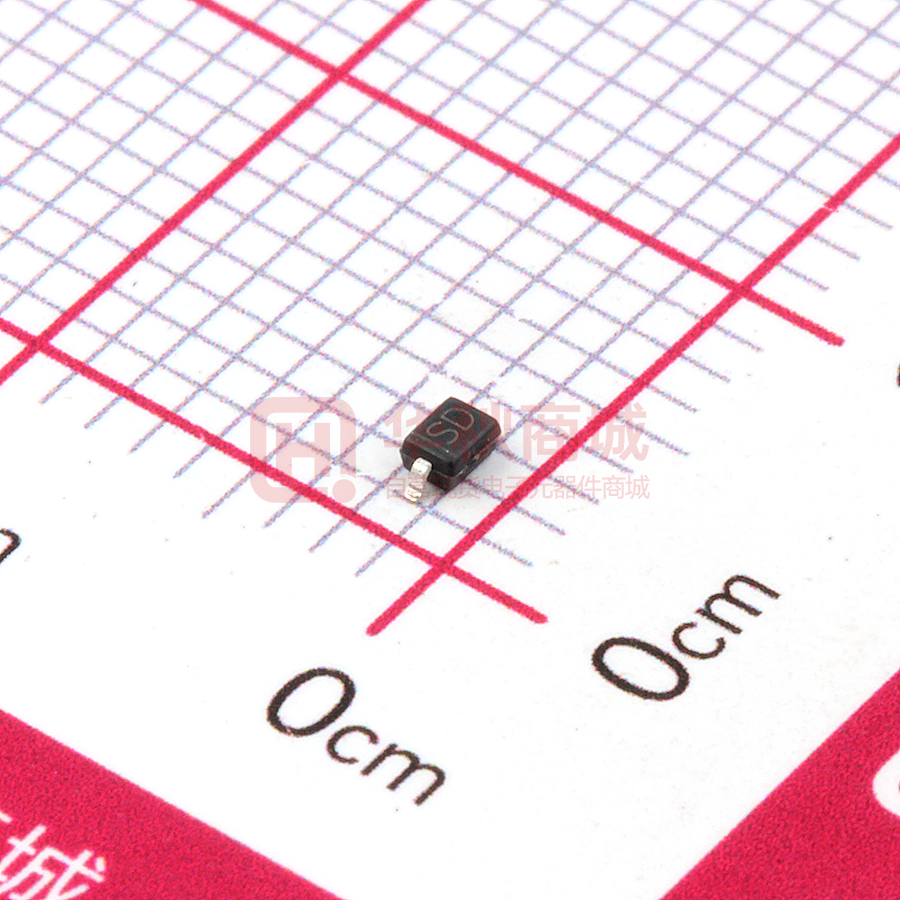

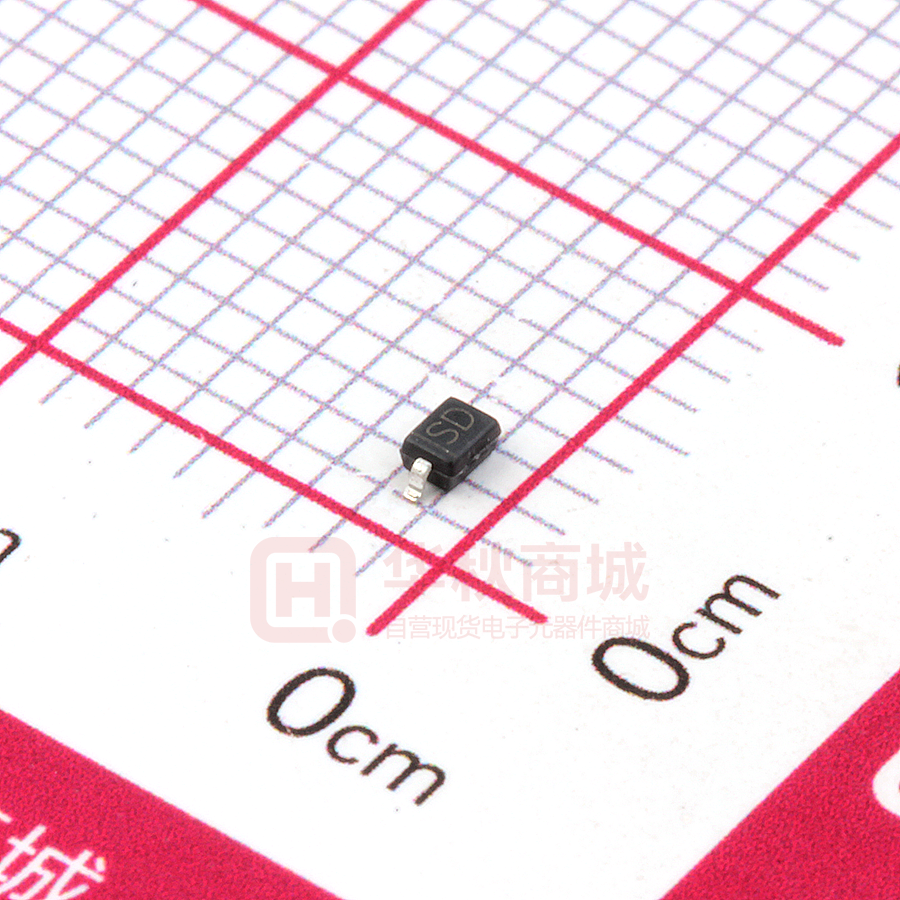

B0520WS

B0520WS/B0530WS/B0540WS Schottky Barrier Diode SOD-323 Features — — Low forward voltage drop. Guard ring construction for transient Protection. — High conductance. Applications — surface mount schottky barrier rectifier. Dimensions in inches and (millimeters) Ordering Information Type No. Marking B0520WS B0530WS B0540WS Package Code SD SE SF SOD-323 SOD-323 SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage VRRM VRWM B0520WS B0530WS B0540WS Unit 20 30 40 V 14 21 28 V VR RMS Reverse Voltage VR(RMS) Average Rectified Output Current IO 0.5 A Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load IFSM 5.5 A Power Dissipation Pd 250 mW Typical Thermal Resistance Junction to Ambient RθjA 244 ℃/W Operating and Storage Temperature Range Tj,Tstg -65 to +125 ℃ Voltage Rate of Change dv/dt 1000 V/μs ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com B0520WS/B0530WS/B0540WS Schottky Barrier Diode ELECTRICAL CHARACTERISTICS @ Ta=25℃ Characteristic unless otherwise specified Symbol B0520WS B0530WS B0540WS Unit Test Conditions V(BR)R 20 - 30 - 40 V IR= 250μA IR= 130μA IR= 20μA VFM 0.300 0.385 - 0.375 0.430 - 0.510 0.620 V IF = 0.1A, IF = 0.5A, IF = 1.0A, Maximum Leakage Current IRM 75 250 - 20 130 - 10 20 μA VR = 10V, VR = 15V, VR = 20V, VR = 30V, VR = 40V, Reverse Recovery Time trr 4 ns IF=IR=10mA Irr=0.1XIR,RL=100Ω Junction Capacitance CJ 170 pF f = 1MHz, VR = 0V DC Minimum Reverse Breakdown Voltage Maximum Forward Voltage Drop TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG SOD-323 3000/REEL 180000 44X44X22 9.00 8.00 ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com
