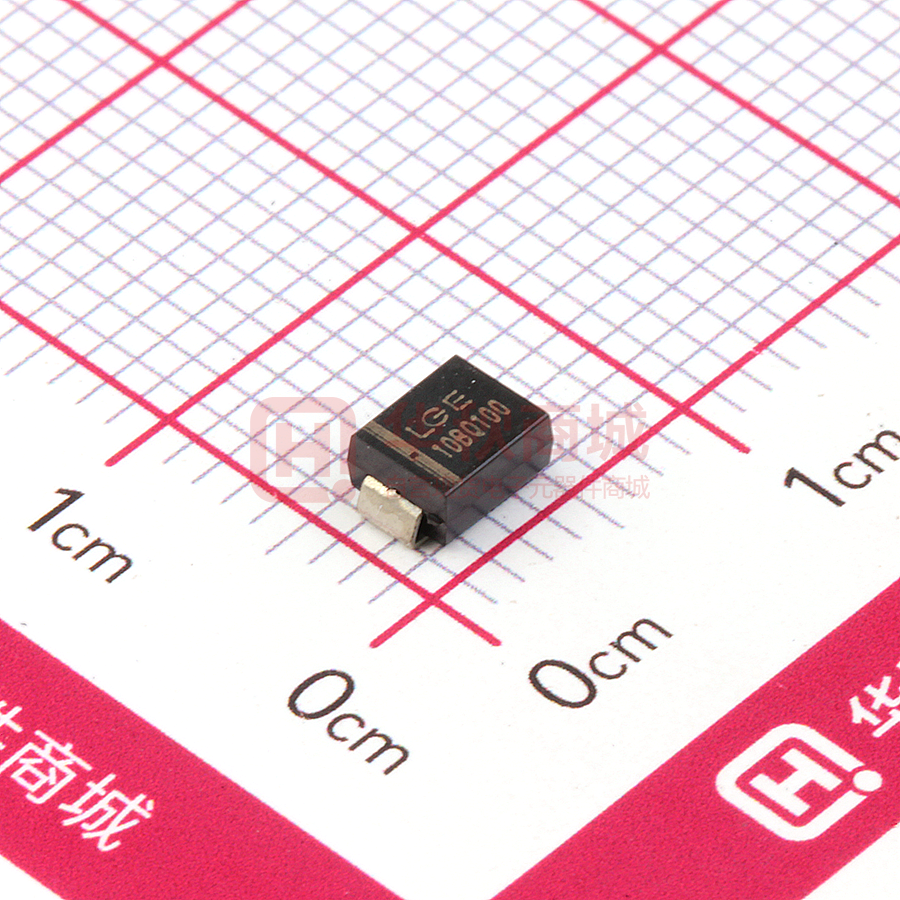

10BQ100 Surface Mount Schottky Barrier Rectifiers Features SMB/DO-214AA
Schottky barrier rectifier
Guardring protection
Low forward voltage
Reverse energy tested

High current capability Extremely low thermal resistance 0.180(4.57) 0.160(4.06) 0.086(2.20) 0.077(1.95) 0.155(3.94) 0.130(3.30) 0.209(5.30) 0.201(5.10) Mechanical Data 0.012(0.30) 0.006(0.15) 0.096(2.44) 0.084(2.13)
Case: SMB molded plastic body
Polarity: Color band denotes cathode end
Mounting position: ANY
Weight: 0.003 ounces, 0.093 gram 1111 0.059(1.50) 0.035(0.90) 0.008(0.20) 0.002(0.05) Dimensions in inches and(millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25oC ambient temperature unless otherwise specified 10BQ100 UNITS Maximum repetitive peak reverse voltage VRRM 100 V Maximum RMS voltage VRWS 70 V Maximum DC blocking voltage VDC 100 V Maximum average forward rectified current at TL=90 IF(AV) 1.0 A Peak forward surge current 8.3ms single half-sine-wave IFSM 40 A Maximum instantaneous forward voltage at I FM=1.0A (NOTE1) VF 0.85 V Maximum DC reverse current TJ=25 at rated DC blocking voltage TJ=125 Maximum thermal resistance Operating temperature range Storage temperature range IR R JL 0.2 6.0 28 mA o C/W TJ -55 ---- +150 o C TSTG -55 ---- +150 o C NOTE: 1.Pulse test: Pulse width 300us,duty cycle 1 % ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com 10BQ100 Surface Mount Schottky Barrier Rectifiers Ratings AND Charactieristic Curves 1.0 FIG.2-- PEAK FORWARD SURGE CURRENT PEAK FORWARD SURGE CURRENT,AMPERES CURRENT,AMPERES FIG.1 -- FORWARD DERATING CURVE Resistive or inductive Load 0.5 P.C.B.MOUNTED ON 0.2X0.2(5.0X5.0mm) COPPERPAD AREAS 0 50 60 70 80 90 100 110 120 130 140 150 160 170 40 20 0 LEAD TEMPERATURE 10 Pulse Width=300 1%DUTY CYCLE S 0 .1 0 .2 0 .4 0 .6 0 .8 1 .0 1 .2 1 .4 1 .6 INSTANTANEOUS FORWARD VOLTAGE,VOLTS 10 0 100 10 TJ=125℃ 1 0.1 T J=25℃ 0.01 0.001 0 20 40 60 80 1 00 PERCENT OF RATED PEAK REVERSE VOLTAGE, PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG SMB 3000/REEL 48000 36X35.8X36.5 12.00 11.00 ht t p : // Revision:20170701-P1 10 FIG.4 -- TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT,MICRO AMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES 50 0 .0 1 0 1 NUMBER OF CYCLES AT 60Hz FIG.3 -- TYPICAL FORWARD CHARACTERISTICS 1 O TL=100 C 8 .3 m s S in g le H a lf S in e -W a v e (J E D E C M e th o d ) www.lgesemi .c o m mail:lge@lgesemi.com
