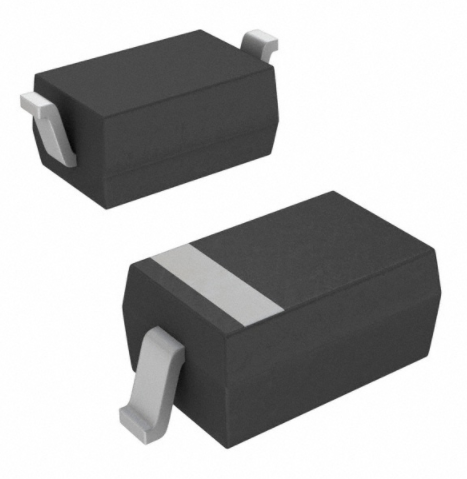

B0520WS THRU B0540WS
Reverse Voltage 20-40 Volts
Forward Current - 0.5 Ampere
SCHOTTKY BARRIER RECTIFIERS
Features
SOD-323
Low forward voltage drop
Guard ring construction for transient protection
High conductance
Also available in lead free version
0.008(0.20)max.
Cathode bar
0.055(1.40)
0.016(0.40)
0.0098(0.25)
0.047(1.20)
0.071(1.80)
0.063(1.40)
0.108 (2.75)
Absolute Maximum Ratings at 25 °C
0.010 (0.25)
0.019 (0.475) ref.
Dimensions in inches and (millimeters)
Symbols
B0520WS
B0530WS
Maximum Repetitive Peak Reverse Voltage
V RRM
20
30
40
V
Maximum RMS voltage
V RMS
14
21
28
V
Maximum DC Blocking Voltage
VDC
20
30
40
Average rectified output current
I0
0.5
A
Non-reptitive Peak Forward Surge Current at 8.3ms
I FSM
22
A
Typical Thermal Resistance (1)
RθJA
500
°C/W
Operating Temperature Range
Tj
-55 ~ +125
°C
Storage Temperature Range
Tstg
-55 ~ +150
°C
Parameter
0.0031(0.08)
0.0059 (0.15)
0.018 (0.45)
8°
0.008 (0.2 )
Case: JEDEC SOD-323 molded plastic body
Terminals: Plated leads solderable per MILSTD-750, Method 2026
Polarity: Polarity symbols marked on case
Weight : 0.00019 ounce, 0.00548 grams
Marking: B0520WS:SD, B0530WS:SE, B0540WS:SF
0° to
0.043 (1.00)
Mechanical Data
0.032 (0.80)
0.100 (2.55)
B0540WS
Units
(1)P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.
Characteristics at Ta= 25 °C
Parameter
at 0.1A
Maximum Forward Voltage at If
at 0.5A
Symbols
B0520WS
VF
0.33
0.39
0.36
–
–
0.45
–
–
0.51
at 1.0A
75
at 10V
Peak Reverse Current at VR
at 15V
at 20V
at 30V
at40V
IR
–
250
–
–
B0530WS
75
100
500
B0540WS
Units
V
0.62
–
–
10
–
uA
20
DN:T21310A1
http://www.microdiode.com
Rev:2021A1
Page :1
B0520WS THRU B0540WS
Reverse Voltage 20-40 Volts
Forward Current - 0.5 Ampere
Typical Characterisitics
Fig.2 Typical Reverse Characteristics
Fig.1 Forward Current Derating Curve
Instaneous Reverse Current ( μA)
0.6
Average Forward Current (A)
0.5
0.4
0.3
0.2
0.1
Single phase half-wave 60 Hz resistive
or inductive load
0.0
25
75
50
100
125
10
4
10
3
10
2
TJ=100°C
TJ=75°C
TJ=25°C
101
10
150
0
0
Case Temperature (°C)
20
40
60
80
100
Percent of Rated Peak Reverse Voltage(%)
Fig.3 TYPICAL FORWARD VOLTAGE
Fig.4 Typical Junction Capacitance
1.0
70
Junction Capacitance (pF)
INSTANTANEOUS FORWARD CURRENT AMPERS
100
TA=100℃
0.1
TA=25℃
0.01
0
0.1
0.2
0.3
0.4
0.5
30
20
10
0.1
30
20
15
10
05
00
Number of Cycles at 50Hz
100
2000
100
Transient Thermal Impedance(°C/W)
25
10
10
Fig.6 Typical Transient Thermal Impedance
8.3 ms Single Half Sine Wave (JEDEC
Method)
1
1
Reverse Voltage (V)
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
Fig.5 Maximum Non-Repetitive Peak
Forward Surage Current
Peak Forward Surage Current (A)
40
1000
100
10
0.01
0.1
1
10
100
t, Pulse Duration(sec)
The curve above is for reference only.
http://www.microdiode.com
Rev:2021A1
Page :2
B0520WS THRU B0540WS
Reverse Voltage 20-40 Volts
Forward Current - 0.5 Ampere
Packing information
P0
unit:mm
P1
d
Item
E
F
B
A
W
Carrier width
Carrier length
Carrier depth
Sprocket hole
7" Reel outside diameter
7" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
Reel width
P
D2
T
D1
C
W1
D
Symbol
Tolerance
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
W1
0.1
0.1
0.1
0.05
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
SOD-323
2.1
4.0
1.60
1.55
178.00
50.0
13.00
1.75
3.50
4.00
4.00
2.00
0.25
8.15
10.5
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
Reel packing
PACKAGE
REEL SIZE
REEL
(pcs)
COMPONENT
SPACING
(m/m)
BOX
(pcs)
INNER
BOX
(m/m)
REEL
DIA,
(m/m)
CARTON
SIZE
(m/m)
CARTON
(pcs)
SOD-323
7"
3,000
4.0
45,000
210*208*203
178
430*430*235
180,000
APPROX.
GROSS WEIGHT
(kg)
Suggested Pad Layout
Symbol
Unit (mm)
Unit (inch)
A
0.028
B
0.7
0.7
C
2.15
0.085
D
1.8
0.071
E
2.85
0.112
0.028
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and
specifications at any time without notice. Customers should obtain and confirm the latest product information and
specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application
assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with
products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Microdiode
Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support
devices or systems without express written approval of Microdiode Electronics (Jiangsu).
http://www.microdiode.com
Rev:2021A1
Page :3
