MMBZxxxAL Series
Common Anode Zeners for ESD Protection
SOT-23 Plastic-Encapsulate Anode Zeners for ESD Protection Diodes
DESCRIPTION
The dual monolithic silicon Zener diodes are designed for applications requiring transient overvoltage
protection capability. They are intended for use in voltage and ESD sensitive equipment such as
computers, printers, business machines, communication systems, medical equipment and other
applications. Their dual junction common anode design protects two separate lines using only one
package. These devices ideal for situations where board space is at a premium.
Features
SOT-23 package allows either two separate
unidirectional configurations or a single
bidirectional configuration.
Working peak reverse voltage 3V to 22V
Standard Zener breakdown voltage 5.6V to 27V
Peak power 24 or Watts @ 1.0ms (unidirectional)
per Figure 6 Waveform
ESD Rating:
Class 3B (>16kV) per the Human Body Model
Class C (>400V) per Machine Model
ESD Rating:
ESD Rating of IEC61000-4-2 level 4, ±30kV
contact Discharge
Low leakage < 5.0uA
Meets MSL 1 Requirements
Applications
Computers
Printers
Business Machines
Communication system
Medical equipment
Schematic & Pin Configuration
3
1
2
SOT23 (Top View)
Circuit Diagram
Pin Description
1
cathode (diode 1)
2
cathode (diode 2)
3
common anode
Mechanical Characteristics

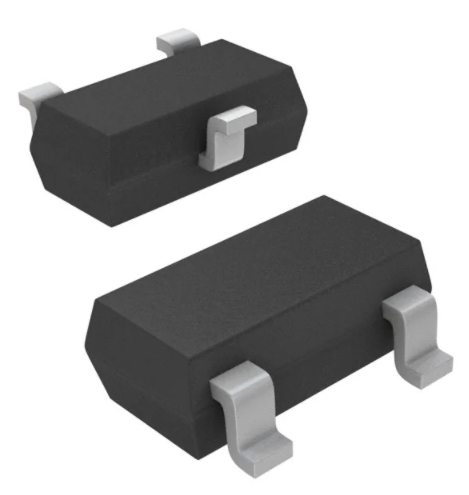

Package: SOT-23
Flammability Rating: UL 94V-0
Terminal: Matte tin plated.
High temperature soldering guaranted:
260℃/10s
Packaging: Tape and Reel
Quantity per reel: 3,000pcs
DN:T20401A0
http://www.microdiode.com
Rev:2020A0
Page :1
MMBZxxxAL Series
Common Anode Zeners for ESD Protection
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
PPK
24
40
W
Peak Dissipation @1.0ms
MMBZ5V6AL thru MMBZ9V1AL
MMBZ12VAL thru MMBZ27VAL
Total Power Dissipation
PD
Operating Temperature
TOPT
−55 to +150
°C
Storage Temperature
TSTG
−55 to +150
°C
TL
260(10 sec.)
°C
Lead Solder Temperature – Maximum (10 Second
Duration)
200
mW
Electrical Characteristics (TA=25°C unless otherwise specified)
24WATTS UNIDIRECTIONAL (Circuit tied to Pins 1 and 3 or Pins 2 to 3)
Part
Device
Number
Marking
VRWM
IR
(V)
(μA)
@
VRWM
VBR
(V)
Min
Nom
Max
ZZT
(mA)
(¡)
@
Max
IT
@IZT
ZZK
VC
(mA
(¡)
)
@
Max
IZK
(V)
Max
(A)
@
IPP
MMBZ5V6AL
5A6
3.0
5.0
5.32
5.6
5.88
20
11
1600
0.25
8.0
3.0
MMBZ6V2AL
6A2
3.0
0.5
5.89
6.2
6.51
1.0
--
--
--
8.7
2.76
MMBZ6V8AL
6A8
4.5
0.5
6.46
6.8
7.14
1.0
--
--
--
9.6
2.5
MMBZ9V1AL
9A1
6.0
0.3
8.65
9.1
9.56
1.0
--
--
--
14
1.7
VF=0.9V Max @ IF=10mA
40WATTS UNIDIRECTIONAL (Circuit tied to Pins 1 and 3 or Pins 2 to 3)
Part
Device
Number
Marking
VRWM
IR
(V)
(nA)
@
VRWM
VBR
VC (note1)
(V)
(mA)
Min
Nom
Max
@
IT
(V)
Max
(A)
@
IPP
MMBZ12VAL
12A
8.5
200
11.40
12
12.60
1
17
2.35
MMBZ15VAL
15A
12.0
50
14.25
15
15.75
1
21
1.90
MMBZ18VAL
18A
14.5
50
17.10
18
18.90
1
25
1.60
MMBZ27VAL
27A
22.0
50
25.65
27
28.35
1
40
1.0
VF=0.9V Max @ IF=10mA
Note: 1. Surge Current waveform per Figure 5
2.The above data are for reference only.
http://www.microdiode.com
Rev:2020A0
Page :2
MMBZxxxAL Series
Common Anode Zeners for ESD Protection
ELECTRICAL CHARACTERISTICS CURVE
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A0
Page :3
MMBZxxxAL Series
Common Anode Zeners for ESD Protection
ELECTRICAL CHARACTERISTICS CURVE
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A0
Page :4
MMBZxxxAL Series
Common Anode Zeners for ESD Protection
Outlitne Drawing
SOT-23 Package Outline Dimensions
e
Suggested Pad Layout
0.037
0.95
0.037
0.95
L
L1
E
E1
Symbol
A
A1
b
c
D
E
E1
e
L
L1
θ
Dimensions In Millimeters
Min
Typ
Max
1.00
1.40
0.10
0.50
0.35
0.20
0.10
2.70
2.90
3.10
1.40
1.60
2.4
2.80
1.90
0.10
0.30
0.4
0°
10°
Note:
1. Controlling dimension:in/millimeters.
2. General tolerance: ±0.05mm.
3. The pad layout is for reference purposes only.
0.079
2.0
0.035
0.9
0.031
0.8
inches
mm
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its
products and specifications at any time without notice. Customers should obtain and confirm the
latest product information and specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, not does Microdiode Electronics
(Jiangsu) assume any liability for application assistance or customer product design. Microdiode
Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased
or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of
Microdiode Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components
in life support devices or systems without express written approval of Microdiode Electronics
(Jiangsu).
http://www.microdiode.com
Rev:2020A0
Page :5
MMBZxxxAL Series
Common Anode Zeners for ESD Protection
SOT-23 Tape and Reel
Packaging Description:
SOT-23 parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. The cover tape is a multilayer
film (Heat Activated Adhesive in nature) primarily
composed of polyester film,adhesive laye,sealant,
and anti-static sprayed agent.These reeled parts In
standard option are shipped with 3,000 units per 7"
or 17.8cm diameter reel. The reels are clear in color
and is made of polystyrene plastic (anti-static
coated).
3000 pcs
http://www.microdiode.com
7 Inch
45,000 pcs
203×203×195
180,000 pcs
438×438×220
Rev:2020A0
Page :6
