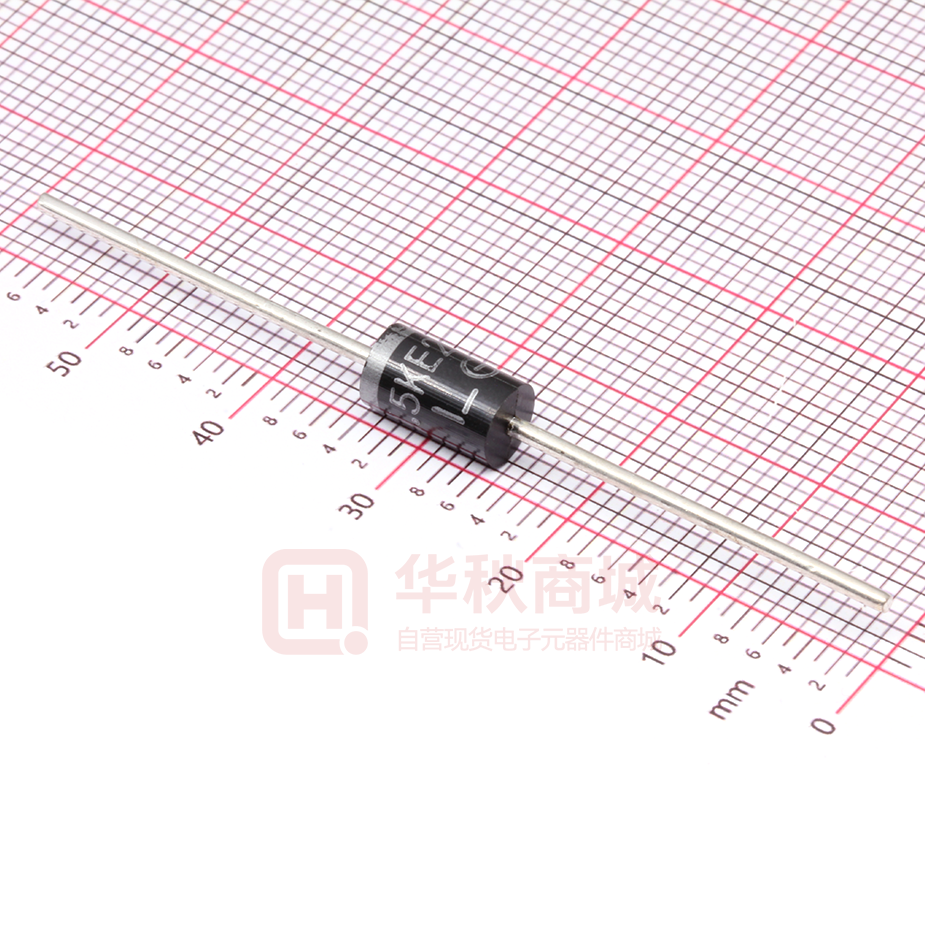

1.5KE200A

1.5KE SERIES 1500 WattsTransient Voltage Suppressor Diodes DO-27 Features
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 1500W surge capability at 10 x 1000 us waveform Excellent clamping capability Low Dynamic impedance Fast response time: Typically less than 1.0ps from 0 volts to VBR for unidirectional and 5.0 ns for bidirectional Typical IR less than 1uA above 10V High temperature soldering guaranteed: o 260 C / 10 seconds / .375”,(9.5mm) lead length / 5lbs.,(2.3kg) tension





1.0 (25.4) MIN. .042 (1.10) DIA. .037 (0.90) .375 (9.5) .335 (8.5) .210 (5.3) .190 (4.8) DIA. 1.0 (25.4) MIN. Mechanical Data

Case: Molded plastic Polarity: Color band denotes cathode except bipolar Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% Type Number o Peak Power Dissipation at TA=25 C, Tp=1ms (Note 1) Steady State Power Dissipation at TL=75 oC Lead Lengths .375”, 9.5mm (Note 2) Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) (Note 3) Maximum Instantaneous Forward Voltage at 50.0A for Unidirectional Only (Note 4) Symbol PPK Value Minimum1500 Units Watts PD 6.5 Watts IFSM 200 Amps VF 3.5 / 5.0 Volts Operating and Storage Temperature Range TJ, TSTG -55 to + 175 Notes: 1. Non-repetitive Current Pulse Per Fig. 3 and Derated above TA=25oC Per Fig. 2. 2. Mounted on Copper Pad Area of 0.6 x 0.6” (16 x 16 mm) Per Fig. 4. 3. 8.3ms Single Half Sine-wave or Equivalent Square Wave, Duty Cycle=4 Pulses Per Minutes Maximum. 4. VF=3.5V for Devices of VBR ≤ 200V and VF=5.0V Max. for Devices VBR>200V. o C Devices for Bipolar Applications 1. For Bidirectional Use C or CA Suffix for Types 1.5KE6.8 through Types 1.5KE440. 2. Electrical Characteristics Apply in Both Directions. Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com 1.5KE SERIES 1500 WattsTransient Voltage Suppressor Diodes ELECTRICAL CHARACTERISTICS (TA=25OC unless otherwise noted) 1.5KE SERIES Uni-polar 1.5KE6.8 1.5KE6.8A 1.5KE7.5 1.5KE7.5 1.5KE8.2 1.5KE8.2A 1.5KE9.1 1.5KE9.1A 1.5KE10 1.5KE10A 1.5KE11 1.5KE11A 1.5KE12 1.5KE12A 1.5KE13 1.5KE13A 1.5KE15 1.5KE15A 1.5KE16 1.5KE16A 1.5KE18 1.5KE18A 1.5KE20 1.5KE20A 1.5KE22 1.5KE22A 1.5KE24 1.5KE24A 1.5KE27 1.5KE27A 1.5KE30 1.5KE30A 1.5KE33 1.5KE33A 1.5KE36 1.5KE36A 1.5KE39 1.5KE39A 1.5KE43 1.5KE43A 1.5KE47 1.5KE47A 1.5KE51 1.5KE51A 1.5KE56 1.5KE56A 1.5KE62 1.5KE62A 1.5KE68 1.5KE68A 1.5KE75 1.5KE75A 1.5KE82 1.5KE82A 1.5KE91 1.5KE91A 1.5KE100 1.5KE100A Revision:20170701-P1 Bi-polar 1.5KE6.8C 1.5KE6.8CA 1.5KE7.5C 1.5KE7.5CA 1.5KE8.2C 1.5KE8.2CA 1.5KE9.1C 1.5KE9.1CA 1.5KE10C 1.5KE10CA 1.5KE11C 1.5KE11CA 1.5KE12C 1.5KE12CA 1.5KE13C 1.5KE13CA 1.5KE15C 1.5KE15CA 1.5KE16C 1.5KE16CA 1.5KE18C 1.5KE18CA 1.5KE20C 1.5KE20CA 1.5KE22C 1.5KE22CA 1.5KE24C 1.5KE24CA 1.5KE27C 1.5KE27CA 1.5KE30C 1.5KE30CA 1.5KE33C 1.5KE33CA 1.5KE36C 1.5KE36CA 1.5KE39C 1.5KE39CA 1.5KE43C 1.5KE43CA 1.5KE47C 1.5KE47CA 1.5KE51C 1.5KE51CA 1.5KE56C 1.5KE56CA 1.5KE62C 1.5KE62CA 1.5KE62C 1.5KE62CA 1.5KE75C 1.5KE75CA 1.5KE82C 1.5KE82CA 1.5KE91C 1.5KE91CA 1.5KE100C 1.5KE100CA Breakdown voltage VBR @ IT Min (V) Max (V) 6.12 6.46 6.75 7.13 7.38 7.79 8.19 8.65 9.00 9.50 9.90 10.45 10.80 11.40 11.70 12.35 13.50 14.25 14.40 15.20 16.20 17.10 18.00 19.00 19.80 20.90 21.60 22.80 24.30 25.65 27.00 28.50 29.70 31.35 32.40 34.20 35.10 37.05 38.70 40.85 42.30 44.65 45.90 48.45 50.40 53.20 55.80 58.90 61.20 64.60 67.50 71.25 73.80 77.90 81.90 86.45 90.00 95.00 7.48 7.14 8.25 7.88 9.02 8.61 10.01 9.56 11.00 10.50 12.10 11.55 13.20 12.60 14.30 13.65 16.50 15.75 17.60 16.80 19.80 18.90 22.00 21.00 24.20 23.10 26.40 25.20 29.70 28.35 33.00 31.50 36.30 34.65 39.60 37.80 42.90 40.95 47.30 45.15 51.70 49.35 56.10 53.55 61.60 58.80 68.20 65.10 74.80 71.40 82.50 78.75 90.20 86.10 100.10 95.55 110.00 105.0 ht t p : // IT (mA) 10 10 10 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Maximum Reverse Leakage IR(uA) @VRWM 1000 1000 500 500 200 200 50 50 10 10 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Maximum Working Reverse PeakRevers Surge e Voltage Current VRWM Ipp(A) @10x1000us (Volts) sinewave 5.5 139 5.8 143 6.1 128 6.4 133 6.6 120 7.0 124 7.4 109 7.8 112 8.1 100 8.6 103 8.9 92.6 9.4 96.2 9.7 86.7 10.2 89.8 10.5 78.9 11.1 82.4 12.1 68.2 12.8 70.8 12.9 63.8 13.6 66.7 14.5 56.6 15.3 59.5 16.2 51.5 17.1 54.2 17.8 47.0 18.8 49.0 19.4 43.2 20.5 45.2 21.8 38.4 23.1 40.0 24.3 34.5 25.6 36.2 26.8 31.4 28.2 32.8 29.1 28.8 30.8 30.1 31.6 26.6 33.3 27.8 34.8 24.2 36.8 25.3 38.1 22.1 40.2 23.1 41.3 20.4 43.6 21.4 45.4 18.6 47.8 19.5 50.2 16.9 53.0 17.6 55.1 15.3 58.1 16.3 60.7 13.9 64.1 14.6 66.4 12.7 70.1 13.3 73.7 11.5 77.8 12.0 81.0 10.4 85.5 10.9 www.lgesem i .c o m Maximum Clamping Voltage Vc (Volts) @Ipp 10.8 10.5 11.7 11.3 12.5 12.1 13.8 13.4 15.0 14.5 16.2 15.6 17.3 16.7 19.0 18.2 22.0 21.2 23.5 22.5 26.5 25.2 29.1 27.7 31.9 30.6 34.7 33.2 39.1 37.5 43.5 41.4 47.7 45.7 52.0 49.9 56.4 53.9 61.9 59.3 67.8 64.8 73.5 70.1 80.5 77.0 89.0 85.0 98.0 92.0 108 103 118 113 131 125 144 137 mail:lge@lgesemi.com 1.5KE SERIES 1500 WattsTransient Voltage Suppressor Diodes ELECTRICAL CHARACTERISTICS (TA=25OC unless otherwise noted) 1.5KE SERIES Uni-polar 1.5KE110 1.5KE110A 1.5KE120 1.5KE120A 1.5KE130 1.5KE130A 1.5KE150 1.5KE150A 1.5KE160 1.5KE160A 1.5KE170 1.5KE170A 1.5KE180 1.5KE180A 1.5KE200 1.5KE200A 1.5KE220 1.5KE220A 1.5KE250 1.5KE250A 1.5KE300 1.5KE300A 1.5KE350 1.5KE350A 1.5KE380 1.5KE380A 1.5KE400 1.5KE400A 1.5KE440 1.5KE440A 1.5KE500 1.5KE500A 1.5KE520 1.5KE520A 1.5KE550 1.5KE550A 1.5KE600 1.5KE600A Note: Bi-polar 1.5KE110C 1.5KE110CA 1.5KE120C 1.5KE120CA 1.5KE130C 1.5KE130CA 1.5KE150C 1.5KE150CA 1.5KE160C 1.5KE160CA 1.5KE170C 1.5KE170CA 1.5KE180C 1.5KE180CA 1.5KE200C 1.5KE200CA 1.5KE220C 1.5KE220CA 1.5KE250C 1.5KE250CA 1.5KE300C 1.5KE300CA 1.5KE350C 1.5KE350CA 1.5KE380C 1.5KE380CA 1.5KE400C 1.5KE400CA 1.5KE440C 1.5KE440CA 1.5KE500C 1.5KE500CA 1.5KE520C 1.5KE520CA 1.5KE550C 1.5KE550CA 1.5KE600C 1.5KE600CA Breakdown voltage VBR @ IT Min (V) 99.00 104.5 108.0 114.0 117.0 123.5 135.0 142.5 144.0 152.0 153.0 161.5 162.0 171.0 180.0 190.0 198.0 209.0 225.0 237.5 270.0 285.0 315.0 332.5 342.0 361.0 360.0 380.0 396.0 418.0 450.0 475.0 468.0 494.0 495.0 522.5 540.0 570.0 Max (V) 121.0 115.5 132.0 126.0 143.0 136.5 165.0 157.5 176.0 168.0 187.0 178.5 198.0 189.0 220.0 210.0 242.0 231.0 275.0 262.5 330.0 315.0 385.0 367.5 418.0 399.0 440.0 420.0 484.0 462.0 550.0 525.0 572.0 546.0 605.0 577.5 660.0 630.0 IT (mA) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Maximum Reverse Leakage IR(uA) @VRWM 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Maximum Working Maximum Reverse PeakRevers Clamping Surge e Voltage Voltage Current VRWM Vc (Volts) Ipp(A) @Ipp @10x1000us (Volts) sinewave 89.2 9.49 158 94.0 9.87 152 97.2 8.67 173 102 9.09 165 105 8.02 187 111 8.38 179 121 6.98 215 128 7.25 207 130 6.52 230 136 6.85 219 138 6.15 244 145 6.41 234 146 5.81 258 154 6.10 246 162 5.23 287 171 5.47 274 175 4.36 344 185 4.57 328 202 4.17 360 214 4.36 344 243 3.49 430 256 3.62 414 284 2.98 504 299 3.11 482 309 2.74 547 325 2.86 524 325 2.60 576 342 2.72 552 357 2.37 634 376 2.47 607 406 2.08 720 428 2.17 690 422 2.00 749 445 2.09 718 447 1.89 792 470 1.98 759 487 1.74 864 513 1.81 828 1. Suffix 'A ' denotes 5% tolerance device. Without 'A' denotes 10% tolerance device. 2. Add suffix 'C 'or ' CA ' after part number to specify Bi-directional devices. 3. For Bi-Directional devices having VR of 10 volts and under, the IR limit is double . 4. For Uni-directional devices VF max=3.5v at IF=25 A 300us square wave pulse. Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com 1.5KE SERIES 1500 WattsTransient Voltage Suppressor Diodes RATINGS AND CHARACTERISTIC CURVES (1.5KE SERIES) FIG.1- PEAK PULSE POWER RATING CURVE FIG.2- PULSE DERATING CURVE 10 1 0.1 0.1 s 1.0 s 10 s 100 s 1.0ms 10ms 100 DERATING IN PERCENTAGE. % NON-REPETITIVE PULSE WAVEFORM SHOWN in FIG. 3 TA=250C PEAK PULSE POWER (PPP) or CURRENT (IPPM) Pppm, PEAK PULSE POWER, KW 100 75 L=0.375"(9.5mm) LEAD LENGTHS 50 PULSE Without heat sink 25 0 0.8 X 0.8 X .040" (20 X 20 X 1mm.) COPPER HEAT SINKS 0 25 FIG.3- CLAMPING POWER PULSE WAVEFORM PULSE WIDTH (td) is DEFINED as the POINT WHERE the PEAK CURRENT DECAYS to 50% of lPPM HALF VALUE- lPPM 2 10/1000msec. WAVEFORM as DEFINED by R.E.A. 50 0 td 0 1.0 2.0 3.0 t, TIME, ms CJ, JUNCTION CAPACITANCE. (pF) 10000 PEAK FORWARD SURGE CURRENT. (A) PEAK PULSE CURRENT - % 100 75 100 125 150 175 200 O 150 PEAK VALUE lPPM 50 TA, AMBIENT TEMPERATURE. ( C) td. PULSE WIDTH, sec. tr=10msec. With heat sink 4.0 200 FIG.4- MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 8.3ms Single Half Sine Wave JEDEC Method UNIDIRECTIONAL ONLY 100 10 1 10 100 NUMBER OF CYCLES AT 60Hz FIG.5- TYPICAL JUNCTION CAPACITANCE UNIDIRECTIONAL UNIDIRECTIONAL BIDIRECTIONA VR=0 1000 Tj = 25 C f=1.0MHz Vsig=50mVp-p O 100 VR-RATED STAND-OFF VOLTAGE 10 1 10 100 200 V(BR), BREAKDOWN VOLTAGE. VOLTS Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com
