Transient Voltage Suppressors for ESD Protection
The DESD5Z5.0 is designed to protect voltage
sensitive components from ESD and transient voltage
events. Excellent clamping capability, low leakage, and
fast response time , make these parts ideal for ESD
protection on designs where board space is at a
premium.
PINNING
DESCRIPTION
PIN
1
Cathode
2
Anode
1
●APPLICATIONS
1)Cell phones
2)Portable devices
3)Digital cameras
4)Power supplies
5C
2
Top View
Marking Code: " 5C"

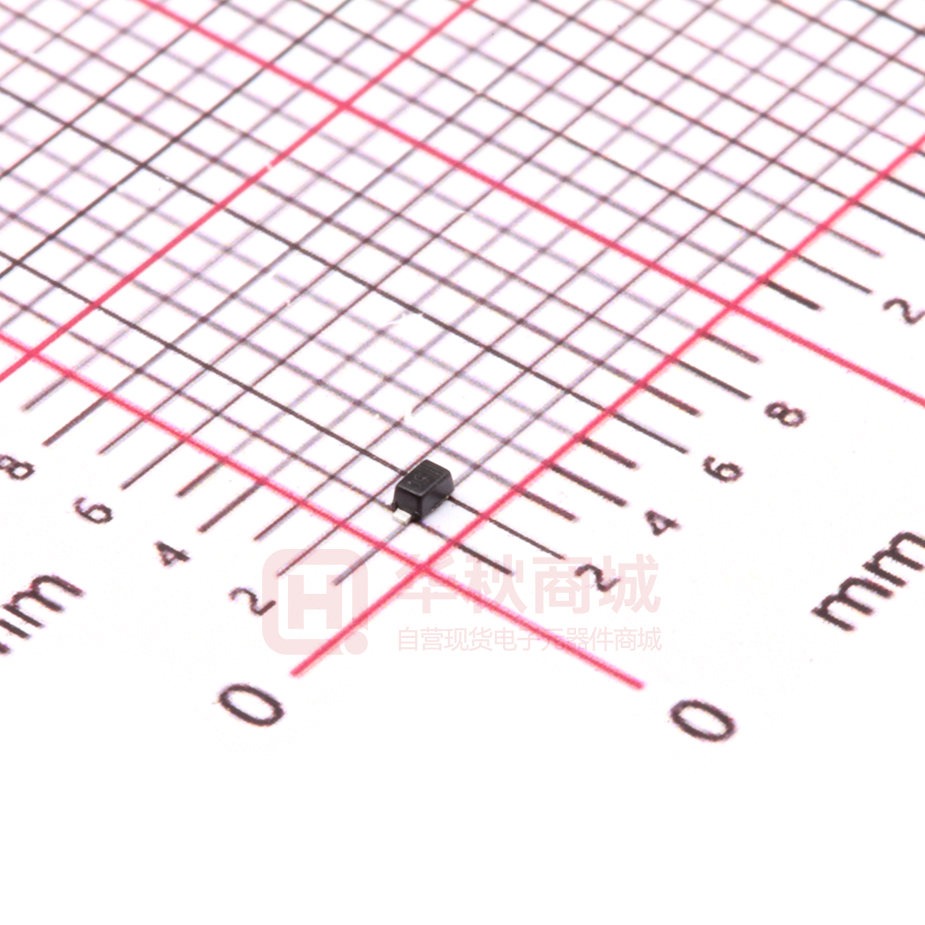

Simplified outline SOD-523 and symbol
●FEATURES
1)Small Body Outline Dimensions
2)Low Body Height
3)Peak Power up to 200 Watts @ 8 x 20 _s Pulse
4)Low Leakage
5)Response Time is Typically < 1 ns
6)ESD Rating of Class 3 (> 16 kV) per Human Body Model
7)IEC61000−4−2 Level 4 ESD Protection
8)IEC61000−4−4 Level 4 EFT Protection
9)We declare that the material of product compliant with
RoHS requirements and Halogen Free.
●DEVICE MARKING AND RESISTOR VALUES
Device
DESD5Z5.0
DESD5Z5.0
Marking
Shipping
5C
3000/Tape&Reel
5C
8000/Tape&Reel
●ABSOLUTE RATINGS(Ta = 25℃)
Parameter
Symbol
Contact
IEC 61000−4−2 (ESD)
Air
IEC 61000 - 4 - 4 (EFT)
ESD Voltage(Per Human Body Model)
PPP
Peak Pulse Power (tp = 8/20μs)
TJ
Maximum Junction Temperature
Tstg
Storage temperature
TOP
Operating Temperature Range
TL
Lead Solder Temperature − Maximum
(10 Second Duration)
Limits
Unit
±8
kV
±15
40
A
16
kV
200
W
150
℃
−55∼+155 ℃
−40∼+125 ℃
260
℃
1 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
Electrical Parameter
Symbol
Parameter
IPP
Maximum Reverse Peak Pulse Current
VC
Clamping Voltage @ IPP
VRWM
Working Peak Reverse Voltage
Maximum Reverse Leakage Current @
VRWM
Test Current
IR
IT
VBR
Breakdown Voltage @ IT
●ELECTRICAL CHARACTERISTICS (Ta= 25℃)
VRWM
(V)
Max
5
Device
DESD5Z5.0
VBR (V)
IR (u A)
@ IT
@VRWM (Note 1) IT
Max Min Max mA
1
5.6 7.8 1
VC (V)
@Ipp = 5 A
Max
11.6
VC (V)
@Max Ipp
Max
18.6
IPP(A)
Max
9.4
PPK(W)
Max
174
C (pF)
Typ
25
1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃.
0.07
100
90
0.06
80
70
0.04
Cj (pF)
IR (uA)
0.05
0.03
60
50
40
0.02
30
0.01
20
0
10
0
25
50
75
100
0
125
2
4
6
8
SAMPLE
T(℃)
Fig 2. Capacitance character
Fig 1. Reverese character
2 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
10
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
SOD-523
3 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
