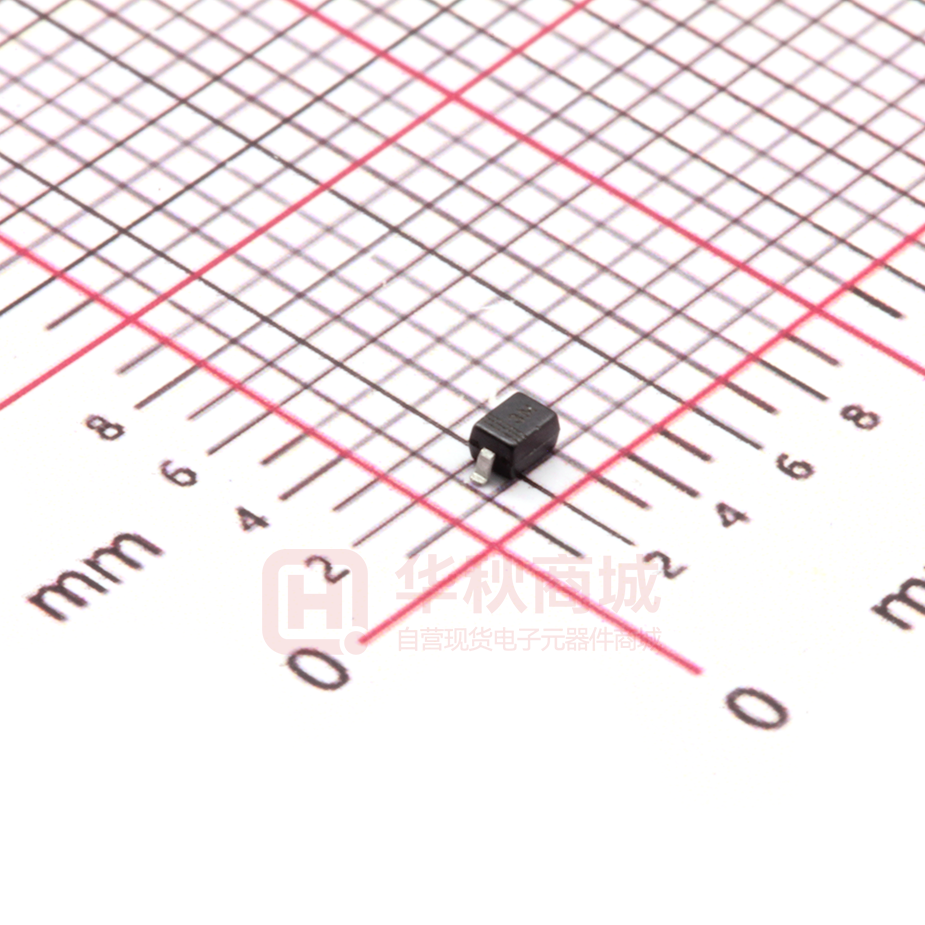

DESD3Z5.0

Transient Voltage Suppressors for ESD Protection PINNING General Description PIN The DESD3Z5.0 is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and Cathode 2 Anode 1 fast response time, make these parts ideal for ESD protection on designs where board space is at a DESCRIPTION 1 3M 2 Top View Marking Code: "3M " Simplified outline SOD-323 and symbol premium. Applications     Cellular phones Portable devices Digital cameras Power supplies  S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. Features    Small Body Outline Dimensions Low Body Height Peak Power up to 200 Watts @ 8 x 20 _s Pulse    Low Leakage current Response Time is Typically < 1 ns ESD Rating of Class 3 (> 16 kV) per Human Body Model   IEC61000−4−2 Level 4 ESD Protection IEC61000−4−4 Level 4 EFT Protection ORDERING INFORMATION Device DESD3Z5.0 Marking 3M Shipping 3000/Tape & Reel Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP Peak Pulse Power (tp = 8/20μs) 200 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +155 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C ±15 ±8 KV IEC61000-4-2 (ESD) air discharge contact discharge IEC61000-4-4 (EFT) ESD Voltage Per Human Body Model 40 A 16 KV 1 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. Electrical Parameter Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM IT Test Current VBR Breakdown Voltage @ IT Fig1. Pulse Waveform Fig2.Power Derating Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA Device DESD3Z5.0 VRWM (V) IR(uA) VBR (V)@ IT VC (V) VC (V) IPP PPK @ VRWM (Note 1) C @ IPP=5 A* @ Max IPP* (A)* (W)* (pF) Max Max Min Max mA Typ Max Max Max Typ 5.0 1 5.6 7.8 11.6 18.6 9.4 174 25 IT 1.0 *Surge current waveform per Figure 1. 1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃． 2 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. DESD3Z5.0 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-323 3 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.
