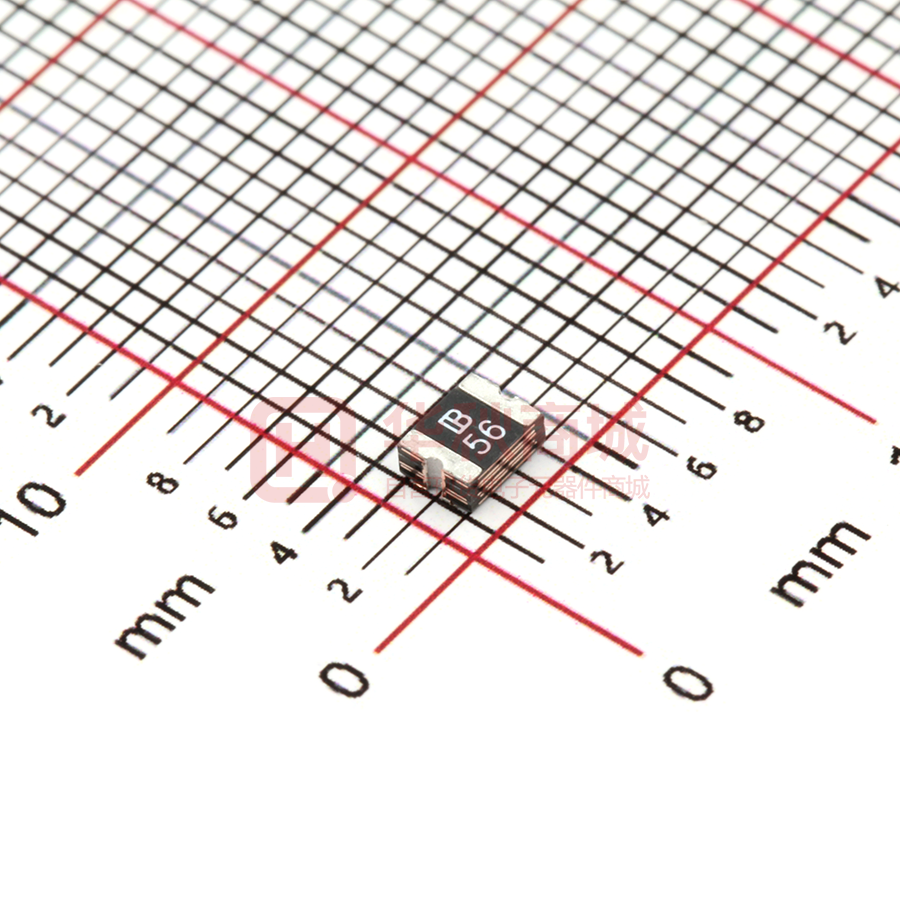

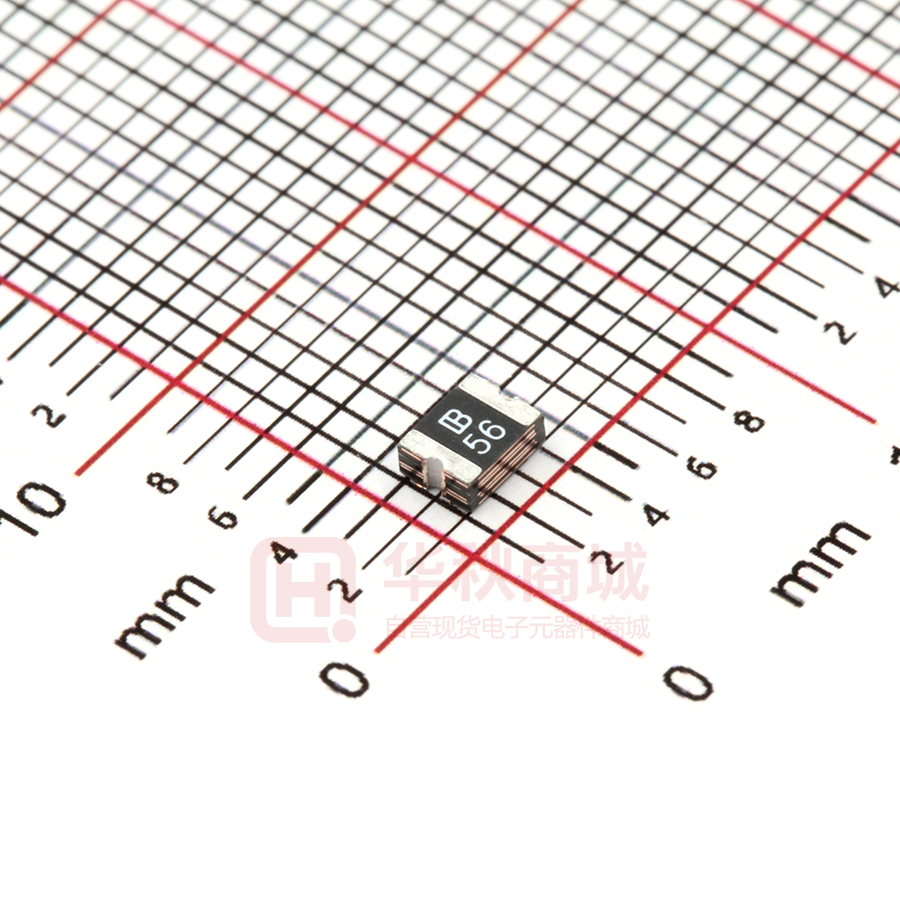

SMD1210B150TF/16

SMD1210 SERIES Positive Temperature Coefficient (PTC) Data Sheet Description The 1210 series provides miniature surface mount resettable overcurrent protection with holding current from 0.05A to 2.0A. This series is suitable for wide range of applications in modern electronics where space is limited. Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ RoHS compliant and lead-free Fast response to fault current Halogen-free UL/CULE482628 RoHS2011/65/EU Low profile Compatible with high temperature solders Compact design saves board space TUV B160696048001 Halogen FreeEN 14582:2007 Applications ■ USB hubs, ports and peripherals ■ Set-top-box and HDMI ■ Game console port protection ■ Motherboard USB & IEEE 1394 protection ■ Optical disk drives ■ General electronics Part Number Code and Marking SMD 1210 B TF T / Special Voltage Rating (Optional) Thickness Version (Optional) Lead-Free Holding Current Rating Delimiter Device Dimensions: Length/Width (Unit: 1/100 inch) Surface Mount Device Part Number Marking Part Number Marking Part Number Marking SMD1210B005TF 005 SMD1210B075TF 07 SMD1210B150TFT 15 SMD1210B010TF 010 SMD1210B075TF/24 075 SMD1210B150TF/12 52 SMD1210B020TF 02 SMD1210B110TFT 10 SMD1210B150TF/16 56 SMD1210B035TF 03 SMD1210B110TF/12 12 SMD1210B175TF 17 SMD1210B050TF 05 SMD1210B110TF/16 16 SMD1210B200TF 20 Revision：PPTC-SMD1210 SERIES-001(A2.1) http://brightking.yageo.com SMD1210 SERIES Dimensions and PAD-SIZE C A BK Logo B Part identification D A E B C D E Part Number Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. SMD1210B005TF 3.00 3.43 2.35 2.80 0.75 1.25 0.25 0.75 0.10 0.50 SMD1210B010TF 3.00 3.43 2.35 2.80 0.75 1.25 0.25 0.75 0.10 0.50 SMD1210B020TF 3.00 3.43 2.35 2.80 0.60 1.10 0.25 0.75 0.10 0.50 SMD1210B035TF 3.00 3.43 2.35 2.80 0.50 1.00 0.25 0.75 0.10 0.50 SMD1210B050TF 3.00 3.43 2.35 2.80 0.50 1.00 0.25 0.75 0.10 0.50 SMD1210B075TF 3.00 3.43 2.35 2.80 0.30 0.80 0.25 0.75 0.10 0.50 SMD1210B075TF/24 3.00 3.43 2.35 2.80 1.10 1.70 0.25 0.75 0.10 0.50 SMD1210B110TFT 3.00 3.43 2.35 2.80 0.30 0.80 0.25 0.75 0.10 0.50 SMD1210B110TF/12 3.00 3.43 2.35 2.80 0.75 1.25 0.25 0.75 0.10 0.50 SMD1210B110TF/16 3.00 3.43 2.35 2.80 0.75 1.25 0.25 0.75 0.10 0.50 SMD1210B150TFT 3.00 3.43 2.35 2.80 0.75 1.25 0.25 0.75 0.10 0.50 SMD1210B150TF/12 3.00 3.43 2.35 2.80 0.90 1.70 0.25 0.75 0.10 0.50 SMD1210B150TF/16 3.00 3.43 2.35 2.80 0.90 1.70 0.25 0.75 0.10 0.50 SMD1210B175TF 3.00 3.43 2.35 2.80 0.60 1.40 0.25 0.75 0.10 0.50 SMD1210B200TF 3.00 3.43 2.35 2.80 0.85 1.65 0.25 0.75 0.10 0.50 Recommended Pad Layout (mm) 2.50typ. 2.00typ. 1.00typ. 1.00typ. Electrical Characteristics Part Number Ihold (A) Itrip (A) Vmax (Vdc) Imax (A) Pd typ. (W) SMD1210B005TF 0.05 0.15 30.0 10 SMD1210B010TF 0.10 0.30 30.0 SMD1210B020TF 0.20 0.40 SMD1210B035TF 0.35 SMD1210B050TF SMD1210B075TF Maximum Time To Trip Resistance Time (Sec.) Current (A) Rmin (Ω) R1max (Ω) 0.60 1.50 0.25 3.60 50.0 10 0.60 1.50 0.50 1.60 15.0 30.0 10 0.60 0.02 8.00 0.80 5.00 0.70 6.0 100 0.60 0.20 8.00 0.32 1.30 0.50 1.00 13.2 100 0.60 0.05 8.00 0.25 0.90 0.75 1.50 6.0 100 0.60 0.10 8.00 0.07 0.40 Revision：PPTC-SMD1210 SERIES-001(A2.1) http://brightking.yageo.com SMD1210 SERIES Part Number Ihold (A) Itrip (A) Vmax (Vdc) Imax (A) Pd typ. (W) SMD1210B075TF/24 0.75 1.50 24 100 SMD1210B110TFT 1.10 2.20 8 SMD1210B110TF/12 1.10 2.20 SMD1210B110TF/16 1.10 SMD1210B150TFT Maximum Time To Trip Resistance Time (Sec.) Current (A) Rmin (Ω) R1max (Ω) 0.6 0.1 8.0 0.070 0.400 100 0.6 0.3 8.0 0.050 0.210 12 100 0.6 0.3 8.0 0.050 0.210 2.20 16 100 0.6 0.3 8.0 0.050 0.210 1.50 3.00 6 100 0.8 0.3 8.0 0.030 0.120 SMD1210B150TF/12 1.50 3.00 12 100 0.8 0.3 8.0 0.030 0.120 SMD1210B150TF/16 1.50 3.00 16 100 0.8 0.3 8.0 0.030 0.120 SMD1210B175TF 1.75 3.50 6 100 0.8 1.0 8.0 0.020 0.080 SMD1210B200TF 2.00 4.00 6 100 0.8 1.0 8.0 0.015 0.075 Note on Electrical Characteristics ■ Vocabulary ·Ihold = Hold current: maximum current device will pass without tripping in 23℃ still air. ·Itrip = Trip current: minimum current at which the device will trip in 23℃ still air. ·Vmax = Maximum voltage device can withstand without damage at rated current (Imax) ·Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax) ·Pd typ. = Typical power dissipated from device when in the tripped state at 23℃ still air. ·Rmin = Minimum resistance of device in initial (un-soldered) state. ·R1max = Maximum resistance of device at 23℃ measured one hour after tripping or reflow soldering of 260℃ for 20 sec. ■ Value specified is determined by using the PWB with 0.090”*1.5oz copper traces. ■ Caution: Operation beyond the specified rating may result in damage and possible arcing and flame. Revision：PPTC-SMD1210 SERIES-001(A2.1) http://brightking.yageo.com SMD1210 SERIES Polymeric PTC Selecting Guide ■ Determine the following operating parameters for the circuits: ·Normal operating current (Ihold) ·Maximum interrupt current (Imax) ·Maximum circuit voltage (Vmax) ·Normal operating temperature surrounding device (min℃/max℃) ■ Select the device from factor and dimension suitable for the application ■ Compare the maximum rating for Vmax and Imax of the PPTC device with the circuit in application and make sure the circuit’s requirement does not exceed the device rating. ■ Check that PPTC device’s trip time (time-to-trip) will protect the circuit. ■ Verify that the circuit operating temperature is within the PPTC device’s normal operating temperature range. ■ Verify that performance and suitability of the chosen PPTC device in the application. ! WARNING ■ Mechanical Stress ·PPTC devices will undergo a thermal expansion during fault condition. If PPTC devices are installed or placed in an application where the space between PPTC devices and the surrounding materials (e.g., covering materials, packaging materials, encapsulate materials and the like) is insufficient, it will cause an inhibiting effect upon the thermal expansion. Pressing, twisting, bending and other kinds of mechanical stress will also adversely affect the performance of the PPTC devices, and shall not be used or applied. ■ Chemical Pollutants ·Silicone-based oils, oils, solvents, gels, electrolytes, fuels, acids, and the like will adversely affect the properties of PPTC devices, and shall not be used or applied. ■ Electronic and Thermal Effect ·PPTC devices are secondary protection devices and are used solely for sporadic, accidental over-current or over-temperature error condition, and shall NOT be used if or when constant or repeated fault conditions (such fault conditions may be caused by, among others, incorrect pin-connection of a connector) or over-extensive trip events may occur. ·PPTC devices are different from fuses and, when a fault condition occurs, will go into high-resistance state and do not open circuit, in which case the voltage at such PPTC devices may reach a hazardous level. ·Operation over the maximum rating or other forms of improper use may cause failure, arcing, flame and/or other damage to the PPTC devices. ·Conductive material contamination, such as metal particle, may induce shortage, flame or arcing. ·Due to the inductance, the operation circuits may generate a circuit voltage (Ldi/dt) above the rated voltage of PPTC devices, which shall not be used under such circumstances. ■ General ·Customers shall evaluate and test the properties of PPTC devices independently to verify and ensure that their individual applications will be met. ·The performance of PPTC devices will be adversely affected if they are improperly used under electronic, thermal and/or mechanical procedures and/or conditions non-conformant to those recommended by manufacturer. ·Customers shall be responsible for determining whether it is necessary to have back-up, failsafe and/or fool-proof protection To avoid or minimize damage that may result from extra-ordinary, irregular function or failure of PPTC devices. ·Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with. Revision：PPTC-SMD1210 SERIES-001(A2.1) http://brightking.yageo.com SMD1210 SERIES Thermal Derating Curve Percentage of Rated Current 200.00 150.00 100.00 50.00 0.00 -40.00 0.00 40.00 80.00 120.00 Device Ambient Temperature (℃) Thermal Derating Chart Recommended Hold Current (A) at Ambient Temperature (℃) Ambient Operation Temperature Part Number -40℃ -20℃ 0℃ 23℃ 40℃ 50℃ 60℃ 70℃ 85℃ SMD1210B005TF 0.08 0.07 0.06 0.05 0.04 0.04 0.03 0.03 0.02 SMD1210B010TF 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.05 SMD1210B020TF 0.29 0.26 0.22 0.20 0.16 0.14 0.13 0.11 0.08 SMD1210B035TF 0.47 0.45 0.40 0.35 0.33 0.28 0.24 0.21 0.18 SMD1210B050TF 0.76 0.67 0.58 0.50 0.43 0.40 0.36 0.32 0.28 SMD1210B075TF 1.00 0.97 0.86 0.75 0.64 0.59 0.54 0.48 0.40 SMD1210B075TF/24 1.00 0.97 0.86 0.75 0.64 0.59 0.54 0.48 0.40 SMD1210B110TFT 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58 SMD1210B110TF/12 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58 SMD1210B110TF/16 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58 SMD1210B150TFT 2.30 2.02 1.76 1.50 1.24 1.11 1.00 0.85 0.65 SMD1210B150TF/12 2.30 2.02 1.76 1.50 1.24 1.11 1.00 0.85 0.65 SMD1210B150TF/16 2.30 2.02 1.76 1.50 1.24 1.11 1.00 0.85 0.65 SMD1210B175TF 2.45 2.22 2.01 1.75 1.45 1.26 1.10 0.98 0.80 SMD1210B200TF 2.60 2.44 2.35 2.00 1.78 1.67 1.50 1.45 1.10 Revision：PPTC-SMD1210 SERIES-001(A2.1) http://brightking.yageo.com SMD1210 SERIES Average Time-Current Curve A 100 B C DE F GH IJ A-SMD1210B005TF B-SMD1210B010TF C-SMD1210B020TF D-SMD1210B035TF E-SMD1210B050TF F-SMD1210B075TF SMD1210B075TF/24 G-SMD1210B110TFT SMD1210B110TF/12 SMD1210B110TF/16 Time to Trip (s) 10 1 H-SMD1210B150TFT SMD1210B150TF/12 0.1 SMD1210B150TF/16 I-SMD1210B175TF J-SMD1210B200TF 0.01 1 Fault Current (A) 0.1 10 Soldering Parameters Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Profile Feature Pb-Free Assembly Average ramp-up rate (TS max to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (TS min to TS max) 150℃ 200℃ 60-180 seconds Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Revision：PPTC-SMD1210 SERIES-001(A2.1) 20-40 seconds http://brightking.yageo.com SMD1210 SERIES Profile Feature Pb-Free Assembly Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature 8 minutes max. 0℃~35℃, ≤70%RH Storage Condition ·Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free ·Recommended maximum paste thickness is 0.25mm (0.010 inch) ·Device can be cleaned using standard industry methods and solvents. Note 1: All temperature refer to topside of the package, measured on the package body surface. Note 2: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. Environmental Specifications Operating / Storage temperature -40℃ to +85℃ Maximum Device Surface Temperature in Tripped State 125℃ Passive Aging +85℃, 1000 hours ±50% typical resistance change Humidity Aging +85℃, 85%RH, 1000 hours ±50% typical resistance change Thermal Shock MIL-STD-202, Method 107G +85℃/-40℃ 20 times -50% typical resistance change Solvent Resistance MIL-STD-202, Method 215 No change Vibration MIL-STD-883C, Method 2007.1, Condition A No change Moisture Level Sensitivity Level 1, J-STD-020C Physical Specifications Terminal Material Solder-Plated Copper (Solder Material: Matte Tin (Sn)) Terminal Solderability Meets EIA Specification RS186-9E, ANSI/J-STD-002 Category 3. Revision：PPTC-SMD1210 SERIES-001(A2.1) http://brightking.yageo.com SMD1210 SERIES Packaging Part Number Quantity Part Number Quantity Part Number Quantity SMD1210B005TF 3000 SMD1210B075TF 4000 SMD1210B150TFT 3000 SMD1210B010TF 3000 SMD1210B075TF/24 2000 SMD1210B150TF/12 2000 SMD1210B020TF 4000 SMD1210B110TFT 4000 SMD1210B150TF/16 2000 SMD1210B035TF 4000 SMD1210B110TF/12 3000 SMD1210B175TF 3000 SMD1210B050TF 4000 SMD1210B110TF/16 3000 SMD1210B200TF 2000 ◎ 8mm tape on 7 inch reel per EIA-481 (equivalent to IEC286, part 3) Tape Dimensions (mm) B020TF B035TF B050TF B075TF B110TFT B150TFT B005TF B010TF B110TF/12 B110TF/16 B175TF B075TF/24 W 8.00±0.30 8.00±0.30 8.00+0.30/-0.10 F 3.50±0.05 3.50±0.05 3.50±0.05 E 1.75±0.10 1.75±0.10 1.75±0.10 D0 1.55±0.05 1.55±0.05 1.55±0.05 D1 1.00(MIN) 1.00(MIN) 1.00+0.25/-0 P0 4.00±0.10 4.00±0.10 4.00±0.10 P1 4.00±0.10 4.00±0.10 4.00±0.10 P2 2.00±0.05 2.00±0.05 2.00±0.05 A0 2.82±0.10 2.82±0.10 2.82±0.10 B0 3.46±0.10 3.50±0.10 3.50±0.10 T 0.25±0.10 0.20±0.10 0.25±0.10 K0 1.00±0.10 1.30±0.10 1.80±0.10 Leader min. 390 390 390 Trailer min. 160 160 160 Symbol P0 D0 T E P2 B0 W F P1 D1 K0 A0 Reel Revision：PPTC-SMD1210 SERIES-001(A2.1) C Φ178.0±1.0 D Φ60.2±0.5 H 11.0±0.5 W 9.0±1.5 B150TF/12 B150TF/16 B200TF http://brightking.yageo.com
