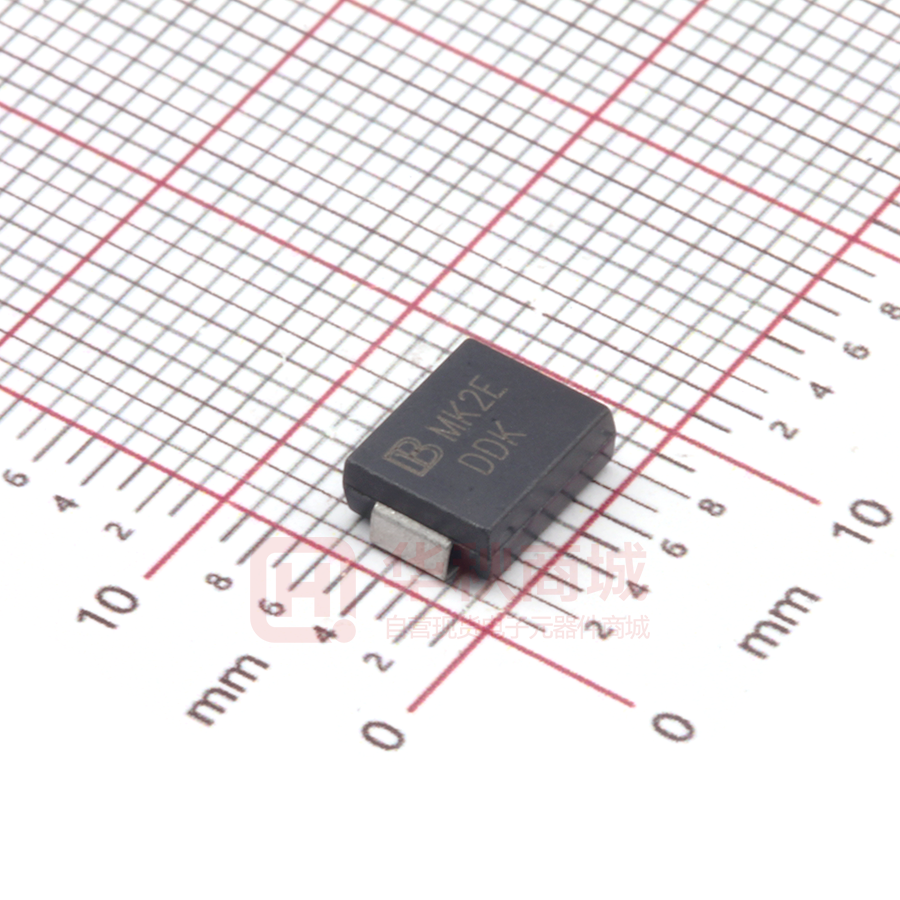

SMDJ6.5CA

SMDJ SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ For surface mounted applications in order to optimize board space Low profile package Built-in strain relief Glass passivated junction Low inductance Excellent clamping capability 3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Fast response time Typical IR less than 1μA above 10V High Temperature soldering: 260℃/10 seconds at terminals Plastic package has underwriters laboratory flammability 94V-0 Meets MSL level 1, per J-STD-020 Safety certification: UL: E244458 IEC61000-4-2 ESD 30KV Air, 30KV contact compliance Mechanical Data ■ ■ ■ ■ ■ Case: JEDEC DO-214AB. Molded plastic over glass passivated junction Terminal: Tin plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Standard Packaging: 16mm tape (EIA STD RS-481) Weight: 0.28g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Note2, Fig.1) PPPM Minimum 3000 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 6.5 Watts IFSM 300 Amps TJ,TSTG -55 to +150 ℃ Typical thermal resistance junction to lead RθJL 15 ℃/W Typical thermal resistance junction to ambient RθJA 75 ℃/W Steady state power dissipation at TA=50℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note3, Fig.6) Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. Mounted on 8.0mm×8.0mm copper pads to each terminal. 3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision:TVS-SMDJ SERIES-001(A2) 1/7 http://brightking.yageo.com SMDJ SERIES Dimensions (SMC/DO-214AB) Millimeters Inches Symbol Cathode Band D1 D Min. Max. Min. Max. L 6.60 7.11 0.260 0.280 D 5.59 6.22 0.220 0.245 D1 2.90 3.20 0.114 0.126 T 7.75 8.13 0.305 0.320 T1 0.76 1.52 0.030 0.060 d - 0.203 - 0.008 H 2.20 2.80 0.087 0.110 H1 2.06 2.62 0.079 0.103 L H1 H d T1 T Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) SMDJ5.0A SMDJ5.0CA RDE DDE 5.0 6.40~7.00 10 9.2 326.1 800 SMDJ6.0A SMDJ6.0CA RDG DDG 6.0 6.67~7.37 10 10.3 291.3 800 SMDJ6.5A SMDJ6.5CA RDK DDK 6.5 7.22~7.98 10 11.2 267.9 500 SMDJ7.0A SMDJ7.0CA PDM DDM 7.0 7.78~8.60 10 12.0 250.0 200 SMDJ7.5A SMDJ7.5CA PDP DDP 7.5 8.33~9.21 1 12.9 232.6 100 SMDJ8.0A SMDJ8.0CA PDR DDR 8.0 8.89~9.83 1 13.6 220.6 50 SMDJ8.5A SMDJ8.5CA PDT DDT 8.5 9.44~10.40 1 14.4 208.3 20 SMDJ9.0A SMDJ9.0CA PDV DDV 9.0 10.00~11.10 1 15.4 194.8 10 SMDJ10A SMDJ10CA PDX DDX 10.0 11.10~12.30 1 17.0 176.5 5 SMDJ11A SMDJ11CA PDZ DDZ 11.0 12.20~13.50 1 18.2 164.8 2 SMDJ12A SMDJ12CA PEE DEE 12.0 13.30~14.70 1 19.9 150.8 2 SMDJ13A SMDJ13CA PEG DEG 13.0 14.40~15.90 1 21.5 139.5 2 SMDJ14A SMDJ14CA PEK DEK 14.0 15.60~17.20 1 23.2 129.3 2 SMDJ15A SMDJ15CA PEM DEM 15.0 16.70~18.50 1 24.4 123.0 2 SMDJ16A SMDJ16CA PEP DEP 16.0 17.80~19.70 1 26.0 115.4 2 SMDJ17A SMDJ17CA PER DER 17.0 18.90~20.90 1 27.6 108.7 2 SMDJ18A SMDJ18CA PET DET 18.0 20.00~22.10 1 29.2 102.7 2 SMDJ20A SMDJ20CA PEV DEV 20.0 22.20~24.50 1 32.4 92.6 2 Revision:TVS-SMDJ SERIES-001(A2) 2/7 http://brightking.yageo.com SMDJ SERIES Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) SMDJ22A SMDJ22CA PEX DEX 22.0 24.40~26.90 1 35.5 84.5 2 SMDJ24A SMDJ24CA PEZ DEZ 24.0 26.70~29.50 1 38.9 77.1 2 SMDJ26A SMDJ26CA PFE DFE 26.0 28.90~31.90 1 42.1 71.3 2 SMDJ28A SMDJ28CA PFG DFG 28.0 31.10~34.40 1 45.4 66.1 2 SMDJ30A SMDJ30CA PFK DFK 30.0 33.30~36.80 1 48.4 62.0 2 SMDJ33A SMDJ33CA PFM DFM 33.0 36.70~40.60 1 53.3 56.3 2 SMDJ36A SMDJ36CA PFP DFP 36.0 40.00~44.20 1 58.1 51.6 2 SMDJ40A SMDJ40CA PFR DFR 40.0 44.40~49.10 1 64.5 46.5 2 SMDJ43A SMDJ43CA PFT DFT 43.0 47.80~52.80 1 69.4 43.2 2 SMDJ45A SMDJ45CA PFV DFV 45.0 50.00~55.30 1 72.7 41.3 2 SMDJ48A SMDJ48CA PFX DFX 48.0 53.30~58.90 1 77.4 38.8 2 SMDJ51A SMDJ51CA PFZ DFZ 51.0 56.70~62.70 1 82.4 36.4 2 SMDJ54A SMDJ54CA PGE DGE 54.0 60.00~66.30 1 87.1 34.4 2 SMDJ58A SMDJ58CA PGG DGG 58.0 64.40~71.20 1 93.6 32.1 2 SMDJ60A SMDJ60CA PGK DGK 60.0 66.70~73.70 1 96.8 31.0 2 SMDJ64A SMDJ64CA PGM DGM 64.0 71.10~78.60 1 103.0 29.1 2 SMDJ70A SMDJ70CA PGP DGP 70.0 77.80~86.00 1 113.0 26.5 2 SMDJ75A SMDJ75CA PGR DGR 75.0 83.30~92.10 1 121.0 24.8 2 SMDJ78A SMDJ78CA PGT DGT 78.0 86.70~95.80 1 126.0 23.8 2 SMDJ85A SMDJ85CA PGV DGV 85.0 94.40~104.00 1 137.0 21.9 2 SMDJ90A SMDJ90CA PGX DGX 90.0 100.00~111.00 1 146.0 20.5 2 SMDJ100A SMDJ100CA PGZ DGZ 100.0 111.00~123.00 1 162.0 18.5 2 SMDJ110A SMDJ110CA PHE DHE 110.0 122.00~135.00 1 177.0 16.9 2 SMDJ120A SMDJ120CA PHG DHG 120.0 133.00~147.00 1 193.0 15.5 2 SMDJ130A SMDJ130CA PHK DHK 130.0 144.00~159.00 1 209.0 14.4 2 SMDJ150A SMDJ150CA PHM DHM 150.0 167.00~185.00 1 243.0 12.3 2 SMDJ160A SMDJ160CA PHP DHP 160.0 178.00~197.00 1 259.0 11.6 2 SMDJ170A SMDJ170CA PHR DHR 170.0 189.00~209.00 1 275.0 10.9 2 SMDJ180A SMDJ180CA HHT IHT 180.0 201.00~222.00 1 292.0 10.3 2 SMDJ190A SMDJ190CA HHV IHV 190.0 211.00~233.00 1 308.0 9.7 2 SMDJ200A SMDJ200CA HHX IHX 200.0 224.00~247.00 1 324.0 9.3 2 SMDJ210A SMDJ210CA HHZ IHZ 210.0 237.00~263.00 1 340.0 8.8 2 SMDJ220A SMDJ220CA HIE IIE 220.0 246.00~272.00 1 356.0 8.4 2 Revision:TVS-SMDJ SERIES-001(A2) 3/7 http://brightking.yageo.com SMDJ SERIES Ratings and Characteristic Curves (T A=25℃ unless otherwise noted) Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % PPPM - Peak Pulse Power (kW) 1000 100 10 1 0.31×0.31″(8.0×8.0mm) Copper Pad Area 0.1 0.1 1 100 10 100 80 60 40 20 0 1000 0 td-Pulse Width (µs) 75 100 125 150 175 Figure 4. Typical Junction Capacitance 150 100000 TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM tr=10µs Uni-directional 10000 Peak Value IPPM 100 Cj (pF) IPPM - Peak Pulse Current, %IRSM 50 TA-Ambient Temperature (℃) Figure 3. Pulse Waveform Half Value IPPM (IPPM/2) 1000 Bi-directional 100 50 10/1000µs Waveform as defined by R.E.A 10 td 0 0 1 1.0 2.0 3.0 4.0 Measured at 1MHz, 100mV, 0V bias 1 t-Time (ms) Figure 5. Steady State Power Dissipation Derating IFSM - Peak Forward Surve Current (A) 6 5 4 3 2 1 0 25 1000 Surge Current Uni-Directional Only 7 0 10 100 VRWM-Reverse Stand-Off Voltage (V) Figure 6. Maximum Non-Repetitive Forward Curve PM(AV), Steady State Power Dissipation (W) 25 50 75 100 125 150 175 TA-Ambient Temperature (℃) Revision:TVS-SMDJ SERIES-001(A2) 4/7 350 300 250 200 150 100 50 0 1 10 Number of Cycles at 60Hz 100 http://brightking.yageo.com SMDJ SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:TVS-SMDJ SERIES-001(A2) 20-40 seconds 8 minutes max. 5/7 http://brightking.yageo.com SMDJ SERIES Marking Code Cathode Band YXXX YXXX RDE Logo DDE Intermal Control Code Logo Marking Code Intermal Control Code Marking Code Part Number Code SMDJ XXX C A / XXXX Package Code TR7:7 inch reel package TR13:13 inch reel package 5% VBR Voltage Tolerance Bidirectional VRWM Voltage Series Code Ordering Code for Different Package 7 inch reel package: Add suffix “ /TR7” at the end of the part number, such as SMDJXXXCA/TR7 13 inch reel package: Add suffix “ /TR13” at the end of the part number, such as SMDJXXXCA/TR13 Revision:TVS-SMDJ SERIES-001(A2) 6/7 http://brightking.yageo.com SMDJ SERIES Packaging Tape P0 P1 P2 D0 B T E F W B0 D1 A A B K0 SECTION B-B A0 SECTION A-A 7” Reel Symbol Dimension (mm) W 16.00±0.20 P0 4.00±0.10 P1 8.00±0.10 P2 2.00±0.10 D0 Φ1.5±0.10 D1 Φ1.5±0.10 E 1.75±0.10 F 7.50±0.10 A0 6.27±0.10 B0 8.30±0.10 K0 3.15±0.15 T 0.30±0.05 D2 Φ178.0±2.0 D3 Φ50.0Min. D4 Φ13.0±0.5 W1 20.0±2.0 D4 D3 D2 W1 Quantity: 500PCS 13” Reel D5 Φ330.0±2.0 D6 Φ13.5±0.5 H 2.5±1.0 W2 20.0±2.0 Quantity: 3000PCS Revision:TVS-SMDJ SERIES-001(A2) 7/7 http://brightking.yageo.com
