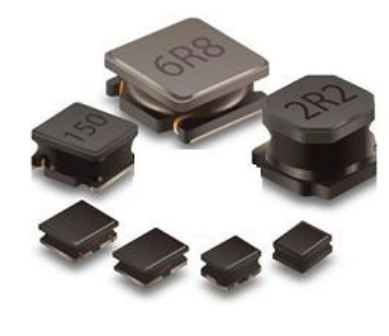

VENR6045-100M

Wire Wound SMD Power Inductors—VENR Series Applications: ●Smart phone, smart TV, set top box, notebook. ●Car navigation systems, telecomm base stations. ●VR, AR. ●LED lighting. Features : ●Magnetic-resin shielded construction reduces buzz noise to ultra-low levels. ●Metallization on ferrite core results in excellent shock resistance and damage-free durability. ●Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI). ●30% higher current rating than conventional inductors of equal size. ●Takes up less PCB real estate and save more power. Product Identification : VENR 4030–100 M (1) (2) (3) (4) (1) Product symbol. (2)Dimensions code. (3)Inductance: “100”for 10uH. (4)Tolerance: K:±10%；M:±20%；N:±30%. Dimensions in (mm) Item A B C D E F a Typ. b Typ. c Typ. VENR2510 2.5±0.1 2.0±0.1 1.0Max. 2.0±0.2 0.80±0.2 0.80±0.2 0.80 0.85 2.0 VENR2512 2.5±0.1 2.0±0.1 1.2Max. 2.0±0.2 0.80±0.2 0.80±0.2 0.80 0.85 2.0 Item A B C D E F a Typ. b Typ. c Typ. VENR3010 3.0±0.2 3.0±0.2 1.0Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 VENR3012 3.0±0.2 3.0±0.2 1.2Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 VENR3015 3.0±0.2 3.0±0.2 1.5Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 VENR4012 4.0±0.2 4.0±0.2 1.2Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 VENR4018 4.0±0.2 4.0±0.2 1.8Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 VENR4020 4.0±0.2 4.0±0.2 2.0Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 VENR4030 4.0±0.2 4.0±0.2 3.0Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 Dimensions in (mm) Item A B C D E F a Typ. b Typ. c Typ. VENR5012 5.0±0.2 5.0±0.2 1.2Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 VENR5020 5.0±0.2 5.0±0.2 2.0Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 VENR5040 5.0±0.2 5.0±0.2 4.0Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 VENR6020 6.0±0.3 6.0±0.3 2.0Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 VENR6028 6.0±0.3 6.0±0.3 2.8Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 VENR6045 6.0±0.3 6.0±0.3 4.5Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 VENR8040 8.0±0.3 8.0±0.3 4.2Max. 6.3±0.3 2.00±0.3 4.0±0.3 3.8 2.2 7.5 Characteristics : ●Saturation Current(Isat):The current when the inductance Becomes 30% lower than is initial value.(Ta=20℃). ●Temperature Rise Current(Irms):The current when the temperature of coil increases up to max.Δ T=40℃.(Ta=20℃) ●Operating temperature : -40℃～+125℃. ●Storage temperature range (packaging conditions): -5℃～+30℃ and RH 70% (Max.) Test equipments : ●L&Q: HP 4285A or WK3260B, VR116/VR7210. ●DCR: Milli-ohm meter, VR131. ●Electrical specifications at 25℃. ●Rated current: Isat or Irms, whichever is smaller. ●Isat: DC current at which the inductance drops approximate 30% from its value without current. ●Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient. Electrical Characteristics VENR2510 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR2510-R47N 0.47±30% 206 0.056 0.047 2.50 3.35 2.35 2.56 / VENR2510-R56N 0.56±30% 160 0.072 0.060 2.90 3.20 2.00 2.18 / VENR2510-R68N 0.68±30% 129 0.074 0.062 2.20 2.75 2.00 2.18 / VENR2510-1R0N 1.0±30% 100 0.108 0.090 1.85 2.20 1.65 1.80 / VENR2510-1R5N 1.5±30% 81 0.182 0.152 1.80 2.10 1.30 1.42 / VENR2510-2R2N 2.2±30% 61 0.209 0.174 1.20 1.60 1.20 1.31 / VENR2510-3R3M 3.3±20% 47 0.328 0.273 1.05 1.30 0.90 0.98 / VENR2510-4R7M 4.7±20% 42 0.563 0.469 0.95 1.15 0.70 0.76 / VENR2510-5R6M 5.6±20% 35 0.563 0.469 0.80 0.95 0.73 0.80 / VENR2510-6R8M 6.8±20% 31 0.896 0.747 0.78 0.92 0.59 0.64 / VENR2510-100M 10±20% 27 1.092 0.910 0.3 0.3 0.3 0.3 / Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR2512 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR2512-R47N 0.47±30% 160 0.061 0.047 3.82 4.27 2.15 2.34 / VENR2512-R68N 0.68±30% 140 0.074 0.057 3.28 3.68 1.95 2.13 / VENR2512-1R0N 1.0±30% 110 0.090 0.069 2.59 2.90 1.93 2.10 / VENR2512-1R2N 1.2±30% 100 0.129 0.099 2.38 2.67 1.46 1.59 / VENR2512-1R5N 1.5±30% 97 0.147 0.113 2.24 2.51 1.40 1.53 / VENR2512-2R2N 2.2±30% 69 0.216 0.166 1.85 2.07 1.15 1.25 / VENR2512-2R7M 2.7±20% 63 0.239 0.184 1.72 1.92 1.09 1.19 / VENR2512-3R3M 3.3±20% 62 0.264 0.203 1.61 1.80 1.04 1.13 / VENR2512-3R6M 3.6±20% 53 0.348 0.268 1.46 1.64 0.90 0.98 / VENR2512-4R3M 4.3±20% 51 0.377 0.290 1.37 1.53 0.87 0.95 / VENR2512-4R7M 4.7±20% 47 0.377 0.290 1.12 1.25 0.84 0.92 / VENR2512-5R1M 5.1±20% 44 0.500 0.385 1.23 1.37 0.75 0.82 / VENR2512-5R6M 5.6±20% 38 0.538 0.414 1.11 1.25 0.73 0.80 / VENR2512-6R2M 6.2±20% 38 0.542 0.417 1.03 1.16 0.73 0.80 / VENR2512-6R8M 6.8±20% 38 0.581 0.447 0.98 1.09 0.69 0.75 / VENR2512-7R5M 7.5±20% 36 0.611 0.470 0.97 1.09 0.68 0.74 / VENR2512-8R2M 8.2±20% 35 0.658 0.506 0.98 1.10 0.65 0.71 / VENR2512-9R1M 9.1±20% 34 0.690 0.531 0.91 1.02 0.62 0.68 / VENR2512-100M 10±20% 34 0.690 0.531 0.79 0.88 0.62 0.68 / VENR2512-120M 12±20% 28 1.075 0.827 0.78 0.88 0.51 0.56 / VENR2512-150M 15±20% 25 1.591 1.224 0.68 0.77 0.42 0.46 / VENR2512-220M 22±20% 20 1.976 1.520 0.53 0.59 0.38 0.41 / Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR3010 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR3010-1R0N 1.0±30% 180 0.085 0.065 1.40 2.10 1.45 1.80 1R0 VENR3010-1R2N 1.2±30% 137 0.085 0.065 1.25 1.70 1.45 1.80 1R2 VENR3010-1R5N 1.5±30% 120 0.104 0.080 1.27 1.70 1.30 1.60 1R5 VENR3010-2R2N 2.2±30% 100 0.143 0.110 1.15 1.50 1.09 1.40 2R2 VENR3010-2R7N 2.7±30% 90 0.169 0.130 1.00 1.20 1.02 1.40 2R7 VENR3010-3R6M 3.6±20% 67 0.215 0.165 0.95 1.20 0.90 1.10 3R6 VENR3010-4R7M 4.7±20% 59 0.293 0.225 0.75 1.05 0.77 1.10 4R7 VENR3010-5R6M 5.6±20% 40 0.322 0.248 0.58 0.65 0.70 1.05 5R6 VENR3010-6R8M 6.8±20% 42 0.397 0.305 0.55 0.72 0.66 0.96 6R8 VENR3010-8R2M 8.2±20% 23 0.520 0.40 0.55 0.70 0.58 0.70 8R2 VENR3010-100M 10±20% 39 0.520 0.40 0.55 0.75 0.58 0.70 100 VENR3010-120M 12±20% 36 0.657 0.505 0.43 0.65 0.52 0.67 120 VENR3010-150M 15±20% 30 0.793 0.610 0.42 0.57 0.47 0.57 150 VENR3010-220M 22±20% 28 1.209 0.930 0.35 0.48 0.38 0.52 220 VENR3010-270M 27±20% 25 1.404 1.080 0.30 0.45 0.35 0.50 270 VENR3010-330M 33±20% 18 2.015 1.550 0.29 0.42 0.30 0.55 330 VENR3010-390M 39±20% 18 2.275 1.750 0.28 0.38 0.28 0.53 390 VENR3010-430M 43±20% 18 2.340 1.80 0.23 0.36 0.27 0.52 430 VENR3010-470M 47±20% 18 2.535 1.950 0.22 0.35 0.26 0.52 470 VENR3010-510M 51±20% 18 2.860 2.20 0.21 0.33 0.25 0.48 510 VENR3010-560M 56±20% 16 3.016 2.320 0.21 0.28 0.24 0.35 560 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR3012 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR3012-R22N 0.22±30% 321 0.022 0.017 5.30 6.00 3.00 3.30 R22 VENR3012-1R0N 1.0±30% 120 0.052 0.040 1.87 2.80 2.20 2.70 1R0 VENR3012-1R2N 1.2±30% 120 0.059 0.045 2.22 2.50 2.01 2.20 1R2 VENR3012-1R5N 1.5±30% 110 0.059 0.045 1.62 1.90 2.01 2.20 1R5 VENR3012-1R8N 1.8±30% 90 0.082 0.063 1.30 1.90 1.65 1.80 1R8 VENR3012-2R2N 2.2±30% 84 0.098 0.075 1.20 1.90 1.55 1.70 2R2 VENR3012-2R7N 2.7±30% 65 0.110 0.085 1.14 1.50 1.48 1.50 2R7 VENR3012-3R3M 3.3±20% 64 0.130 0.10 1.05 1.50 1.36 1.40 3R3 VENR3012-3R9M 3.9±20% 61 0.189 0.145 1.00 1.30 1.24 1.30 3R9 VENR3012-4R7M 4.7±20% 61 0.156 0.120 0.90 1.00 1.24 1.30 4R7 VENR3012-5R6M 5.6±20% 61 0.226 0.174 0.80 1.10 1.13 1.24 5R6 VENR3012-6R8M 6.8±20% 61 0.247 0.190 0.75 0.90 0.98 1.10 6R8 VENR3012-100M 10±20% 42 0.345 0.265 0.60 0.88 0.83 0.90 100 VENR3012-120M 12±20% 32 0.449 0.345 0.48 0.67 0.73 0.84 120 VENR3012-150M 15±20% 27 0.468 0.360 0.45 0.62 0.71 0.77 150 VENR3012-180M 18±20% 25 0.709 0.545 0.43 0.59 0.58 0.65 180 VENR3012-220M 22±20% 23 0.839 0.645 0.42 0.52 0.53 0.59 220 VENR3012-270M 27±20% 21 1.131 0.870 0.35 0.48 0.47 0.51 270 VENR3012-330M 33±20% 18 1.138 0.875 0.36 0.46 0.46 0.50 330 VENR3012-360M 36±20% 18 1.235 0.950 0.34 0.44 0.44 0.48 360 VENR3012-390M 39±20% 18 1.729 1.330 0.30 0.39 0.37 0.41 390 VENR3012-470M 47±20% 14 1.885 1.450 0.27 0.35 0.35 0.40 470 VENR3012-560M 56±20% 9 1.794 1.380 0.26 0.33 0.28 0.40 560 VENR3012-680M 68±20% 7 2.171 1.670 0.24 0.29 0.33 0.37 680 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR3015 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR3015-1R0N 1.0±30% 150 0.039 0.030 2.32 2.80 2.35 2.50 1R0 VENR3015-1R2N 1.2±30% 110 0.052 0.040 2.21 3.10 1.95 2.30 1R2 VENR3015-1R5N 1.5±30% 100 0.065 0.050 2.30 2.70 1.70 2.20 1R5 VENR3015-1R8N 1.8±30% 92 0.065 0.050 1.75 2.20 1.70 2.20 1R8 VENR3015-2R2N 2.2±30% 86 0.078 0.060 1.60 2.00 1.60 2.00 2R2 VENR3015-2R7N 2.7±30% 64 0.098 0.075 1.52 1.90 1.43 1.90 2R7 VENR3015-3R3M 3.3±20% 68 0.104 0.080 1.32 1.81 1.36 1.60 3R3 VENR3015-3R6M 3.6±20% 59 0.137 0.105 1.28 1.60 1.20 1.50 3R6 VENR3015-3R9M 3.9±20% 47 0.137 0.105 1.20 1.40 1.20 1.50 3R9 VENR3015-4R3M 4.3±20% 53 0.150 0.115 1.20 1.40 1.14 1.30 4R3 VENR3015-4R7M 4.7±20% 46 0.163 0.125 1.10 1.40 1.09 1.30 4R7 VENR3015-5R1M 5.1±20% 49 0.173 0.133 1.00 1.20 1.05 1.20 5R1 VENR3015-6R8M 6.8±20% 39 0.260 0.20 0.85 1.10 0.85 1.10 6R8 VENR3015-100M 10±20% 41 0.325 0.250 0.72 0.92 0.77 0.90 100 VENR3015-120M 12±20% 32 0.416 0.320 0.70 0.90 0.68 0.89 120 VENR3015-150M 15±20% 30 0.455 0.350 0.66 0.88 0.65 0.72 150 VENR3015-180M 18±20% 23 0.559 0.430 0.56 0.72 0.59 0.72 180 VENR3015-220M 22±20% 23 0.598 0.460 0.52 0.68 0.57 0.69 220 VENR3015-270M 27±20% 22 0.949 0.730 0.48 0.56 0.45 0.56 270 VENR3015-330M 33±20% 20 1.066 0.820 0.44 0.53 0.43 0.51 330 VENR3015-390M 39±20% 14 1.294 0.995 0.41 0.55 0.39 0.44 390 VENR3015-470M 47±20% 14 1.625 1.250 0.35 0.43 0.35 0.44 470 VENR3015-560M 56±20% 13 1.664 1.280 0.33 0.42 0.34 0.41 560 VENR3015-680M 68±20% 11 3.510 2.700 0.28 0.37 0.23 0.31 680 VENR3015-101M 100±20% 6.3 4.043 3.110 0.23 0.25 0.21 0.25 101 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR4012 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR4012-R82N 0.82±30% 150 0.065 0.050 3.02 3.30 1.65 2.50 R82 VENR4012-1R0N 1.0±30% 120 0.065 0.050 2.61 3.20 1.65 2.50 1R0 VENR4012-1R5M 1.5±20% 90 0.085 0.065 2.10 2.70 1.46 2.20 1R5 VENR4012-1R8M 1.8±20% 88 0.104 0.080 2.12 2.60 1.32 1.90 1R8 VENR4012-2R2M 2.2±20% 74 0.104 0.080 1.76 2.30 1.32 1.90 2R2 VENR4012-2R7M 2.7±20% 71 0.117 0.090 1.90 2.30 1.25 1.70 2R7 VENR4012-3R3M 3.3±20% 60 0.143 0.110 1.72 2.10 1.12 1.60 3R3 VENR4012-3R6M 3.6±20% 57 0.143 0.110 1.20 1.70 1.12 1.60 3R6 VENR4012-4R7M 4.7±20% 50 0.163 0.125 1.15 1.80 1.05 1.50 4R7 VENR4012-5R6M 5.6±20% 42 0.182 0.140 1.00 1.60 1.00 1.20 5R6 VENR4012-6R8M 6.8±20% 40 0.257 0.198 0.85 1.40 0.84 1.20 6R8 VENR4012-100M 10±20% 33 0.345 0.265 0.80 1.10 0.77 1.00 100 VENR4012-120M 12±20% 32 0.377 0.290 0.66 1.00 0.70 0.95 120 VENR4012-150M 15±20% 25 0.442 0.340 0.56 0.80 0.64 0.85 150 VENR4012-180M 18±20% 23 0.611 0.470 0.55 0.75 0.55 0.80 180 VENR4012-220M 22±20% 20 0.763 0.587 0.46 0.70 0.49 0.75 220 VENR4012-270M 27±20% 18 0.936 0.720 0.50 0.70 0.45 0.60 270 VENR4012-330M 33±20% 17 1.053 0.810 0.42 0.60 0.42 0.58 330 VENR4012-360M 36±20% 14 1.170 0.90 0.40 0.50 0.40 0.56 360 VENR4012-390M 39±20% 16 1.430 1.10 0.55 0.66 0.37 0.50 390 VENR4012-470M 47±20% 12 1.430 1.10 0.35 0.50 0.37 0.50 470 VENR4012-560M 56±20% 11 1.625 1.250 0.33 0.45 0.33 0.46 560 VENR4012-680M 68±20% 11 2.535 1.950 0.38 0.45 0.27 0.45 680 VENR4012-820M 82±20% 11 2.782 2.140 0.28 0.40 0.26 0.36 820 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR4018 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR4018-R47N 0.47±30% 155 0.018 0.014 4.30 5.20 4.00 4.50 R47 VENR4018-R68N 0.68±30% 128 0.026 0.020 4.90 5.60 3.30 3.80 R68 VENR4018-1R0N 1.0±30% 80 0.033 0.025 4.80 5.20 2.00 3.30 1R0 VENR4018-1R5N 1.5±30% 65 0.039 0.030 3.35 4.00 1.80 3.20 1R5 VENR4018-1R8N 1.8±30% 54 0.044 0.034 3.00 3.40 2.00 2.80 1R8 VENR4018-2R2M 2.2±20% 52 0.059 0.045 2.70 3.20 1.65 2.60 2R2 VENR4018-3R3M 3.3±20% 44 0.091 0.070 2.45 2.90 1.23 2.10 3R3 VENR4018-4R7M 4.7±20% 34 0.117 0.090 1.70 2.20 1.20 1.80 4R7 VENR4018-6R8M 6.8±20% 29 0.143 0.110 1.45 2.00 1.06 1.50 6R8 VENR4018-100M 10±20% 24 0.234 0.180 1.30 1.60 0.84 1.20 100 VENR4018-150M 15±20% 19 0.325 0.250 0.94 1.10 0.65 1.00 150 VENR4018-220M 22±20% 16 0.468 0.360 0.80 0.88 0.59 0.85 220 VENR4018-270M 27±20% 27 0.611 0.470 0.47 0.62 0.52 0.90 270 VENR4018-330M 33±20% 12 0.689 0.530 0.56 0.75 0.49 0.72 330 VENR4018-470M 47±20% 10 0.845 0.650 0.57 0.70 0.42 0.65 470 VENR4018-680M 68±20% 8.3 1.30 1.0 0.47 0.51 0.32 0.52 680 VENR4018-101M 100±20% 6.5 2.275 1.750 0.40 0.44 0.25 0.41 101 VENR4018-151M 150±20% 5.5 3.250 2.50 0.31 0.34 0.22 0.36 151 VENR4018-221M 220±20% 4 5.20 4.0 0.27 0.30 0.17 0.27 221 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR4020 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR4020-R33N 0.33±30% 223 0.016 0.013 7.50 8.50 3.30 4.90 R33 VENR4020-R47N 0.47±30% 160 0.029 0.022 7.00 7.50 3.30 3.70 R47 VENR4020-R68N 0.68±30% 120 0.036 0.028 6.40 6.60 2.80 3.30 R68 VENR4020-1R0N 1.0±30% 75 0.038 0.029 4.78 5.20 2.15 3.20 1R0 VENR4020-1R2N 1.2±30% 72 0.038 0.029 5.10 5.60 2.15 3.20 1R2 VENR4020-1R5N 1.5±30% 71 0.046 0.035 4.45 4.90 1.98 3.00 1R5 VENR4020-2R2N 2.2±30% 49 0.052 0.040 3.40 3.70 1.85 2.80 2R2 VENR4020-3R3M 3.3±20% 44 0.091 0.070 3.20 3.50 1.40 2.50 3R3 VENR4020-3R6M 3.6±20% 49 0.072 0.055 2.80 3.00 1.54 2.50 3R6 VENR4020-4R7M 4.7±20% 42 0.098 0.075 2.35 2.50 1.34 2.00 4R7 VENR4020-5R6M 5.6±20% 30 0.117 0.090 2.20 2.40 1.22 1.80 5R6 VENR4020-6R8M 6.8±20% 33 0.163 0.125 2.20 2.40 1.04 1.60 6R8 VENR4020-8R2M 8.2±20% 27 0.163 0.125 1.75 1.90 1.04 1.40 8R2 VENR4020-100M 10±20% 26 0.215 0.165 1.60 1.70 0.90 1.20 100 VENR4020-120M 12±20% 26 0.228 0.175 1.50 1.60 0.88 1.20 120 VENR4020-150M 15±20% 24 0.299 0.230 1.35 1.50 0.77 1.10 150 VENR4020-220M 22±20% 15 0.455 0.350 1.05 1.10 0.62 0.87 220 VENR4020-270M 27±20% 14 0.709 0.545 1.02 1.10 0.50 0.70 270 VENR4020-330M 33±20% 11 0.715 0.550 0.85 0.93 0.49 0.68 330 VENR4020-390M 39±20% 11 0.845 0.650 0.82 0.90 0.46 0.64 390 VENR4020-470M 47±20% 10 0.923 0.710 0.74 0.81 0.44 0.61 470 VENR4020-560M 56±20% 10 1.040 0.80 0.66 0.72 0.41 0.57 560 VENR4020-680M 68±20% 7.7 1.380 1.060 0.61 0.67 0.36 0.50 680 VENR4020-820M 82±20% 7.2 1.520 1.170 0.50 0.55 0.34 0.47 820 VENR4020-101M 100±20% 6.3 2.020 1.550 0.48 0.53 0.31 0.43 101 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR4030 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR4030-1R0N 1.0±30% 70 0.018 0.014 5.26 5.70 4.15 4.70 1R0 VENR4030-1R2N 1.2±30% 80 0.020 0.015 5.80 6.30 3.82 4.20 1R2 VENR4030-1R5N 1.5±30% 62 0.026 0.020 4.84 5.30 3.34 3.60 1R5 VENR4030-1R8N 1.8±30% 60 0.033 0.025 5.40 5.80 3.20 3.30 1R8 VENR4030-2R2N 2.2±30% 52 0.039 0.030 4.90 5.80 2.95 3.20 2R2 VENR4030-3R3M 3.3±20% 38 0.052 0.040 3.30 3.60 2.40 2.60 3R3 VENR4030-3R9M 3.9±20% 32 0.074 0.057 3.00 3.30 2.10 2.30 3R9 VENR4030-4R7M 4.7±20% 31 0.078 0.060 2.90 3.20 2.00 2.30 4R7 VENR4030-5R6M 5.6±20% 30 0.085 0.065 2.60 2.80 1.95 2.10 5R6 VENR4030-6R8M 6.8±20% 24 0.117 0.090 2.75 3.00 1.60 1.70 6R8 VENR4030-8R2M 8.2±20% 26 0.117 0.090 2.10 2.30 1.60 1.70 8R2 VENR4030-100M 10±20% 21 0.130 0.10 1.95 2.40 1.50 1.60 100 VENR4030-150M 15±20% 16 0.247 0.190 1.65 1.80 1.11 1.20 150 VENR4030-180M 18±20% 10 0.260 0.20 1.40 1.50 1.10 1.20 180 VENR4030-220M 22±20% 10 0.292 0.225 1.30 1.40 1.00 1.20 220 VENR4030-270M 27±20% 10 0.338 0.260 1.15 1.35 0.90 1.05 270 VENR4030-330M 33±20% 10 0.429 0.330 1.10 1.20 0.84 0.92 330 VENR4030-390M 39±20% 10 0.566 0.435 1.03 1.10 0.73 0.80 390 VENR4030-470M 47±20% 8.4 0.579 0.445 0.95 1.00 0.72 0.80 470 VENR4030-560M 56±20% 8.4 0.722 0.555 0.85 0.94 0.65 0.71 560 VENR4030-680M 68±20% 7 1.128 0.868 0.72 0.80 0.52 0.57 680 VENR4030-820M 82±20% 5.6 1.378 1.060 0.66 0.72 0.47 0.52 820 VENR4030-101M 100±20% 5.6 1.495 1.150 0.60 0.73 0.45 0.49 101 VENR4030-121M 120±20% 5.4 1.755 1.350 0.55 0.60 0.42 0.46 121 VENR4030-151M 150±20% 4 2.340 1.80 0.50 0.55 0.30 0.35 151 VENR4030-221M 220±20% 4.2 3.250 2.50 0.40 0.50 0.35 0.40 221 VENR4030-331M 330±20% 6.8 5.20 4.0 0.30 0.40 0.25 0.26 331 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR5012 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR5012-R22N 0.22±30% 315 0.034 0.028 8.10 9.30 3.00 3.30 R22 VENR5012-1R0N 1.0±30% 103 0.068 0.057 4.40 4.70 2.00 2.40 1R0 VENR5012-1R5N 1.5±30% 68 0.086 0.072 3.70 3.80 1.90 2.20 1R5 VENR5012-2R2N 2.2±30% 50 0.108 0.090 3.10 3.20 1.70 2.00 2R2 VENR5012-3R3N 3.3±30% 34 0.151 0.126 2.40 2.60 1.40 1.70 3R3 VENR5012-4R7N 4.7±30% 31 0.197 0.164 2.20 2.30 1.30 1.50 4R7 VENR5012-6R8N 6.8±20% 22 0.294 0.245 1.70 1.90 1.00 1.20 6R8 VENR5012-100M 10±20% 17 0.413 0.344 1.40 1.50 0.85 1.00 100 VENR5012-150M 15±20% 13 0.523 0.436 1.20 1.30 0.80 0.92 150 VENR5012-220M 22±20% 16 0.858 0.780 0.88 0.98 0.60 0.68 220 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR5020 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR5020-R22N 0.22±30% 280 0.011 0.009 9.00 12.00 5.30 6.00 R22 VENR5020-R47N 0.47±30% 160 0.017 0.013 6.15 6.70 4.60 5.00 R47 VENR5020-R56N 0.56±30% 137 0.022 0.017 8.50 9.60 3.80 4.20 R56 VENR5020-R68N 0.68±30% 120 0.022 0.017 5.50 6.00 4.00 4.40 R68 VENR5020-1R0N 1.0±30% 114 0.026 0.020 4.10 5.00 3.80 4.10 1R0 VENR5020-1R5N 1.5±30% 68 0.034 0.026 4.10 4.50 3.20 3.50 1R5 VENR5020-2R2N 2.2±30% 57 0.042 0.032 3.20 4.00 2.90 3.10 2R2 VENR5020-3R3N 3.3±30% 46 0.056 0.043 2.55 3.00 2.50 2.70 3R3 VENR5020-3R9N 3.9±30% 40 0.056 0.043 2.30 2.80 2.50 2.70 3R9 VENR5020-4R7M 4.7±20% 37 0.074 0.057 2.50 2.70 2.20 2.40 4R7 VENR5020-5R1M 5.1±20% 32 0.083 0.064 2.25 2.60 2.05 2.20 5R1 VENR5020-5R6M 5.6±20% 32 0.083 0.064 2.30 2.50 2.05 2.20 5R6 VENR5020-6R8M 6.8±20% 30 0.108 0.083 2.05 2.20 1.80 1.90 6R8 VENR5020-8R2M 8.2±20% 26 0.127 0.098 1.85 2.00 1.65 1.80 8R2 VENR5020-100M 10±20% 24 0.143 0.110 1.70 1.80 1.55 1.70 100 VENR5020-10M 12±20% 22 0.182 0.140 1.50 1.60 1.40 1.50 120 VENR5020-150M 15±20% 20 0.215 0.165 1.35 1.40 1.25 1.30 150 VENR5020-180M 18±20% 16 0.260 0.200 1.25 1.30 1.15 1.20 180 VENR5020-220M 22±20% 14 0.294 0.226 1.15 1.20 1.10 1.20 220 VENR5020-330M 33±20% 7 0.507 0.390 0.92 1.00 0.90 0.99 330 VENR5020-470M 47±20% 6 0.680 0.523 0.77 0.84 0.77 0.84 470 VENR5020-560M 56±20% 6 0.819 0.630 0.77 0.84 0.70 0.77 560 VENR5020-680M 68±20% 6 0.962 0.740 0.65 0.70 0.64 0.70 680 VENR5020-820M 82±20% 6 1.158 0.965 0.65 0.75 0.50 0.60 820 VENR5020-101M 100±20% 6 1.430 1.10 0.53 0.58 0.53 0.58 101 VENR5020-121M 120±20% 6 1.755 1.350 0.42 0.53 0.40 0.50 121 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR5040 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR5040-1R0N 1.0±30% 117 0.016 0.012 7.35 8.00 4.90 5.00 1R0 VENR5040-1R5N 1.5±30% 86 0.020 0.015 6.30 6.80 4.30 4.85 1R5 VENR5040-1R8N 1.8±30% 55 0.021 0.016 5.50 6.05 4.15 4.30 1R8 VENR5040-2R2N 2.2±30% 50 0.025 0.019 4.90 5.50 3.80 4.20 2R2 VENR5040-3R3N 3.3±30% 32 0.031 0.024 3.95 4.45 3.40 3.90 3R3 VENR5040-3R9N 3.9±30% 29 0.035 0.027 3.55 4.00 3.20 3.70 3R9 VENR5040-4R7N 4.7±30% 28 0.039 0.030 3.50 3.80 3.00 3.30 4R7 VENR5040-5R6M 5.6±20% 27 0.046 0.035 3.00 3.70 2.80 3.10 5R6 VENR5040-6R8M 6.8±20% 21 0.056 0.043 2.90 3.40 2.50 2.80 6R8 VENR5040-100M 10±20% 18 0.083 0.064 2.35 2.70 2.10 2.35 100 VENR5040-120M 12±20% 14 0.100 0.077 2.2 2.5 2.0 2.1 120 VENR5040-150M 15±20% 13 0.112 0.086 2.00 2.20 2.00 2.05 150 VENR5040-180M 18±20% 12 0.155 0.119 1.70 2.00 1.45 1.65 180 VENR5040-220M 22±20% 11 0.168 0.129 1.60 1.80 1.50 1.60 220 VENR5040-330M 33±20% 9 0.244 0.188 1.30 1.45 1.20 1.35 330 VENR5040-470M 47±20% 7 0.354 0.272 1.10 1.20 1.00 1.15 470 VENR5040-560M 56±20% 6 0.494 0.380 1.05 1.20 0.80 0.90 560 VENR5040-680M 68±20% 6 0.520 0.40 0.90 1.00 0.80 0.90 680 VENR5040-101M 100±20% 5 0.728 0.560 0.75 0.85 0.70 0.78 101 VENR5040-151M 150±20% 3.7 0.975 0.750 0.65 0.67 0.60 0.70 151 VENR5040-221M 220±20% 3.0 1.820 1.40 0.48 0.55 0.40 0.50 221 VENR5040-331M 330±20% 2.7 2.730 2.10 0.42 0.47 0.40 0.50 331 VENR5040-471M 470±20% 2.7 3.90 3.0 0.37 0.43 0.35 0.40 471 VENR5040-561M 560±20% 1.3 4.920 3.780 0.31 0.36 0.31 0.35 561 VENR5040-681M 680±20% 1.3 5.070 3.90 0.30 0.35 0.25 0.30 681 VENR5040-102M 1000±20% 1.3 7.80 6.0 0.21 0.25 0.20 0.23 102 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR6020 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR6020-R68N 0.68±30% 115 0.022 0.017 6.55 7.80 3.80 4.80 R68 VENR6020-R82N 0.82±30% 110 0.022 0.017 5.30 6.30 3.80 4.80 R82 VENR6020-1R0N 1.0±30% 100 0.020 0.020 4.15 5.00 3.50 4.40 1R0 VENR6020-1R2N 1.2±30% 88 0.029 0.022 5.90 7.00 3.20 4.00 1R2 VENR6020-1R5N 1.5±30% 79 0.029 0.022 4.25 5.10 3.20 4.00 1R5 VENR6020-1R8N 1.8±30% 68 0.036 0.028 4.85 5.80 2.75 3.50 1R8 VENR6020-2R0N 2.0±30% 65 0.046 0.035 4.10 4.90 2.60 3.30 2R0 VENR6020-2R2N 2.2±30% 61 0.036 0.028 3.75 4.50 2.75 3.50 2R2 VENR6020-2R7N 2.7±30% 56 0.046 0.035 3.90 4.60 2.60 3.30 2R7 VENR6020-3R3N 3.3±30% 51 0.046 0.035 3.15 3.70 2.60 3.30 3R3 VENR6020-3R9N 3.9±30% 45 0.064 0.049 3.25 3.90 2.10 2.60 3R9 VENR6020-4R3N 4.3±30% 44 0.064 0.049 2.70 3.20 2.10 2.60 4R3 VENR6020-4R7N 4.7±30% 41 0.075 0.058 3.00 3.60 2.00 2.50 4R7 VENR6020-5R6N 5.6±30% 36 0.075 0.058 2.40 2.90 1.90 2.40 5R6 VENR6020-6R2N 6.2±30% 31 0.103 0.079 2.30 2.70 1.80 2.30 6R2 VENR6020-6R8N 6.8±30% 31 0.103 0.079 2.20 2.60 1.80 2.30 6R8 VENR6020-8R2N 8.2±30% 27 0.137 0.105 2.10 2.50 1.40 1.80 8R2 VENR6020-100M 10±20% 27 0.137 0.105 1.75 2.10 1.40 1.80 100 VENR6020-120M 12±20% 25 0.156 0.120 1.45 1.70 1.30 1.60 120 VENR6020-150M 15±20% 21 0.189 0.145 1.20 1.40 1.20 1.50 150 VENR6020-180M 18±20% 18 0.234 0.180 1.20 1.40 1.08 1.40 180 VENR6020-220M 22±20% 16 0.265 0.204 1.05 1.20 1.00 1.30 220 VENR6020-330M 33±20% 11 0.390 0.30 0.95 1.10 0.84 1.05 330 VENR6020-470M 47±20% 10 0.559 0.430 0.70 0.90 0.80 0.90 470 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR6028 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR6028-R82N 0.82±30% 97 0.016 0.012 6.50 9.00 5.20 6.00 R82 VENR6028-1R0N 1.0±30% 70 0.013 0.010 5.75 7.00 5.20 5.70 1R0 VENR6028-1R2N 1.2±30% 69 0.017 0.013 6.40 7.50 4.58 5.00 1R2 VENR6028-1R5N 1.5±30% 65 0.017 0.013 6.00 6.60 4.58 5.00 1R5 VENR6028-2R2N 2.2±30% 48 0.026 0.020 5.10 5.60 3.75 4.10 2R2 VENR6028-2R7N 2.7±30% 48 0.026 0.020 3.80 4.10 3.75 4.10 2R7 VENR6028-3R3N 3.3±30% 41 0.033 0.025 4.15 4.50 3.48 3.80 3R3 VENR6028-4R7N 4.7±30% 35 0.039 0.030 3.00 3.30 3.08 3.40 4R7 VENR6028-6R2M 6.2±20% 30 0.061 0.047 3.05 3.30 2.40 2.60 6R2 VENR6028-6R8M 6.8±20% 27 0.061 0.047 2.60 3.00 2.40 2.60 6R8 VENR6028-8R2M 8.2±20% 24 0.072 0.055 2.30 2.50 2.25 2.50 8R2 VENR6028-100M 10±20% 23 0.094 0.072 2.04 2.50 1.95 2.40 100 VENR6028-120M 12±20% 18 0.104 0.080 1.80 2.00 1.85 2.00 120 VENR6028-150M 15±20% 18 0.163 0.125 1.75 1.90 1.45 1.60 150 VENR6028-180M 18±20% 15 0.156 0.120 1.52 1.80 1.45 1.60 180 VENR6028-220M 22±20% 14 0.182 0.140 1.45 1.80 1.40 1.60 220 VENR6028-270M 27±20% 13 0.202 0.155 1.50 1.60 1.32 1.40 270 VENR6028-330M 33±20% 12 0.241 0.185 1.35 1.50 1.22 1.30 330 VENR6028-360M 36±20% 11 0.280 0.215 1.25 1.40 1.13 1.20 360 VENR6028-390M 39±20% 11 0.293 0.225 1.25 1.40 1.10 1.20 390 VENR6028-470M 47±20% 9.5 0.410 0.315 1.15 1.30 1.06 1.10 470 VENR6028-560M 56±20% 8.2 0.449 0.345 1.05 1.20 0.89 1.00 560 VENR6028-680M 68±20% 7.7 0.468 0.360 0.80 0.95 0.86 0.95 680 VENR6028-820M 82±20% 7.7 0.650 0.50 0.80 0.88 0.70 0.77 820 VENR6028-101M 100±20% 7.1 0.650 0.50 0.65 0.71 0.70 0.77 101 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR6045 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR6045-1R0N 1.0±30% 100 0.014 0.011 9.85 10.00 5.14 5.60 1R0 VENR6045-1R5N 1.5±30% 65 0.016 0.012 8.80 9.70 4.95 5.40 1R5 VENR6045-2R2N 2.2±30% 52 0.018 0.014 6.75 7.40 4.60 5.00 2R2 VENR6045-3R3N 3.3±30% 32 0.027 0.021 5.90 6.20 3.70 4.00 3R3 VENR6045-3R6N 3.6±30% 28 0.027 0.021 5.25 5.70 3.70 4.00 3R6 VENR6045-4R7M 4.7±20% 24 0.034 0.026 4.97 5.50 3.30 3.60 4R7 VENR6045-6R8M 6.8±20% 20 0.040 0.031 3.90 4.30 3.00 3.30 6R8 VENR6045-100M 10±20% 15 0.066 0.048 3.00 3.50 2.45 2.70 100 VENR6045-150M 15±20% 12 0.088 0.068 2.70 2.70 2.05 2.20 150 VENR6045-180M 18±20% 10 0.105 0.081 2.20 2.40 1.85 2.00 180 VENR6045-220M 22±20% 10 0.116 0.089 2.05 2.20 1.80 2.00 220 VENR6045-270M 27±20% 9.2 0.133 0.102 1.90 2.10 1.65 1.80 270 VENR6045-330M 33±20% 7.8 0.178 0.137 1.65 1.80 1.45 1.60 330 VENR6045-390M 39±20% 7.8 0.234 0.180 1.50 1.60 1.25 1.40 390 VENR6045-470M 47±20% 6.4 0.260 0.20 1.40 1.50 1.20 1.30 470 VENR6045-560M 56±20% 6.4 0.287 0.221 1.30 1.40 1.10 1.20 560 VENR6045-680M 68±20% 6.4 0.376 0.289 1.20 1.30 1.00 1.10 680 VENR6045-101M 100±20% 4.2 0.563 0.433 0.95 1.00 0.80 0.88 101 VENR6045-121M 120±20% 4.2 0.629 0.484 0.85 0.94 0.77 0.85 121 VENR6045-151M 150±20% 4.2 0.754 0.580 0.80 0.88 0.70 0.77 151 VENR6045-221M 220±20% 3.5 1.084 0.834 0.70 0.77 0.59 0.65 221 VENR6045-331M 330±20% 2.8 1.651 1.270 0.57 0.63 0.57 0.63 331 VENR6045-471M 470±20% 2.0 2.340 1.80 0.50 0.56 0.42 0.48 471 VENR6045-681M 680±20% 1.7 3.250 2.50 0.42 0.46 0.33 0.38 681 VENR6045-102M 1000±20% 0.5 5.850 4.50 0.30 0.35 0.30 0.35 102 VENR6045-152M 1500±20% 0.8 8.450 6.50 0.24 0.27 0.21 0.24 152 VENR6045-222M 2200±10% 0.9 12.48 10.40 0.20 0.23 0.17 0.20 222 Part No. RDC Isat Irms TYPICAL ELECTRICAL CHARACTERISTICS DC.Current(A) DC.Current(A) Marking Electrical Characteristics VENR8040 Series Inductance S.R.F 100kHz/0.25V Min. Max. Typ. Max. Typ. Max. Typ. uH MHz Ω Ω A A A A VENR8040-1R0N 1.0±30% 89 0.010 0.008 9.85 14.00 6.30 6.90 1R0 VENR8040-1R2N 1.2±30% 59 0.013 0.010 10.00 14.00 5.65 6.20 1R2 VENR8040-1R5N 1.5±30% 67 0.013 0.010 8.15 11.00 5.65 6.20 1R5 VENR8040-2R2N 2.2±30% 41 0.016 0.012 7.10 8.00 5.15 5.60 2R2 VENR8040-3R3N 3.3±30% 27 0.022 0.017 6.50 7.00 4.40 4.80 3R3 VENR8040-3R6N 3.6±30% 30 0.022 0.017 7.52 8.50 4.35 4.80 3R6 VENR8040-3R9N 3.9±30% 26 0.022 0.017 5.75 6.50 4.35 4.80 3R9 VENR8040-4R7N 4.7±30% 24 0.025 0.019 5.90 6.50 4.10 4.50 4R7 VENR8040-5R6N 5.6±30% 24 0.027 0.021 6.00 6.90 3.85 4.20 5R6 VENR8040-6R2N 6.2±30% 20 0.027 0.021 4.45 5.10 3.85 4.20 6R2 VENR8040-6R8M 6.8±20% 20 0.031 0.024 4.55 5.20 3.60 4.00 6R8 VENR8040-8R2M 8.2±20% 17 0.034 0.026 4.20 4.80 3.45 3.80 8R2 VENR8040-100M 10±20% 15 0.038 0.029 3.60 4.10 3.30 3.60 100 VENR8040-120M 12±20% 13 0.053 0.041 3.50 4.00 2.80 3.00 120 VENR8040-150M 15±20% 12 0.061 0.047 2.95 3.40 2.60 2.80 150 VENR8040-180M 18±20% 11 0.069 0.053 2.70 3.10 2.40 2.60 180 VENR8040-220M 22±20% 9.5 0.090 0.069 2.40 2.70 2.10 2.30 220 VENR8040-270M 27±20% 9.2 0.101 0.078 2.15 2.50 2.00 2.20 270 VENR8040-330M 33±20% 7.8 0.126 0.097 2.05 2.40 1.80 2.00 330 VENR8040-360M 36±20% 7.8 0.133 0.102 2.00 2.30 1.75 1.90 360 VENR8040-390M 39±20% 7.8 0.139 0.107 1.95 2.20 1.70 1.90 390 VENR8040-430M 43±20% 7.8 0.147 0.113 1.90 2.20 1.65 1.80 430 VENR8040-470M 47±20% 6.4 0.177 0.136 1.75 2.00 1.55 1.70 470 VENR8040-510M 51±20% 6.4 0.185 0.142 1.70 1.90 1.50 1.60 510 VENR8040-680M 68±20% 4.9 0.255 0.196 1.45 1.60 1.25 1.40 680 VENR8040-820M 82±20% 5.9 0.293 0.225 1.30 1.40 1.15 1.20 820 VENR8040-101M 100±20% 4.9 0.377 0.290 1.15 1.30 1.00 1.10 101 VENR8040-121M 120±20% 4.2 0.434 0.334 1.05 1.10 0.95 1.00 121 VENR8040-151M 150±20% 3.5 0.533 0.410 1.10 1.20 0.85 0.94 151 VENR8040-181M 180±20% 3.5 0.676 0.520 0.95 1.15 0.83 0.92 181 VENR8040-221M 220±20% 3.5 0.779 0.599 0.85 0.94 0.80 0.88 221 VENR8040-331M 330±20% 2.8 1.156 0.889 0.68 0.75 0.64 0.70 331 VENR8040-471M 470±20% 2.1 1.625 1.260 0.60 0.70 0.50 0.60 471 VENR8040-681M 680±20% 1.7 2.652 2.040 0.50 0.60 0.45 0.50 681 VENR8040-102M 1000±20% 1.4 3.640 2.80 0.40 0.50 0.35 0.40 102 VENR8040-152M 1500±20% 1.0 6.50 5.0 0.32 0.38 0.26 0.27 152 Part No. RDC Isat Irms Marking TYPICAL ELECTRICAL CHARACTERISTICS VENR8040 Series DC.Current(A) DC.Current(A) Supplier Information Supplier: Shenzhen Volume Source Electronics Co., Ltd. Manufacturer: ShenzhenVolume Source Electronics Co., Ltd. Manufacturing Address: Address: 16th Floor, Building T5-N4, Tian'an Digital City, Fenggang, Dongguan Tel: 0769-89891993 Fax: 0769-89891993-806 E-mail:yhp@volumesz.com.cn M.P:13316585579 Mr.Yu Http://www.volumesz.com.cn
