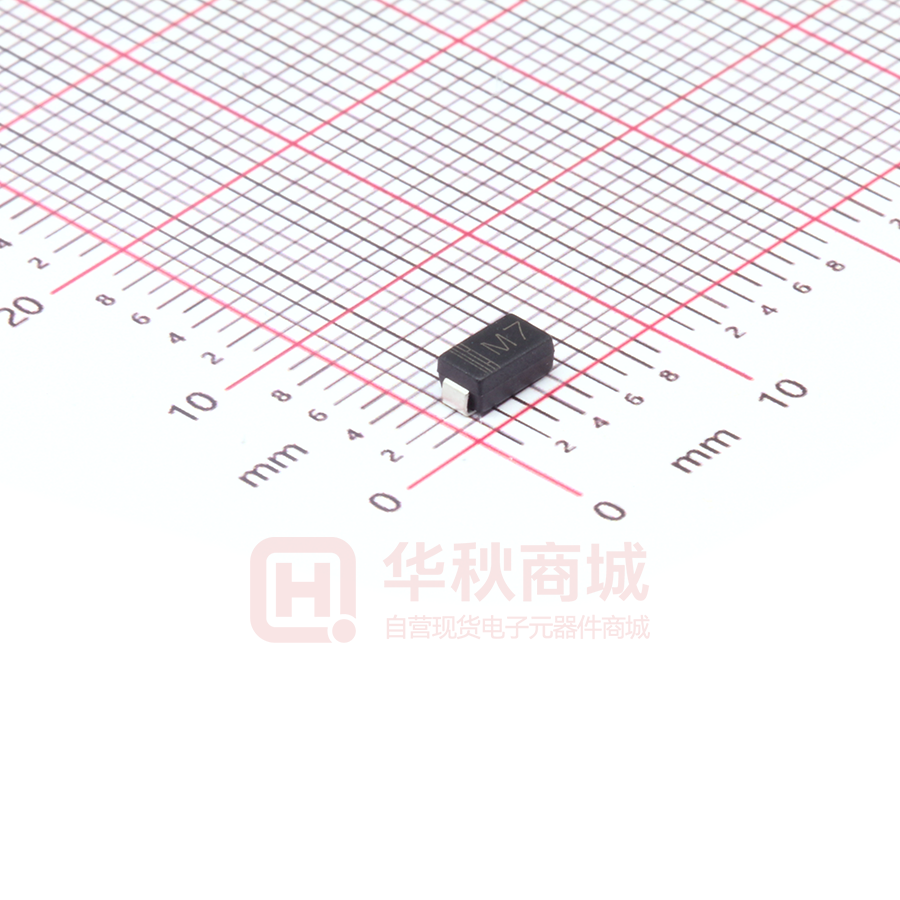

M7

M1 M7 THRU 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * High surge current capability DO-214AC(SMA) .102(2.60) .094(2.40) .058(1.47) .052(1.32) MECHANICAL DATA .161(4.10) .153(3.90) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Terminals: Solder plated, solderable per MIL-STD-202F, method 208 guranteed * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.063 gram .012(0.31) .006(0.15) .090(2.29) .078(1.98) .005 MAX. (.127) .208(5.28) .194(4.93) .060(1.52) .030(0.76) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current M1 50 35 50 M2 M3 M4 M5 M6 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 M7 1000 700 1000 UNITS V V V .375"(9.5mm) Lead Length at Ta=75 C Peak Forward Surge Current, 8.3 ms single half sine-wave 1.0 A superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 1.0A Maximum DC Reverse Current Ta=25 C 30 1.1 5.0 A V A at Rated DC Blocking Voltage Ta=100 C Typical Junction Capacitance (Note 1) Typical Thermal Resistance RqJA (Note 2) Operating and Storage Temperature Range TJ, TSTG 50 15 50 A pF C/W C -65 +150 NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance from Junction to Ambient. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (M1THRU M7) FIG.1-TYPICAL FORWARD FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 10 3.0 1.0 1.2 1.0 0.8 Single Phase 0.6 Half Wave 60Hz Resistive Or Inductive Load 0.4 0.2 0 0 20 40 Tj=25 C 60 80 100 120 140 160 180 200 AMBIENT TEMPERATURE ( C) Pulse Width 300us 1% Duty Cycle 0.1 FIG.4-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT .01 .6 .7 .8 .9 1.0 1.1 1.2 1.3 FORWARD VOLTAGE,(V) FIG.3 - TYPICAL REVERSE CHARACTERISTICS PEAK FORWAARD SURGE CURRENT,(A) INSTANTANEOUS FORWARD CURRENT,(A) 50 50 40 30 8.3ms Single Half Tj=25 C Sine Wave 20 JEDEC method 10 0 1 100 5 50 10 100 FIG.5-TYPICAL JUNCTION CAPACITANCE 10 35 Tj=100 C JUNCTION CAPACITANCE,(pF) REVERSE LEAKAGE CURRENT, ( A) NUMBER OF CYCLES AT 60Hz 1.0 Tj=25 C .1 30 25 20 15 10 5 .01 0 0 20 40 60 80 .01 .05 .1 .5 1 5 10 50 100 100 120 140 PERCENTAGE RATED PEAK REVERSE VOLTAGE REVERSE VOLTAGE,(V) REV 1.0 2015 JAN PAGE:2/2
