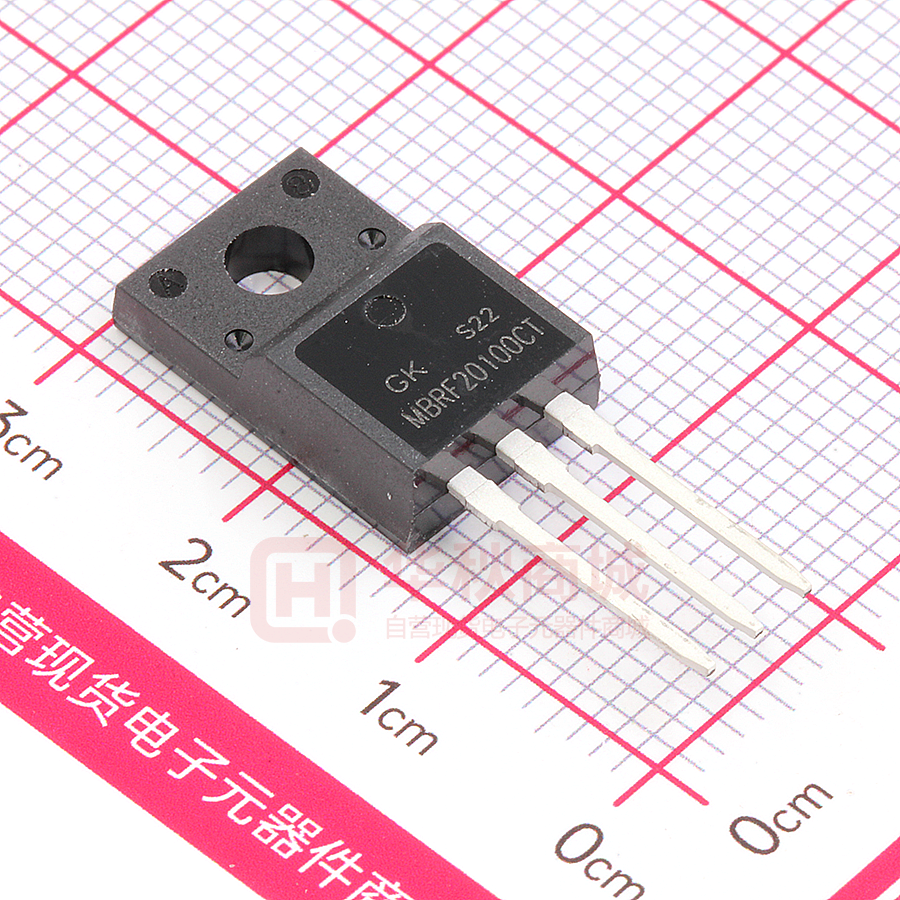

MBRF20100CT

MBRF2020CT THRU MBRF20200CT 20.0 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 20 to 200 Volts CURRENT 20.0 Amperes FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * Good for switching mode application ITO-220AB (FULLY INSULATED) .108 (2.75) .248 (6.3) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Lead solderable per MIL-STD-202, method 208 guranteed * Polarity: As Marked * Mounting position: Any .189 MAX. (4.8) .122 MAX. (3.1) 3.4 f MAX. HOLE THRU .412 (10.5) MAX. .610 (15.5) MAX. .550 (14.0) .158 (4.0) MIN. MAX. .060 MAX. (1.5) .035 MAX. (0.9) .100 (2.54) .114(2.9) .098(2.5) PIN 1 + PIN 1 PIN 3 CASE PIN 2 PIN 3 CASE PIN 2 Negative CT Suffix "A" Positive CT Suffix "C" Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current MBRF2020CT MBRF2045CT 20 14 20 45 32 45 MBRF2060CT MBRF2080CT 60 42 60 at Rated DC Blocking Voltage Ta=100 C Typical Junction Capacitance (Note1) Typical Thermal Resistance R JC (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG 100 70 100 150 105 150 200 140 200 0.55 200 0.85 0.2 0.7 50 500 2.5 -65 +150 -65 +150 UNITS V V V A 20 at Tc=125 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 20A Maximum DC Reverse Current Ta=25 C MBRF20100CT MBRF20150CT MBRF20200CT 80 56 80 0.92 A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Case. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (MBRF2020CT THRU MBRF20200CT) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 5C T 0 0 20 40 60 80 100 120 140 160 180 200 CASE TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT -M BR F2 02 00 CT BR F2 01 00 CT CT CT 60 20 20 RF 20 MB -M 20 15 0C T RF 5.0 MB 4 MB RF 20 80 CT 8 20 RF 12 MB 16 -M BR F2 04 50 20 INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 24 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 250 .01 200 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 150 8.3ms Single Half Tj=25 C Sine Wave 100 JEDEC method 50 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1400 1200 1000 800 600 400 10 Tj=100 C 1.0 Tj=75 C .1 Tj=25 C 200 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2015 JAN PAGE:2/2
