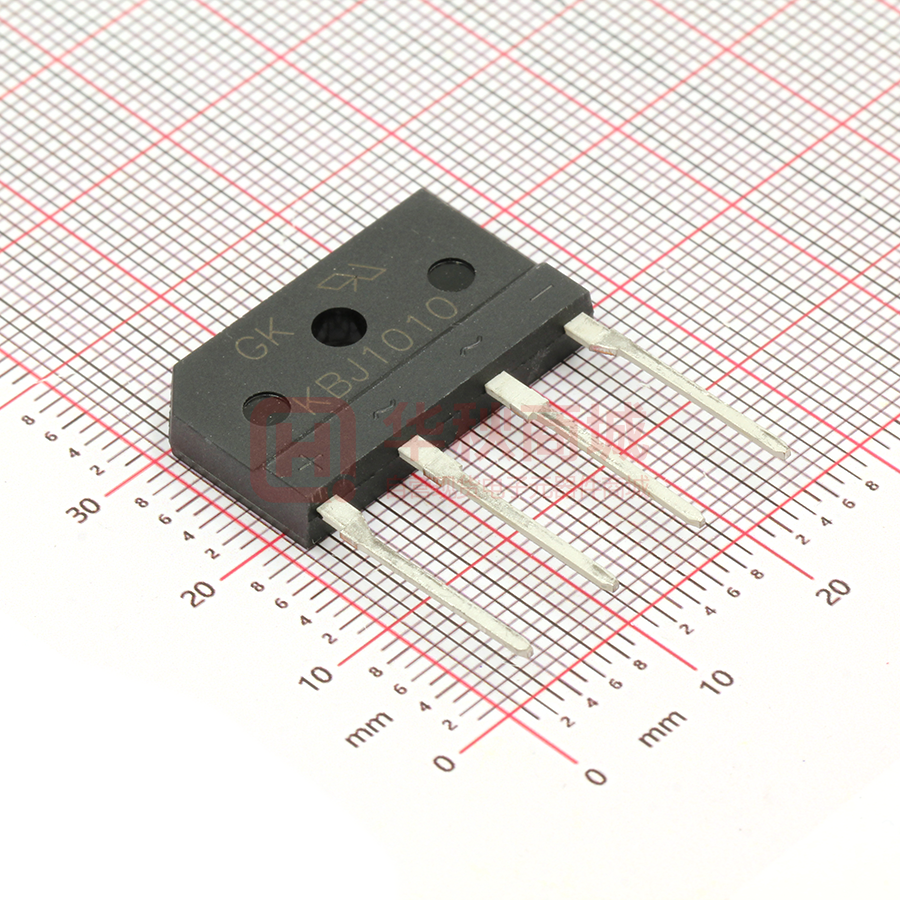

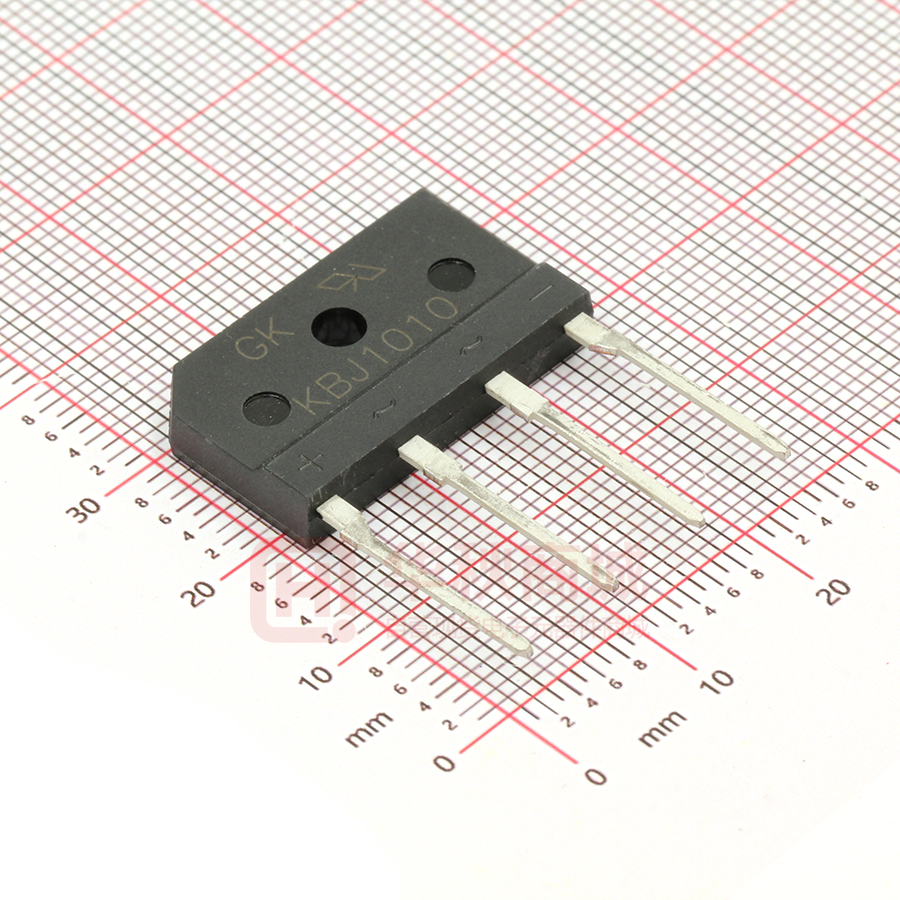

KBJ1010

KBJ10005 5 THRU KBJ1010 SINGLE PHASE 10.0 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Amperes KBJ + + + + FEATURES + * Ideal for printed circuit board + * Low forward voltage + * Low leakage current + * Mounting position: Any + + + + + + Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER KBJ10005 KBJ1001 KBJ1002 KBJ1004 KBJ1006 KBJ1008 8 KBJ1010 Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward (with heatsink Note 2) 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V 10.0 A Rectified Current at Tc=110 C (Without heatsink) Peak Forward Surge Current, 8.3 ms single half sine-wave 3.0 A superimposed on rated load (JEDEC method) Maximum Forward Voltage Drop per Bridge Element at 5.0A D.C. Maximum DC Reverse Current Ta=25 C 200 1.05 5.0 A V A at Rated DC Blocking Voltage Typical Thermal Resistance RqJC (Note 1) Typical Thermal Resistance RqJL (Note 2) Operating Temperature Range, TJ Storage Temperature Range, TSTG 500 2.3 6.0 A C/W C/W Ta=100 C -55 -55 +150 +150 C C NOTES: 1. Thermal Resistance from Junction to Case with device mounted on 100mm x 100mm x 1.6mm Cu Plate Heatsink. 2. Thermal Resistance from Junction to Lead without Heatsink. REV 1.0 2019 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (KBJ10005 THRU KBJ1010) FIG.2-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT AVERAGE FORWARD CURRENT,(A) 18 Single Phase 16 Half Wave 60Hz 14 Resistive Or Inductive Load 12 WITH HEATSINK 10 8 6 4 2 0 WITHOUT HEATSINK 0 20 40 60 80 100 120 140 160 PEAK FORWARD SURGE CURRENT,(A) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE 250 200 150 Sine Wave 100 JEDEC method 50 0 1 CASE TEMPERATURE,( C) 8.3ms Single Half Tj=25 C 50 10 5 100 FIG.3-TYPICAL FORWARD FIG.4-TYPICAL REVERSE CHARACTERISTICS CHARACTERISTICS 50 50 10 10 REVERSE LEAKAGE CURRENT, ( A) INSTANTANEOUS FORWARD CURRENT,(A) NUMBER OF CYCLES AT 60Hz 3.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 3.0 Tj=100 C 1.0 0.1 Tj=25 C .01 0 .2 .4 .6 .8 1.0 FORWARD VOLTAGE,(V) 1.2 1.4 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) REV 1.0 2019 JAN PAGE:2/2
