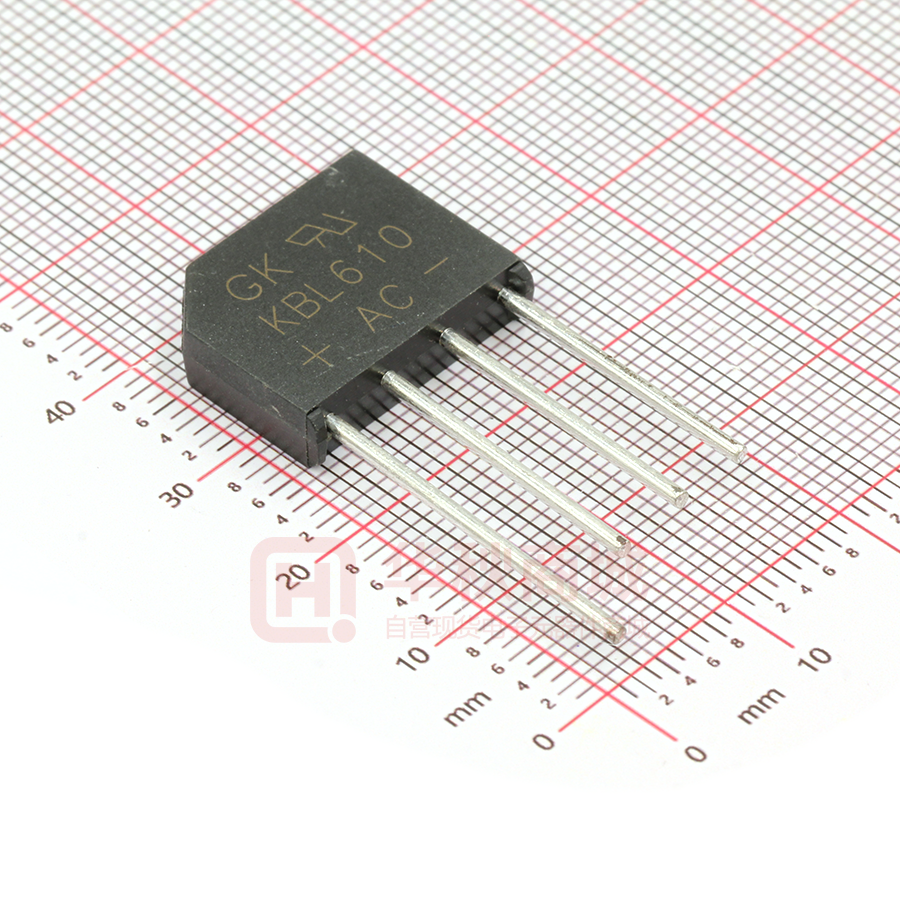

KBL606 THRU KBL610
SINGLE PHASE 4.0 AMP BRIDGE RECTIFIERS
VOLTAGE RANGE
50 to 1000 Volts
CURRENT
FEATURES
6.0 Amperes
* Ideal for printed circuit board
* Low forward voltage
0.768(19.5)
0.728(18.5)
* Low leakage current
* Polarity: marked on body
0.580(14.7)
0.640(16.3)
0.540(13.7)
0.600(15.2)
* Mounting position: Any
AC
+
-
0.750
(19.0)
MIN.
0.052(1.3)
0.048(1.2)
0.083
(2.1)
0.220(5.6)
0.180(4.6)
0.256(6.5)
0.236(6.0)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
KBL606
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
KBL608
600
420
600
800
560
800
KBL610
UNITS
1000
700
1000
V
V
V
.375"(9.5mm) Lead Length at Ta=50 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
6.0
A
superimposed on rated load (JEDEC method)
Maximum Forward Voltage Drop per Bridge Element at 3.0A D.C.
Maximum DC Reverse Current
Ta=25 C
150
1.0
5
A
V
A
500
+150
+150
C
C
at Rated DC Blocking Voltage
Operating Temperature Range, TJ
Storage Temperature Range, TSTG
Ta=100 C
-65
-65
A
REV 1.0 2017 JAN
PAGE:1/2
RATING AND CHARACTERISTIC CURVES (KBL606 THRU KBL610)
FIG.2-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
6
5
4
Single Phase
3
Half Wave 60Hz
Resistive Or Inductive Load
2
1
0
0
25
50
75
100 125
150
175
AMBIENT TEMPERATURE,( C)
PEAK FORWARD SURGE CURRENT,(A)
AVERAGE FORWARD CURRENT,(A)
FIG.1-TYPICAL FORWARD CURRENT
DERATING CURVE
250
200
150
8.3ms Single Half
Tj=25 C
Sine Wave
100
JEDEC method
50
0
1
5
50
10
100
FIG.3-TYPICAL FORWARD
FIG.4-TYPICAL REVERSE
CHARACTERISTICS
CHARACTERISTICS
50
50
10
10
REVERSE LEAKAGE CURRENT, ( A)
INSTANTANEOUS FORWARD CURRENT,(A)
NUMBER OF CYCLES AT 60Hz
3.0
1.0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0.1
3.0
Tj=100 C
1.0
0.1
Tj=25 C
.01
0
.2
.4
.6
.8
1.0
FORWARD VOLTAGE,(V)
1.2
1.4
.01
0
20
40
60
80
100 120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
REV 1.0 2017 JAN
PAGE:2/2
