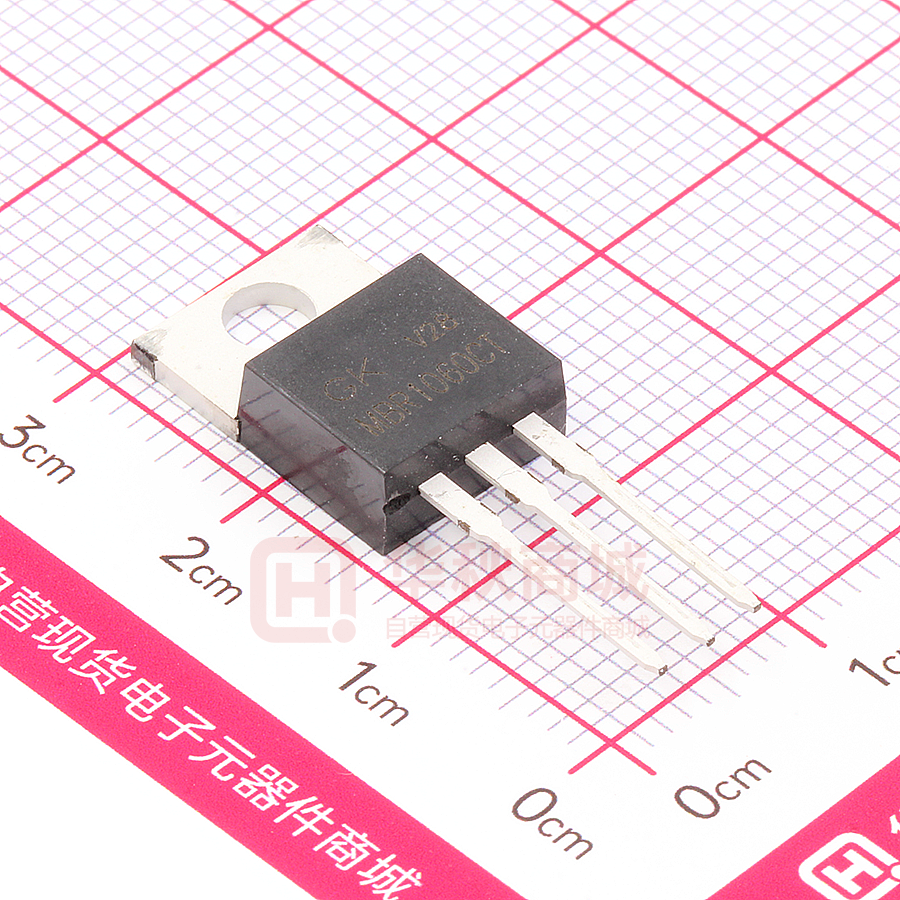

MBR1060CT

MBR1020CT THRU MBR10200CT 10.0 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 20 to 200 Volts CURRENT 10.0 Amperes FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * Good for switching mode application TO-220AB .412 (10.5) MAX. .108 (2.75) 3.8 f +.2 HOLE THRU .248 (6.3) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Lead solderable per MIL-STD-202, method 208 guranteed * Polarity: As Marked * Mounting position: Any .180 (4.6) .050 (1.27) .595 (15.1) MAX. .550 (14.0) .158 (4.0) MIN. MAX. .051 MAX. (1.3) .040 MAX. (1.0) .100 (2.54) .120 (3.05) PIN 1 + PIN 3 CASE PIN 2 Positive CT Suffix "C" Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current MBR1020CT MBR1045CT MBR1060CT MBR1080CT MBR10100CT MBR10150CTMBR10200CT UNITS 20 14 20 45 32 45 60 42 60 80 56 80 at Rated DC Blocking Voltage Ta=100 C Typical Junction Capacitance (Note1) Typical Thermal Resistance R JC (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG 150 105 150 200 140 200 0.55 150 0.85 0.2 0.7 50 420 2.5 -65 +150 -65 +150 V V V A 10 at Tc=125 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 10A Maximum DC Reverse Current Ta=25 C 100 70 100 0.92 A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Case. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (MBR1020CT THRU MBR10200CT) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 0 0 20 40 60 80 100 120 140 160 180 200 CASE TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT CT T T MB R1 02 00 C 06 R1 BR 10 10 0C T T 0C 0C 02 MB -M TR1 01 50 C MB 2 5.0 MB R1 08 0C T 4 10 R1 6 MB 8 -M BR 10 45 50 10 INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 12 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 250 .01 200 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 150 8.3ms Single Half Tj=25 C Sine Wave 100 JEDEC method 50 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1400 1200 1000 800 600 400 10 Tj=100 C 1.0 Tj=75 C .1 Tj=25 C 200 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2015 JAN PAGE:2/2
