OR-354B

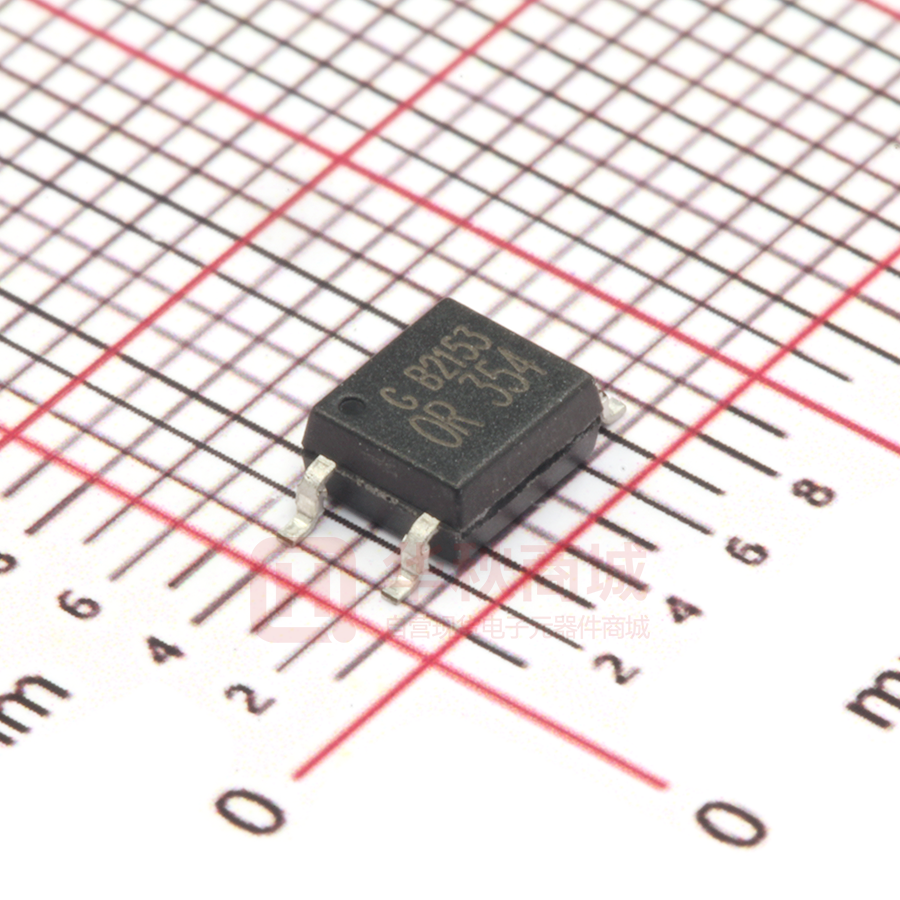

Shenzhen Orient Components Co ., Ltd OR-354 ORIENT Photocoupler Product Data Sheet P/N: Photocoupler Customer: Mfg P/N: OR-354 Date: SHENZHEN ORIENT COMPONENTS CO.,LTD. Block A 3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang Dist,Shenzhen,GD TEL：0755-29681816 FAX：0755-29681200 www.orient-opto.com Copyright© 2019 Orient Tech Corporation.All rights Reserved 1 A0 Shenzhen Orient Components Co ., Ltd OR-354 1. Features  Current transfer ratio(CTR : MIN. 20% at IF = ±1mA, VCE = 5V, Ta=25 ℃)  High input -output isolation voltage （VISO=3,750Vrms）  High collector-emitter voltage （VCEO = 35V）  SOP-4 package  -55 ℃ to 115 ℃  RoHS Compliance 4 3 1 2 2. Instructions  The OR-354 series device consists of two infrared emitting diode,connected in inverse parallel, optically coupled to a phototransistor detector. They are encapsulated in a 4 pin SOP encapsulation.  Pin pitch of OR-354 is 2.54mm 1 Anode 2 Cathode 3 Emitter 4 Collector 3. Application Range  Hybrid substrates that require high density mounting.  Programmable controllers  System appliance, measuring instruments 4. Max Absolute rated Value (Normal Temperature=25℃) Parameter Input Output Symbol Rated Value Unit Forward Current IF ±50 mA Junction Temperature TJ 125 ℃ Consume Power P 70 mW Collector and emitter Voltage VCEO 35 Emitter and collector Voltage VECO 6 Collector Current IC 50 mA Consume Power PC 150 mW Junction Voltage TJ 125 ℃ Total Consume Power Ptot 170 mW *1 Insulation Voltage Viso 3750 Vrms Copyright© 2018 Orient Tech Corporation.All rights Reserved 2 V A0 Shenzhen Orient Components Co ., Ltd OR-354 Working Temperature Topr -55 to + 115 Deposit Temperature Tstg -55 to + 150 *2 Soldering Temperature Tsol 260 ℃ *1. AC Test, 1 minute, humidity = 40~60% Insulation test method as below: (1) Short circuit both terminals of photocoupler. (2) No Current when testing insulation voltage. (3) Adding sine wave voltage when testing. *2. soldering time is 10 seconds. 5. Opto-electronic Characteristics Parameter Symbol Condition Min Typ.* Max Unit Forward Current VF IF=±20mA --- 1.2 1.4 V Collector capacitance Ct V=0, f=1KHz --- 30 250 pF Collector to emitter Current ICEO VCE=20V, IF=0mA --- --- 100 nA Collector and Emitter attenuation Voltage BVCEO IC=0.1mA IF=0mA 35 --- --- V Emitter and Collector attenuation Voltage BVECO IE=10µA IF=0mA 6 --- --- V Collector and Emitter Saturation Voltage VCE(sat) IF=±20mA IC= 1mA --- --- 0.2 V Insulation Impedance Riso DC500V 40~60%R.H. --- Ω Floating Capacitance Cf V=0, f=1MHz Response Time tr Descend Time tf Input Output Copyright© 2018 Orient Tech Corporation.All rights Reserved 3 VCC=2V, IC=2mA RL=100Ω 5×1010 1×1011 --- 0.6 1 pF --- 4 18 μs --- 3 18 μs A0 Shenzhen Orient Components Co ., Ltd OR-354 6. Rank table of current transfer ratio CTR CTR Rank Min. Max. A 50 150 B 80 400 B2 100 400 C 200 400 No mark 20 400 Condition IF=±1mA, VCE=5V, Ta=25℃ 7. Naming Rule 2.RANK 3.YEAR CODE 5.Halogen free 4.WEEK CODE OR 354 1.ORIENT 1. ORIENT 2. Rank shall be or shall not be marked. 3. Year Code, Example : 2010 = 10 4. Work Week Ranging from ‘01’ to ‘53’ 5. “●” indicates halogen free option. Copyright© 2018 Orient Tech Corporation.All rights Reserved 4 A0 Shenzhen Orient Components Co ., Ltd OR-354 8. Outer Dimension pin No. and Internal connection diagram 2,54±0.25 4 3 4,4±0.25 1 2 3 4 2 1 3,85±0.3 Anode Cathode Emitter Collector 0,10±0.1 2.00±0.2 5.30±0.3 +0.2 0,4±0.1 7.00- 0.7 9. Recommended Foot Print Patterns (Mount Pad) unit：mm Copyright© 2018 Orient Tech Corporation.All rights Reserved 5 A0 Shenzhen Orient Components Co ., Ltd OR-354 10. Taping Dimensions (1) OR-354-TP (2) OR-354-TP1 Description Symbol Dimension in mm(inch) Tape wide W 12±0.3（0.472） Pitch of sprocket holes P0 4±0.1（0.157） F 5.5±0.1（0.217） P2 2±0.1（0.079） P1 8±0.1（0.315） Distance of compartment Distance of compartment to compartment Package Type OR-354 series Quantities(pcs) 3000 Copyright© 2018 Orient Tech Corporation.All rights Reserved 6 A0 Shenzhen Orient Components Co ., Ltd OR-354 11. Temperature Profile Of Soldering （1）IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (T Smin ) 150˚C - Temperature Max (T Smax ) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL ) 217˚C - Time (t L ) 60 sec Peak Temperature 260˚C Ramp-up rate 3˚C / sec max. 3˚C / sec max. 3~6˚C / sec Copyright© 2018 Orient Tech Corporation.All rights Reserved 7 A0 Shenzhen Orient Components Co ., Ltd OR-354 （2）Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature 260+0/-5˚C Time 10 sec Preheat temperature 5 to 140˚C Preheat time 30 to 80 sec （3）Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature 380+0/-5˚C Time 3 sec max Copyright© 2018 Orient Tech Corporation.All rights Reserved 8 A0 Shenzhen Orient Components Co ., Ltd OR-354 12. Characteristics Curve Copyright© 2018 Orient Tech Corporation.All rights Reserved 9 A0 Shenzhen Orient Components Co ., Ltd Copyright© 2018 Orient Tech Corporation.All rights Reserved 10 OR-354 A0
